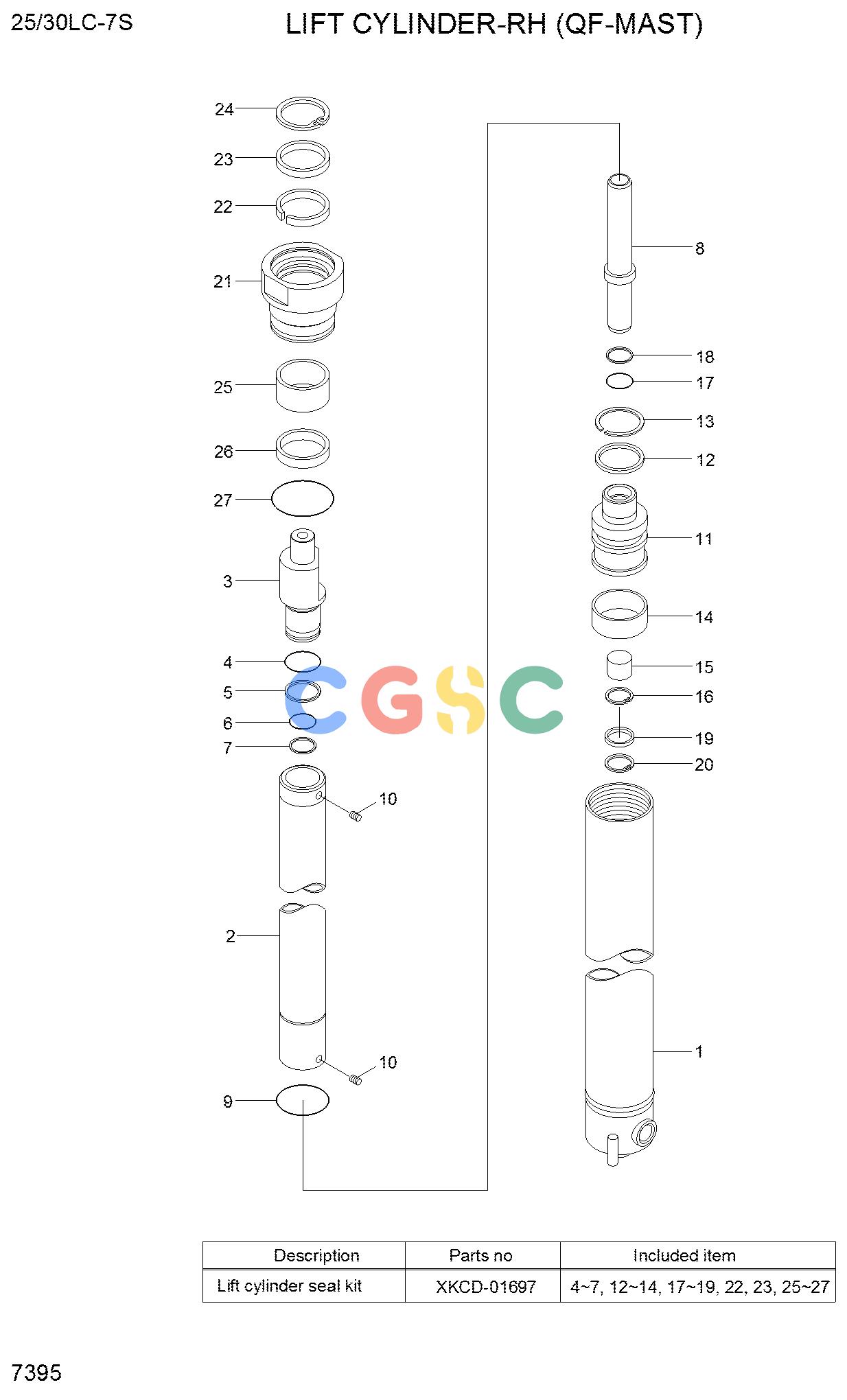

现代零件查询25/30GC-7M LIFT CYLINDER-RH (QF-MAST)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
3CHN-07301
|
[1] |
LIFT CYLINDER-RH
|
|
| . |
3CHN-07311
|
[1] |
LIFT CYLINDER-RH
|
|
| . |
3CHN-07321
|
[1] |
LIFT CYLINDER-RH
|
|
| . |
3CHN-07331
|
[1] |
LIFT CYLINDER-RH
|
|
| . |
3CHN-07341
|
[1] |
LIFT CYLINDER-RH
|
|
| 1. |
XKCD-01686
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-01698
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-01702
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-01706
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-01710
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-01687
|
[1] |
ROD
|
|
| 2. |
XKCD-01699
|
[1] |
ROD
|
|
| 2. |
XKCD-01703
|
[1] |
ROD
|
|
| 2. |
XKCD-01707
|
[1] |
ROD
|
|
| 2. |
XKCD-01711
|
[1] |
ROD
|
|
| 3. |
XKCD-01688
|
[1] |
ROD END
|
|
| K4. |
XKCD-01689
|
[1] |
O-RING
|
|
| K5. |
XKCD-01690
|
[1] |
RING-BACK UP
|
|
| K6. |
XKCD-01691
|
[1] |
O-RING
|
|
| K7. |
XKCD-01692
|
[1] |
RING-BACK UP
|
|
| 8. |
XKCD-01693
|
[1] |
I/ROD ASS'Y
|
|
| 9. |
XKCD-01663
|
[1] |
RING-STOP
|
|
| 10. |
XKCD-01664
|
[1] |
SET SCREW
|
|
| 11. |
XKCD-01694
|
[1] |
PISTON
|
|
| K12. |
XKCD-01666
|
[1] |
RING-BACK UP
|
|
| K13. |
XKCD-01667
|
[1] |
U-PACKING
|
|
| K14. |
XKCD-01668
|
[1] |
RING-WEAR
|
|
| 15. |
XKCD-02024
|
[1] |
VALVE-CHECK
|
|
| 16. |
XKCD-01696
|
[1] |
RING-RETAINING
|
|
| K17. |
XKCD-01691
|
[1] |
O-RING
|
|
| K18. |
XKCD-01692
|
[1] |
RING-BACK UP
|
|
| K19. |
XKCD-00600
|
[1] |
CUSHION SEAL
|
|
| 20. |
XKCD-00601
|
[1] |
RETAINING RING
|
|
| 21. |
XKCD-01669
|
[1] |
ROD COVER
|
|
| K22. |
XKCD-01647
|
[1] |
U-PACKING
|
|
| K23. |
XKCD-01670
|
[1] |
DUST WIPER
|
|
| 24. |
XKCD-00847
|
[1] |
RING-RETAINING
|
|
| K25. |
XKCD-01671
|
[1] |
RING-WEAR
|
|
| K26. |
XKCD-01672
|
[1] |
RING-DUST
|
|
| K27. |
XKCD-00736
|
[1] |
O-RING
|
|
| K. |
XKCD-01697
|
[1] |
SEAL KIT
|
|
