约翰迪尔零件查询310A - BACKHOE, LOADER FRONT AXLE, SPINDLE, AND KNUCKLE ASSEMBLY [01B09]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310A - BACKHOE, LOADER FRONT AXLE, SPINDLE, AND KNUCKLE ASSEMBLY [01B09]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 420 次

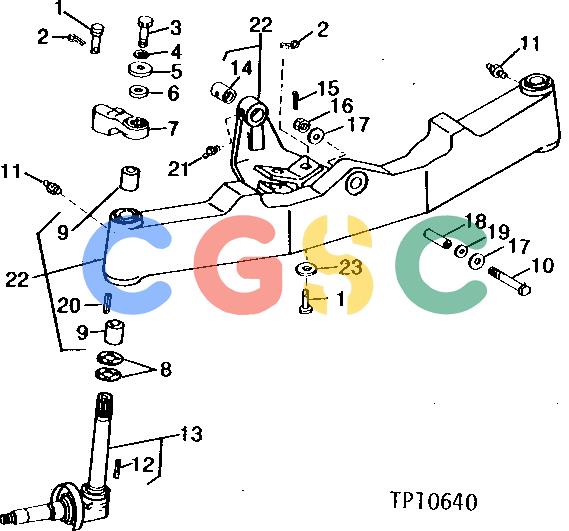

Pos.	Part No	Qty	Parts name	Comments
1.	T48225	[2]	Pin Fastener	STEERING CYLINDER
2.	11M7087	[2]	Cotter Pin	4 X 40 MM
3.	19H1439	[2]	Cap Screw	5/8" X 3"
4.	12H294	[2]	Lock Washer	5/8"
5.	R20135	[2]	Washer
6.	R52383	[4]	Thrust Washer
7.	T77736	[1]	Steering Arm	R.H. (ALSO ORDER AT76136, AS REQUIRED) (SUB FOR T54444, T66936 AND T71748)
7.	T77736	[1]	Steering Arm	R.H. (SUB FOR T71748) (ALSO ORDER AT76136, AS REQUIRED)
7.	........	[1]	Steering Arm	R.H. ( T71745 NO LONGER AVAILABLE) (SUB T77482) (ALSO ORDER AT76136, AS REQUIRED)
7.	T77482	[1]	Steering Arm	R.H. (ALSO ORDER AT76136, AS REQUIRED)
7.	T77737	[1]	Steering Arm	L.H., (NOT ILLUSTRATED) (ALSO ORDER AT76136, AS REQUIRED) (SUB FOR T54445, T66937 AND T71749)
7.	T77737	[1]	Steering Arm	L.H. (SUB FOR T71749) (ALSO ORDER AT76136, AS REQUIRED)
7.	........	[1]	Steering Arm	L.H. ( T71746 NO LONGER AVAILABLE) (SUB T77483) (ALSO ORDER AT76136, AS REQUIRED)
7.	T77483	[1]	Steering Arm	L.H. (ALSO ORDER AT76136, AS REQUIRED)
8.	R49838	[4]	Washer
8.	T76024	[4]	Thrust Washer
9.	R49835	[4]	Bushing
9.	R52188	[4]	Bushing
10.	T25840	[1]	Cap Screw
11.	T162396	[2]	Lubrication Fitting	(SUB FOR JD7798) STRAIGHT, 1/8"
12.	34H308	[2]	Spring Pin	1/4" X 1/2"
12.	R56457	[2]	Dowel Pin
13.	AT76758	[2]	Knuckle	(SUB FOR AT46785) (ALSO ORDER AT76136, AS REQUIRED)
13.	AT74163	[2]	Knuckle	(SUB AT76139) (ALSO ORDER AT76136, AS REQUIRED)
13.	AT76139	[2]	Knuckle
14.	T23170	[1]	Bushing
15.	11M7030	[1]	Cotter Pin	5 X 40 MM
16.	14H534	[1]	Nut	3/4", (SUB FOR 14H902) SLOTTED
17.	T25922	[2]	Washer	(USE IF AVAILABLE)
17.	T151797	[2]	Washer	(SUB FOR T25922 OR T134960)
18.	T21669	[1]	Bushing
19.	T25921	[6]	Shim	0.38 MM (.015")
20.	34H308	[2]	Spring Pin	1/4" X 1/2"
20.	R56457	[2]	Dowel Pin
21.	JD7799	[1]	Lubrication Fitting	1/8"
22.	AT46784	[1]	Front Axle	(MARKED T48221) (SUB AT63366)
22.	AT63366	[1]	Front Axle	(LIFETIME SUPPLY) (MARKED T66815)
22.	AT74162	[1]	Front Axle	(MARKED T76023)
23.	24H448	[1]	Washer	25/32" X 1-1/8" X 0.090"
