约翰迪尔零件查询310A - BACKHOE, LOADER FRONT SUPPORT [01K04]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 546 次

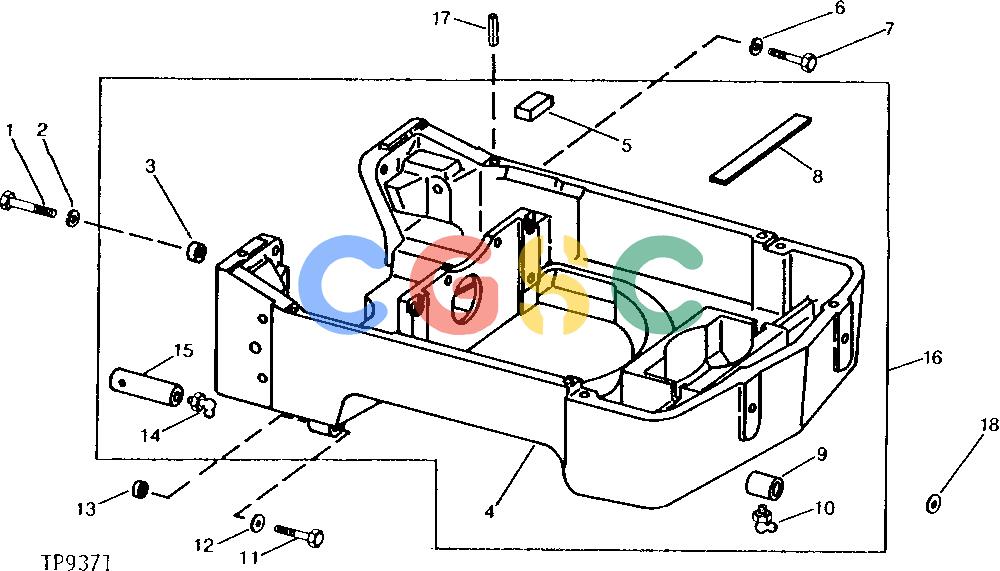

Pos.	Part No	Qty	Parts name	Comments
1.	19H2358	[2]	Cap Screw	9/16" X 2-1/4"
2.	12H317	[2]	Lock Washer	9/16"
3.	T26929	[2]	Bushing	(A)
4.	........	[1]	Support	(A) (SUB AT63367)
5.	T36498	[1]	Barrier	(A)
6.	12H294	[4]	Lock Washer	5/8"
7.	19H3107	[4]	Cap Screw	5/8" X 2-3/4"
8.	T21540	[2]	Pad	(A)
9.	T23118	[1]	Bushing	(A)
10.	JD7799	[1]	Lubrication Fitting	(A) 90°, 1/8"
11.	19H2728	[2]	Cap Screw	3/4" X 3"
12.	12H236	[2]	Lock Washer	3/4"
13.	R54124	[1]	Washer	5.97 MM (.235") (SUB FOR T40983)
13.	T36034	[1]	Washer	6.22 MM (.245")
13.	T36035	[1]	Washer	6.48 MM (.255")
13.	T36036	[1]	Washer	6.73 MM (.265")
13.	T36037	[1]	Washer	6.98 MM (.275")
13.	T36038	[1]	Washer	7.24 MM (.285")
13.	T37417	[1]	Washer	7.49 MM (.295")
13.	T22381	[2]	Washer
14.	JD7781	[1]	Lubrication Fitting	(A) 90°, 1/4", (SUB FOR JD7763, THIS APPLICATION)
14.	JD7781	[1]	Lubrication Fitting
15.	T53267	[1]	Pin Fastener	(A) (FRONT AXLE PIVOT)
16.	AT63367	[1]	Support	(MARKED T72536)
17.	34H340	[4]	Spring Pin	5/16" X 13/16"
18.	C15599	[1]	Washer
...	AT51312	[1]	Support	(MARKED T66816) (SUB AT63367)
