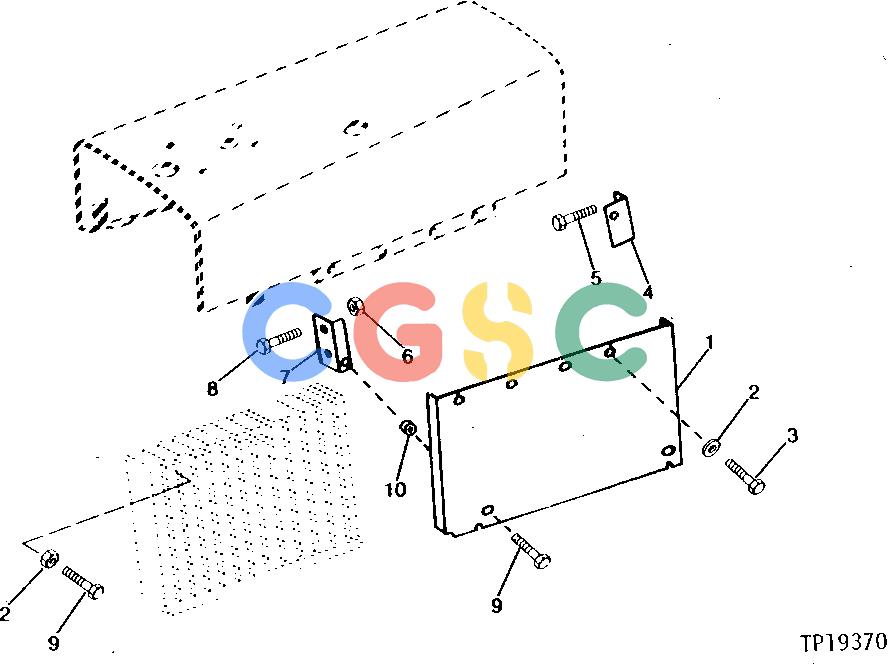

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT72272 | [1] | Shield | (K) |
| 2. | 24H1821 | [8] | Washer | (K) 9/32" X 47/64" X 1/16" |
| 3. | T23876 | [6] | Screw | (K) |
| 4. | AT72273 | [1] | Angle | (K) |
| 5. | 19H2664 | [1] | Cap Screw | (K) 5/16" X 3/4" |
| 6. | 14H812 | [2] | Nut | (K) 3/8" |
| 7. | AT72274 | [1] | Angle | (K) |
| 8. | 19H3031 | [2] | Cap Screw | (K) 3/8" X 2-1/2" |
| 9. | 19H2721 | [2] | Cap Screw | (K) 1/4" X 1-1/2" |
| 10. | 28H1514 | [1] | Spacer | (K) |
