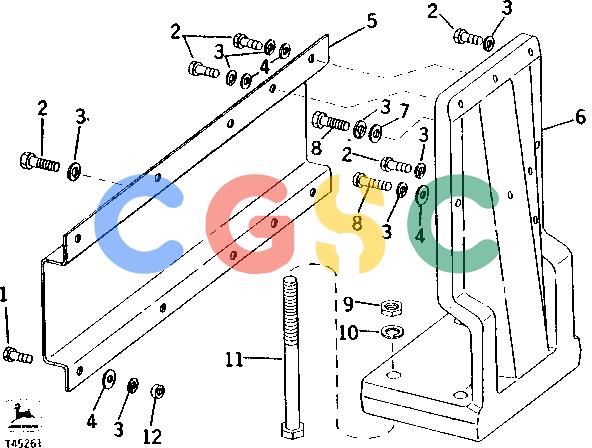

约翰迪尔零件查询310A - BACKHOE, LOADER FENDER SUPPORT AND STIFFENER (WHEN EQUIPPED WITH RIGID MOUNT PLATFORM) [02D19]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H2284
|
[6] |
Cap Screw
|
|
| 2. |
19H2676
|
[7] |
Cap Screw
|
|
| 2. |
19H2676
|
[5] |
Cap Screw
|
|
| 3. |
12H304
|
[15] |
Lock Washer
|
|
| 3. |
12H304
|
[12] |
Lock Washer
|
|
| 4. |
24H1308
|
[11] |
Washer
|
|
| 5. |
........
|
[1] |
Reinforcement
|
|
| 6. |
........
|
[1] |
Support
|
|
| 7. |
24H1309
|
[1] |
Washer
|
|
| 8. |
19H3239
|
[2] |
Cap Screw
|
|
| 9. |
14H836
|
[4] |
Nut
|
|
| 10. |
12H245
|
[4] |
Lock Washer
|
|
| 11. |
08H4487
|
[4] |
Cap Screw
|
|
| 12. |
14H812
|
[6] |
Nut
|
|
