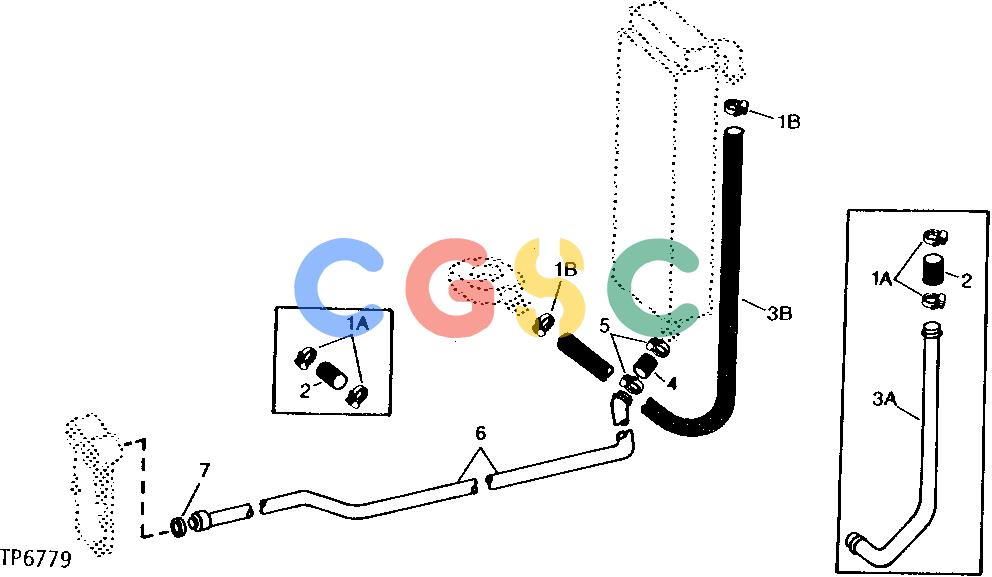

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1A. | AR21839 | [4] | Clamp | (SUB FOR H2742B, THIS APPLICATION) |
| 1B. | AR21839 | [2] | Clamp | (SUB FOR H2742B, THIS APPLICATION) |
| 2. | ........ | [2] | Hydraulic Hose | (SUB T61939 BULK MATERIAL CUT TO LENGTH FOR T35690 AND R58921) |
| 3A. | ........ | [1] | Line | (SUB FOR T34881) (MAKE FROM T61939) |
| 3B. | ........ | [1] | Hydraulic Hose | 19 MM X 559 MM (3/4" X 22") (MAKE FROM T61939) |
| 4. | ........ | [1] | Hydraulic Hose | 19 MM X 57 MM (3/4" X 2-1/4") (MAKE FROM T78497) |
| 5. | AR21839 | [2] | Clamp | (SUB FOR H2742B, THIS APPLICATION) |
| 6. | AT33913 | [1] | Oil Line | |
| 7. | R1662R | [1] | Washer |
