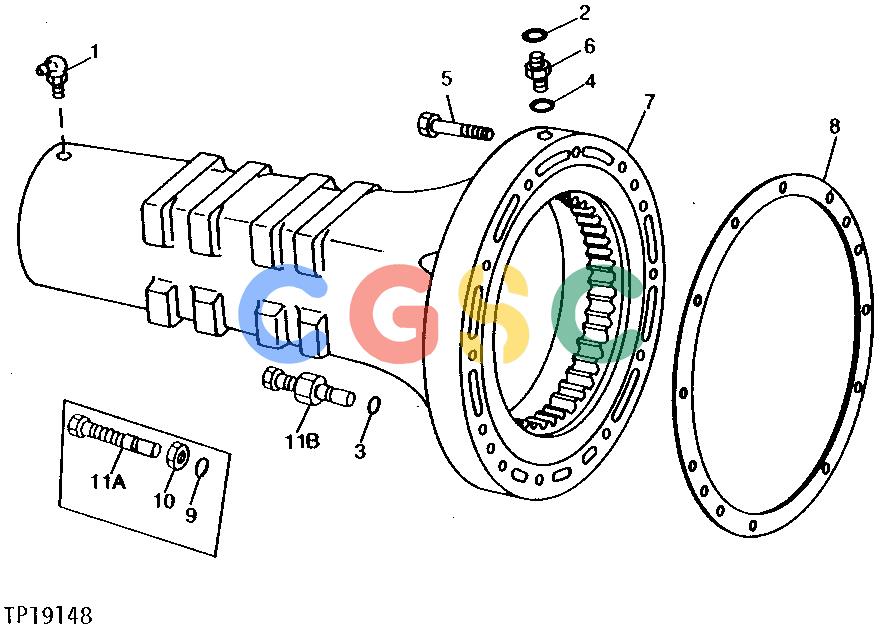

约翰迪尔零件查询310C - BACKHOE, LOADER REAR DRIVE AXLE HOUSING [01B07]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 680 次

格莳国际 工程机械 重卡 农机 汽配
Pos. Part No Qty Parts name Comments
1. JD7799 [1]   Lubrication Fitting      90°, 1/8", (SUB FOR JD7781, THIS APPLICATION)
2. T77814 [1]   O-Ring
3. R26287 [3]   O-Ring
4. R26287 [1]   O-Ring
5. 19H1805 [12]   Cap Screw      1/2" X 2-1/4"
6. 38H1166 [1]   Adapter Fitting
7. AT101717 [1]   Housing      (MARKED T105800) WITH GEAR, (MARKED R57200) (SUB AT106669, (3) AT106666 AND (3) R26287, THIS APPLICATION)
7. AT169364 [1]   Housing      (MARKED T105800 WITH GEAR MARKED R57200 OR T125844) (SUB FOR AT106669 MARKED T105800 WITH GEAR MARKED R57200 OR T125844)
7. T151158 [1]   Ring Gear      (SUB FOR T125844) (MARKED R57200) (NOT ILLUSTRATED)
7. T105931 [3]   Dowel Pin      (NOT ILLUSTRATED) (FINAL DRIVE GEAR TO AXLE HOUSING)
8. R98915 [1]   Gasket      (SUB FOR T21419)
9. T105826 [3]   O-Ring
10. 14H846 [3]   Nut      3/8"
11A. T105817 [3]   Screw      (SUB AT129199)
11B. AT129199 [3]   Screw      (SUB FOR AT106666)
11B. T84345 [AR]   Tool      (BRAKE ADJUSTMENT) (NOT ILLUSTRATED)
