约翰迪尔零件查询310C - BACKHOE, LOADER STEERING HOUSING AND ARM (MECHANICAL FRONT WHEEL DRIVE) (SERIAL NO. -737487) [01C03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 679 次

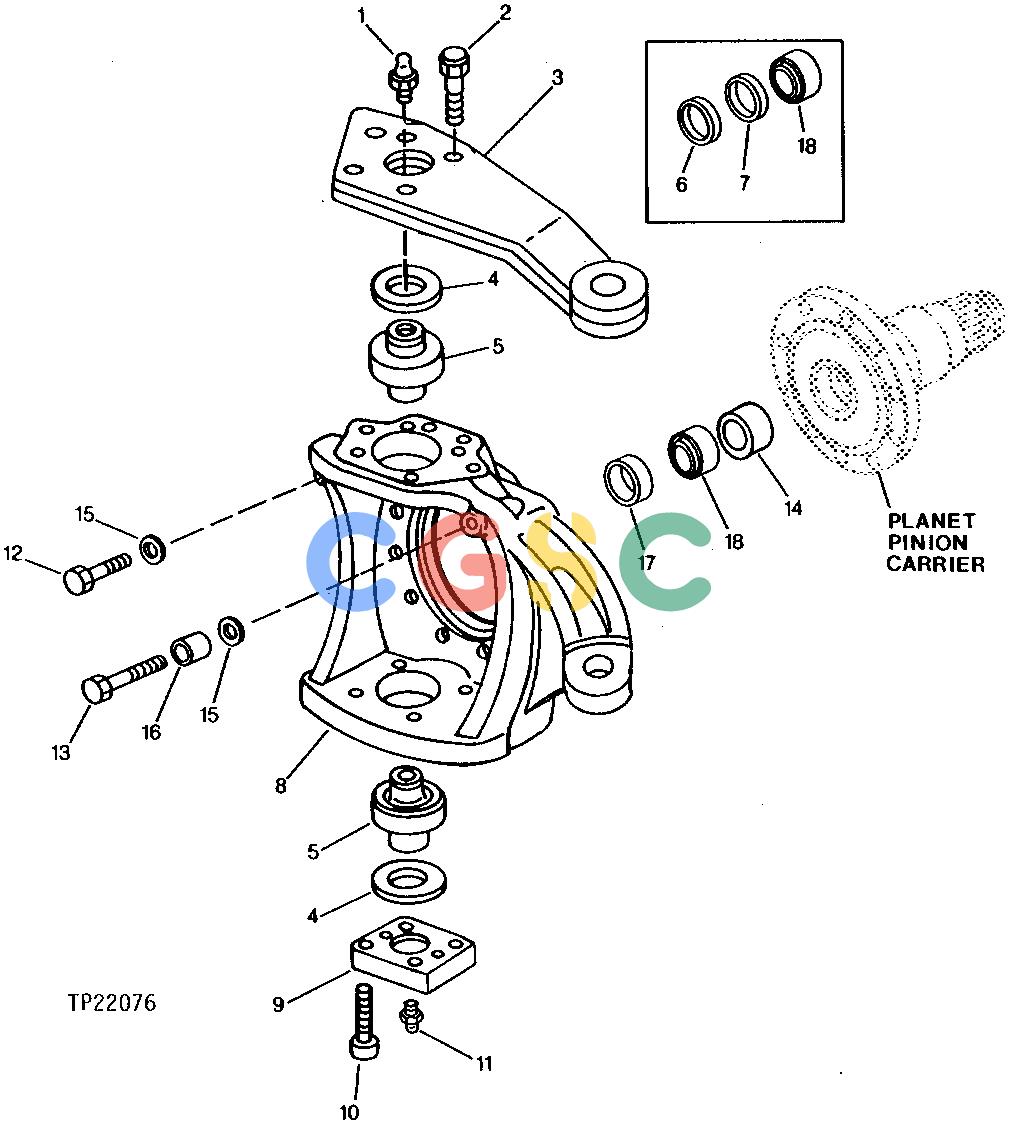

Pos.	Part No	Qty	Parts name	Comments
1.	58M5574	[2]	Lubrication Fitting	8 X 1MM
2.	19M7770	[6]	Screw	M14 X 50
2.	19M5827	[4]	Cap Screw	M14 X 30, L.H. (NOT ILLUSTRATED)
3.	L37864	[1]	Arm	(USE WITH R.H. ONLY) (USE WITH TWO STEERING CYLINDERS)
3.	L35765	[1]	Arm	(NOT ILLUSTRATED) (USE WITH ONE STEERING CYLINDER)
3.	L35743	[1]	Cover	(USE WITH L.H. ONLY) (NOT ILLUSTRATED)
4.	L35746	[AR]	Washer	3.2MM (.126")
4.	L35747	[AR]	Washer	3.1MM (.122")
4.	L35748	[AR]	Washer	3.0MM (.118")
4.	L35749	[AR]	Washer	2.9MM (.114")
4.	L35750	[AR]	Washer	2.8MM (.110")
4.	L35751	[AR]	Washer	2.7MM (.106")
4.	L35752	[AR]	Washer	2.6MM (.102")
4.	L35753	[AR]	Washer	3.3MM (.130")
4.	L35754	[AR]	Washer	3.15MM (.124")
4.	L35755	[AR]	Washer	3.05MM (.120")
4.	L35756	[AR]	Washer	2.95MM (.116")
4.	L35757	[AR]	Washer	2.85MM (.112")
4.	L35758	[AR]	Washer	2.75MM (.108")
5.	L35745	[2]	Kingpin
6.	........	[1]	Seal	(SUB AT113922 FOR L35761)
7.	........	[1]	Ring	(SUB AT113922 FOR T78878)
8.	T77439	[1]	Housing	L.H. (NOT ILLUSTRATED)
8.	T77440	[1]	Housing	R.H.
9.	T77441	[2]	Cover
10.	19M5827	[8]	Cap Screw	8 X 1MM
11.	58M5574	[2]	Lubrication Fitting
12.	19M6424	[1]	Cap Screw	M12 X 30
13.	........	[1]	Cap Screw	( 19M7006 - NO LONGER AVAILABLE)
14.	L35738	[2]	Bushing	L.H. (NOT ILLUSTRATED)
15.	24M7240	[AR]	Washer	13 X 25 X 3 MM, 3.1 MM (.120")
15.	24M7047	[AR]	Washer	13 X 24 X 2.500 MM
15.	24H1340	[AR]	Washer	33/64" X 7/8" X 0.075"
15.	24H1338	[AR]	Washer	33/64" X 7/8" X 0.048"
16.	28H3353	[1]	Bushing
17.	AT113922	[1]	Cap
18.	AL32996	[4]	Seal	(SUB FOR T77438)
