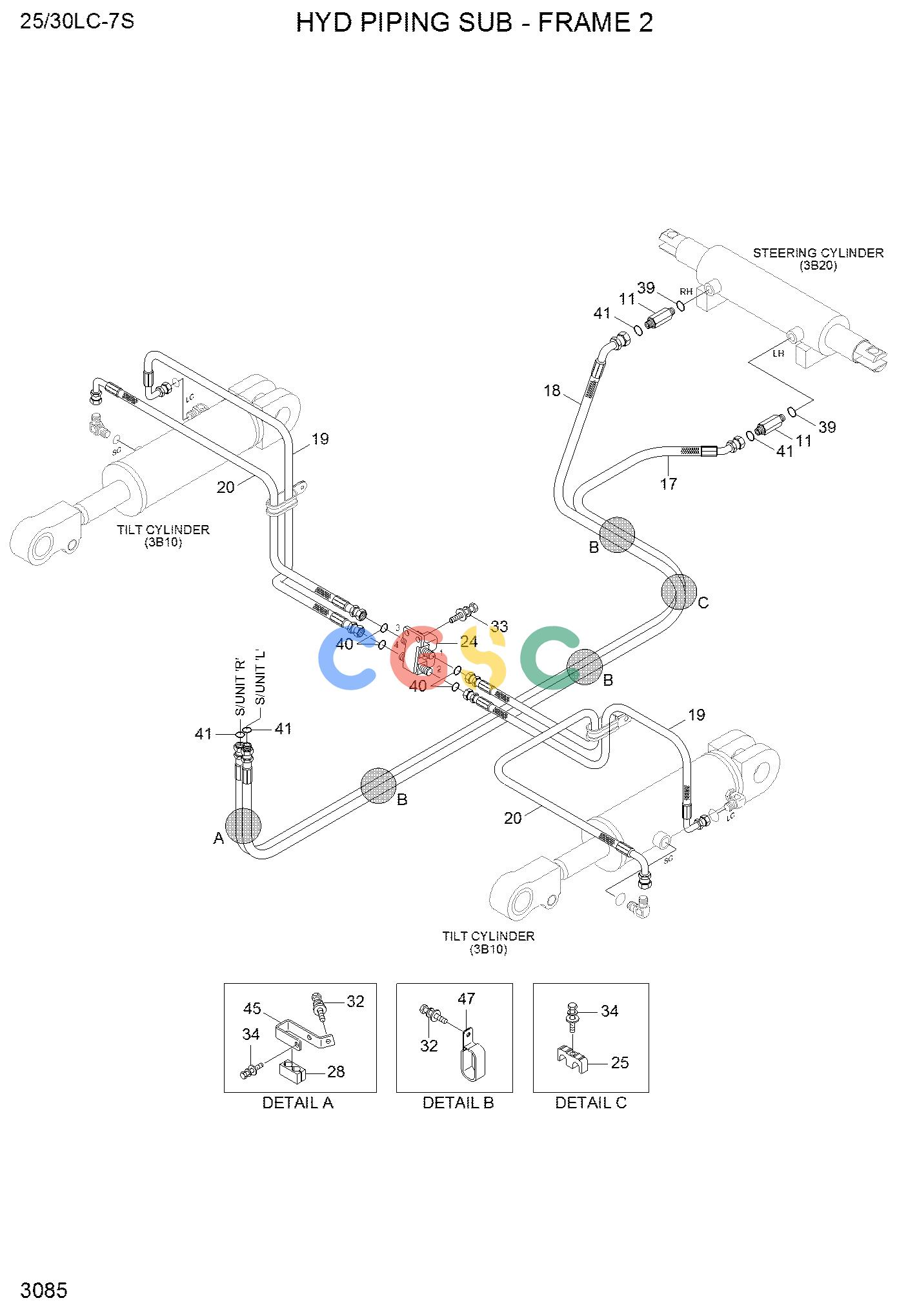

现代零件查询25/30GC-7S HYD PIPING SUB-FRAME 2EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 11. |
31FN-10050
|
[2] |
CONNECTOR-LONG
|
|
| 17. |
35HC-10012
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 18. |
35HC-10060
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 19. |
P933-044012
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 20. |
P933-044011
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 24. |
31HA-70012
|
[1] |
TEE BLOCK WA
|
|
| 25. |
31HH-10020
|
[1] |
CLAMP-HOSE
|
|
| 28. |
31FA-60020
|
[1] |
RUBBER
|
|
| 32. |
S035-082036
|
[4] |
BOLT-W/WASHER
|
|
| 33. |
S035-082526
|
[2] |
BOLT-W/WASHER
|
|
| 34. |
S035-084026
|
[2] |
BOLT-W/WASHER
|
|
| 39. |
S611-012001
|
[2] |
O-RING
|
|
| 40. |
S621-011001
|
[4] |
O-RING
|
|
| 41. |
S621-012001
|
[4] |
O-RING
|
|
| 45. |
35HF-10051
|
[1] |
CLAMP-HOSE
|
|
| 47. |
37HN-20300
|
[3] |
CLAMP-HOSE
|
|
