约翰迪尔零件查询310E - BACKHOE, LOADER Hydraulic And Transmission Oil Coolers (With And Without Air Conditioning)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 766 次

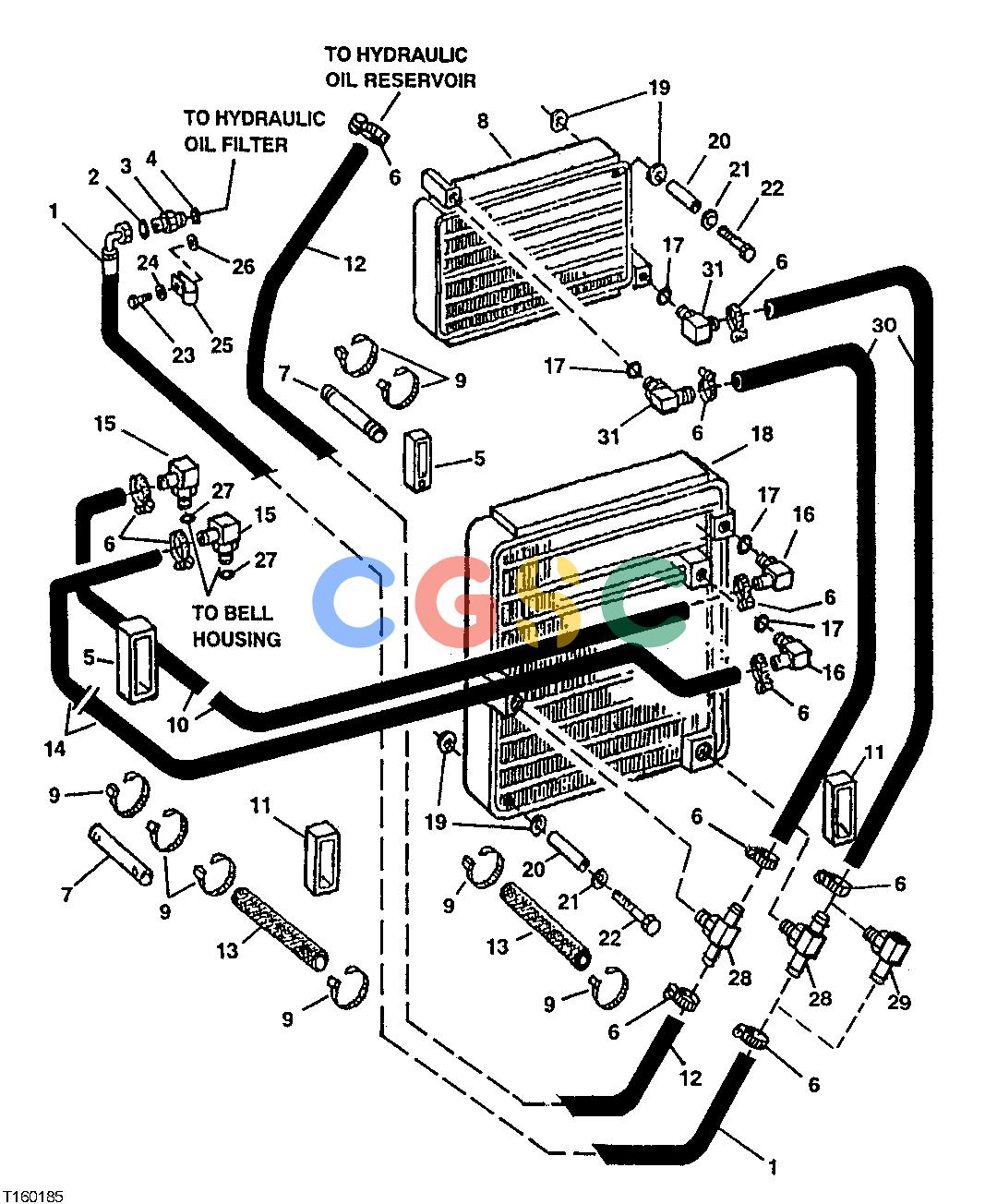

Pos.	Part No	Qty	Parts name	Comments
1.	AT186173	[1]	Hydraulic Hose - Fabricate	BASE COOLING SUB FOR AT172862 AND AT182501
1.	AT175375	[1]	Hydraulic Hose	HIGH AMBIENT
2.	T77932	[1]	O-Ring
2.	T77858	[1]	O-Ring	HIGH AMBIENT
3.	38H1329	[1]	Adapter Fitting
3.	38H1163	[1]	Adapter Fitting	HIGH AMBIENT
4.	U12547	[1]	O-Ring
5.	T158476	[2]	Grommet
6.	RE65978	[11]	Clamp
7.	T161464	[2]	Sleeve	POLYURETHANE
8.	AT186929	[1]	Oil Cooler	SECONDARY
9.	R44302	[2]	Tie Band
9.	H77698	[4]	Tie Band
10.	........	[1]	Hose	MAKE FROM T78497 BULK MATERIAL, CTL 12 FT.
11.	T158477	[2]	Grommet
12.	T166228	[1]	Hydraulic Hose - Fabricate
13.	T161463	[2]	Hose Guard	FABRIC
14.	........	[1]	Hose	MF T78497 CTL 11.5 FT
15.	AH64349	[2]	Hose Fitting	SUB FOR AT118619, THIS APPLICATION
16.	AH64349	[2]	Hose Fitting
17.	R26906	[4]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
18.	AT178689	[1]	Oil Cooler	BASE
19.	T158424	[16]	Washer
20.	N117290	[8]	Spacer	10.338 X 15.875 X 83.820 MM (0.407" X 5/8" X 3.300")
21.	24M7101	[8]	Washer	11 X 34 X 3 MM
22.	19M8093	[8]	Cap Screw	M10 X 100
23.	19M7572	[1]	Cap Screw	M10 X 45
24.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
25.	AH96317	[1]	Clip
26.	28H3381	[1]	Spacer	0.493" X 0.675" X 5/8"
27.	R26375	[2]	O-Ring
28.	AT187427	[2]	Tee Fitting
29.	AH64349	[2]	Hose Fitting	90° BASE COOLING
30.	T167328	[2]	Hose
31.	AH75158	[2]	Fitting
