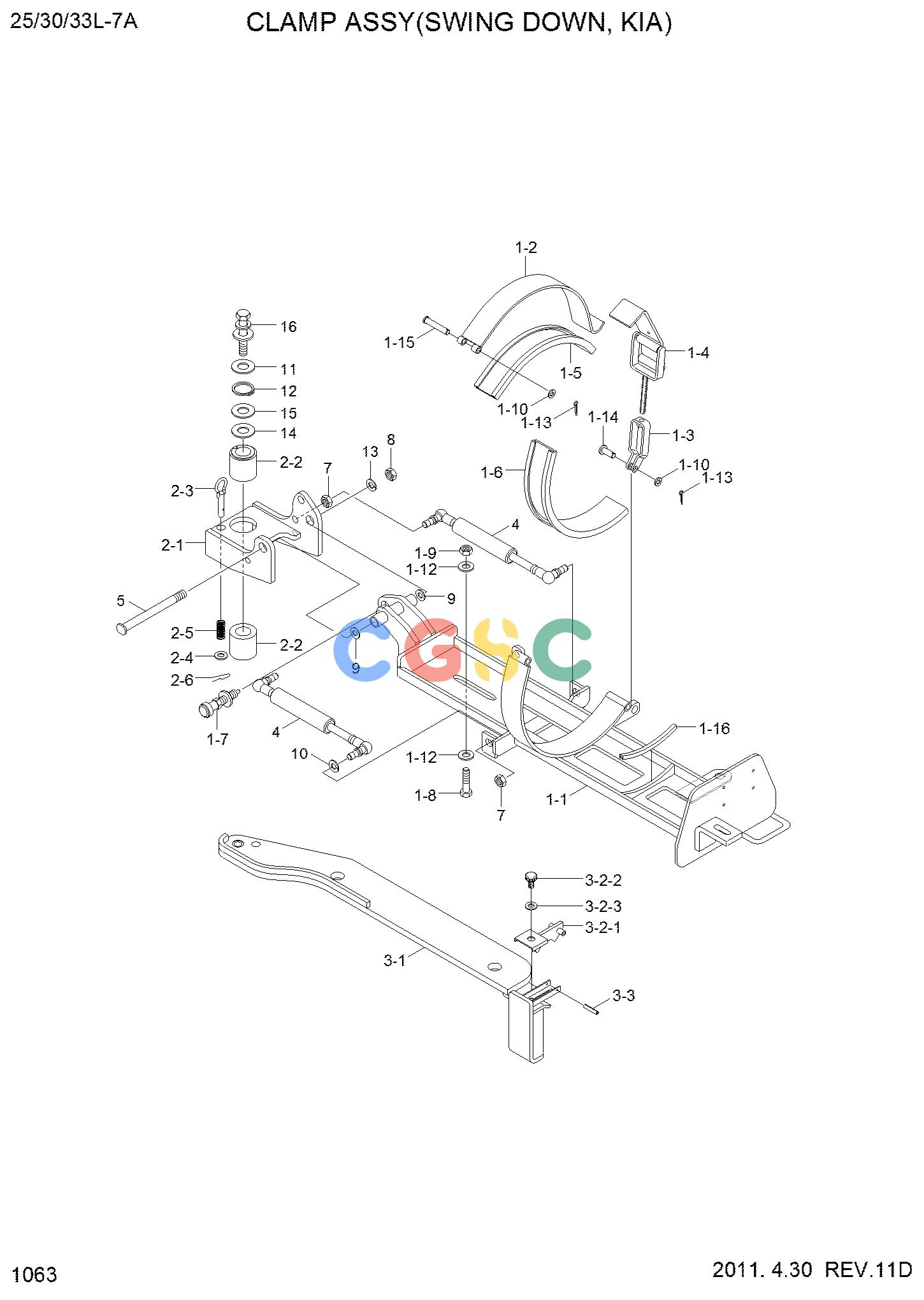

现代零件查询25/30/33L-7A CLAMP ASSY(SWING DOWN,KIA)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
507 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
17HF-50502
|
[1] |
CLAMP SUB ASSY
|
|
| 1-1. |
17HF-50531
|
[1] |
CLAMP WA
|
|
| 1-2. |
F22130250
|
[1] |
CLAMP BAND-UPPER
|
|
| 1-3. |
F22130150
|
[1] |
YOKE
|
|
| 1-4. |
F22130140
|
[1] |
CLAMP ASSY
|
|
| 1-5. |
F22130280
|
[1] |
RUBBER-UPPER
|
|
| 1-6. |
F22130290
|
[1] |
RUBBER-BOTTOM
|
|
| 1-7. |
31FY-40670
|
[1] |
PLUNGER
|
|
| 1-8. |
S017-100606
|
[1] |
BOLT-HEX
|
|
| 1-9. |
S205-10200B
|
[1] |
NUT-HEX
|
|
| 1-10. |
S403-08200B
|
[2] |
WASHER-PLAIN
|
|
| 1-12. |
S403-10100B
|
[2] |
WASHER-PLAIN
|
|
| 1-13. |
S461-250182
|
[2] |
PIN-SPLIT
|
|
| 1-14. |
S491-100302
|
[1] |
PIN-CLEVIS
|
|
| 1-15. |
F22130160
|
[1] |
PIN
|
|
| 2. |
17HF-50510
|
[1] |
HINGE ASSY
|
|
| 2-1. |
17HF-50520
|
[1] |
BRACKET WA-HINGE
|
|
| 2-2. |
S741-262038
|
[2] |
FLANGE DU BUSH
|
|
| 2-3. |
17HF-57110
|
[1] |
LOCK PIN
|
|
| 2-4. |
S403-12100B
|
[1] |
WASHER-PLAIN
|
|
| 2-5. |
FBC0900610-01
|
[1] |
SPRING
|
|
| 2-6. |
S461-250182
|
[1] |
PIN-SPLIT
|
|
| 3. |
17HF-50541
|
[1] |
CRADLE
|
|
| 3-1. |
17HF-50551
|
[1] |
BASE PLATE WA
|
|
| N3-2. |
FBC0900100-02
|
[1] |
LOCK BRACKET ASSY
|
|
| 3-2-1. |
FBC0900120-02
|
[1] |
BRACKET-LP TANK LOCK
|
|
| 3-2-2. |
FBC0900110-01
|
[1] |
KNOB
|
|
| 3-2-3. |
S403-08200B
|
[1] |
WASHER-PLAIN
|
|
| 3-3. |
S471-400454
|
[1] |
PIN-SPRING
|
|
| 4. |
11HF-50330
|
[2] |
GAS SPRING
|
|
| 5. |
S017-161406
|
[1] |
BOLT-HEX
|
|
| 7. |
S205-10200B
|
[4] |
NUT-HEX
|
|
| 8. |
S205-16100B
|
[1] |
NUT-HEX
|
|
| 9. |
S403-161006
|
[2] |
WASHER-PLAIN
|
|
| 10. |
S411-100006
|
[2] |
WASHER-SPRING
|
|
| 11. |
61FA-18500-DA
|
[1] |
WASHER-SPECIAL
|
|
| 12. |
S601-026004
|
[1] |
RING-RETAINING
|
|
| 13. |
S411-160006
|
[1] |
WASHER-SPRING
|
|
| 14. |
37B9AE2020
|
[1] |
SHIM(0.5T)
|
|
| 15. |
37B9AE2030
|
[1] |
SHIM(1.0T)
|
|
| 16. |
S035-082026
|
[1] |
BOLT-W/WASHER
|
|
