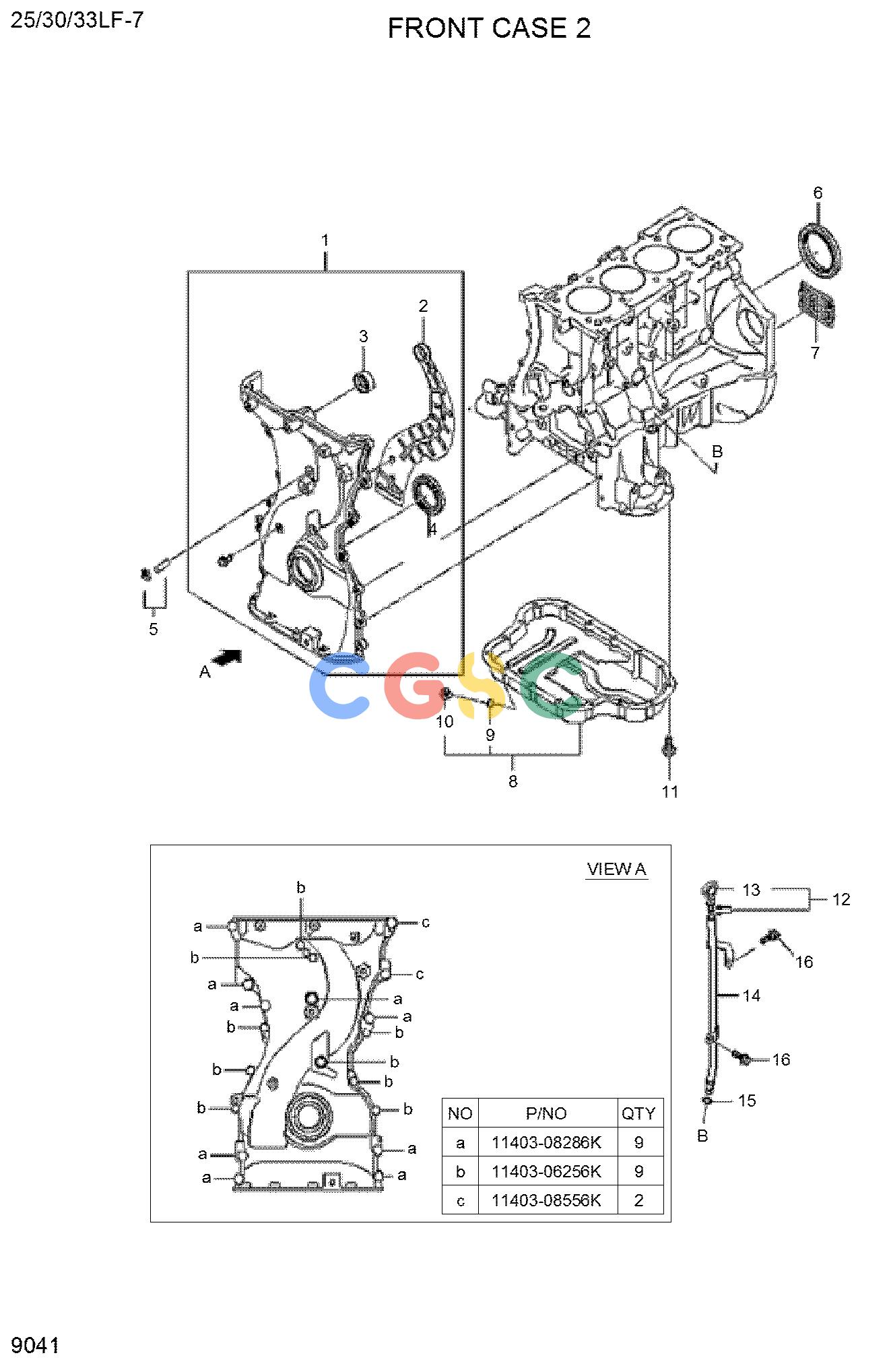

现代零件查询25/30/33L-7A FRONT CASE 2EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XKBH-00027
|
[1] |
COVER ASSY-TIMING CHAIN
|
|
| 2. |
XKBH-00028
|
[1] |
PLATE-TIMING
|
|
| 3. |
XKBH-00029
|
[1] |
CAP-SEALING
|
|
| 4. |
XKBH-00030
|
[1] |
SEAL-FR OIL
|
|
| 5. |
XKBH-00031
|
[1] |
PLUG ASSY-NIPPLE
|
|
| 6. |
XKBH-00032
|
[1] |
OIL SEAL-REAR
|
|
| 7. |
XKBH-00033
|
[1] |
COVER-ACCESS HOLE
|
|
| 8. |
XKBH-00034
|
[1] |
PAN ASSY-OIL,LWR
|
|
| 9. |
XKBH-00035
|
[1] |
GASKET-OIL DRAIN PLUG
|
|
| 10. |
XKBH-00036
|
[1] |
PLUG-OIL DRAIN
|
|
| 11. |
XKBH-00037
|
[1] |
BOLT-FLANGE(6X12)
|
|
| 12. |
XKBH-00038
|
[1] |
ROD ASSY-OIL LEVEL GAGE
|
|
| 13. |
XKBH-00039
|
[2] |
O-RING
|
|
| N14. |
XKBH-03015
|
[1] |
GUIDE-OIL LEVEL GAUGE
|
|
| 15. |
XKBH-00042
|
[1] |
O-RING
|
|
| 16. |
XKBH-00043
|
[2] |
BOLT-FLANGE
|
|
