约翰迪尔零件查询310G - BACKHOE, LOADER Steering Hydraulics (w/o MFWD)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 364 次

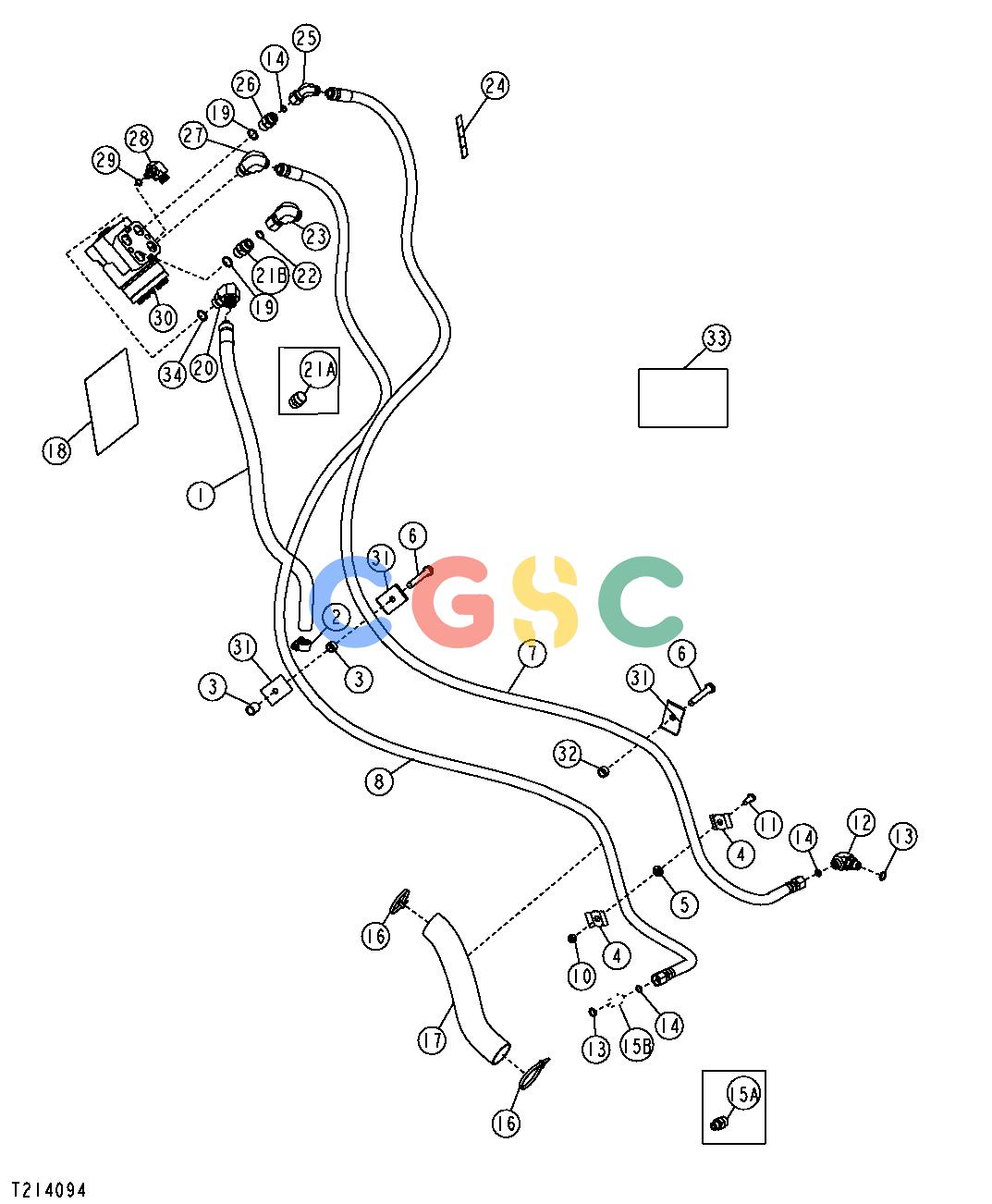

Pos.	Part No	Qty	Parts name	Comments
1.	AT184900	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1043 AND T77857)
1.	62H1043	[1]	Adapter Fitting	(STC™)
2.	TY22464	[1]	Clamp	(SUB FOR AR21836)
3.	28H3383	[1]	Bushing	0.493" X 0.675" X 3/4"
3.	28H3394	[1]	Bushing	0.493" X 0.675" X 1/2"
3.	28H3421	[1]	Spacer	0.493" X 0.675" X 7/16"
4.	R27491	[2]	Clamp
5.	24M7106	[1]	Washer	10 X 18 X 2.500 MM
6.	19M8412	[2]	Screw	M10 X 55 (SUB FOR T184328)
6.	19M7742	[2]	Cap Screw	M10 X 65
6.	19M8600	[2]	Cap Screw	M10 X 50
7.	AT184903	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
7.	AT197852	[1]	Hydraulic Hose - Fabricate	9/16" X 2540 MM (100") X 9/16" (ALSO ORDER 62H1042 AND T77613)
7.	62H1042	[1]	Adapter Fitting	STC™
8.	AT184902	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
8.	62H1042	[1]	Adapter Fitting	(STC™)
9.	28H3394	[1]	Bushing	0.493" X 0.675" X 1/2"
10.	14M7273	[1]	Nut	M8
11.	19M7881	[1]	Screw	M8 X 20
12.	38H1004	[1]	Elbow Fitting
13.	R26448	[2]	O-Ring
14.	T77613	[3]	O-Ring
15A.	38H1160	[1]	Adapter Fitting
15B.	38H1004	[AR]	Elbow Fitting	3/8IN.
15B.	38H1010	[AR]	Elbow Fitting	1/2IN.
16.	R44302	[2]	Tie Band
17.	........	[1]	Sleeve	(CTL) 254 MM (10IN.) (MF T78606)
18.	T184319	[1]	Label	HOSE
18.	T191425	[1]	Label
19.	R26375	[4]	O-Ring
20.	AT187668	[1]	Elbow Fitting
20.	38H1005	[1]	Elbow Fitting
21A.	AT141527	[1]	Check Valve	(INCLUDES R26375 AND T77857)
21A.	T77857	[1]	O-Ring
21A.	R26375	[1]	O-Ring
21B.	38H1161	[1]	Adapter Fitting
22.	T77857	[1]	O-Ring
23.	AT195203	[1]	Elbow Fitting	(SUB FOR AT188182)
24.	T184320	[1]	Label	HOSE
25.	AT195201	[1]	Elbow Fitting	(SUB FOR AT188009)
26.	38H1171	[1]	Adapter Fitting
27.	AT195202	[1]	Elbow Fitting	(SUB FOR AT188011)
28.	AT188010	[1]	Elbow Fitting
29.	R28782	[1]	O-Ring
30.	AT318271	[1]	Manual Hydraulic Valve	(SUB FOR AT173411)
30.	AT318271	[1]	Manual Hydraulic Valve	(SUB FOR AT198089 AND AT307738)
30.	AT316249	[1]	Seal Kit	(SUB FOR AT198090)
31.	R27491	[4]	Clamp
31.	R46919	[3]	Half Clamp
32.	24M7106	[2]	Washer	10 X 18 X 2.500 MM
32.	28H3412	[2]	Washer	0.493" X 0.675" X 3/8"
32.	T166773	[1]	Washer
33.	AT193365	[1]	Seal Kit	STC REPAIR (-06)
33.	AT193366	[1]	Seal Kit	STC REPAIR (-08)
34.	R26375	[1]	O-Ring
34.	T77857	[1]	O-Ring
