约翰迪尔零件查询310G - BACKHOE, LOADER Main Frame w/ StabilizerEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 327 次

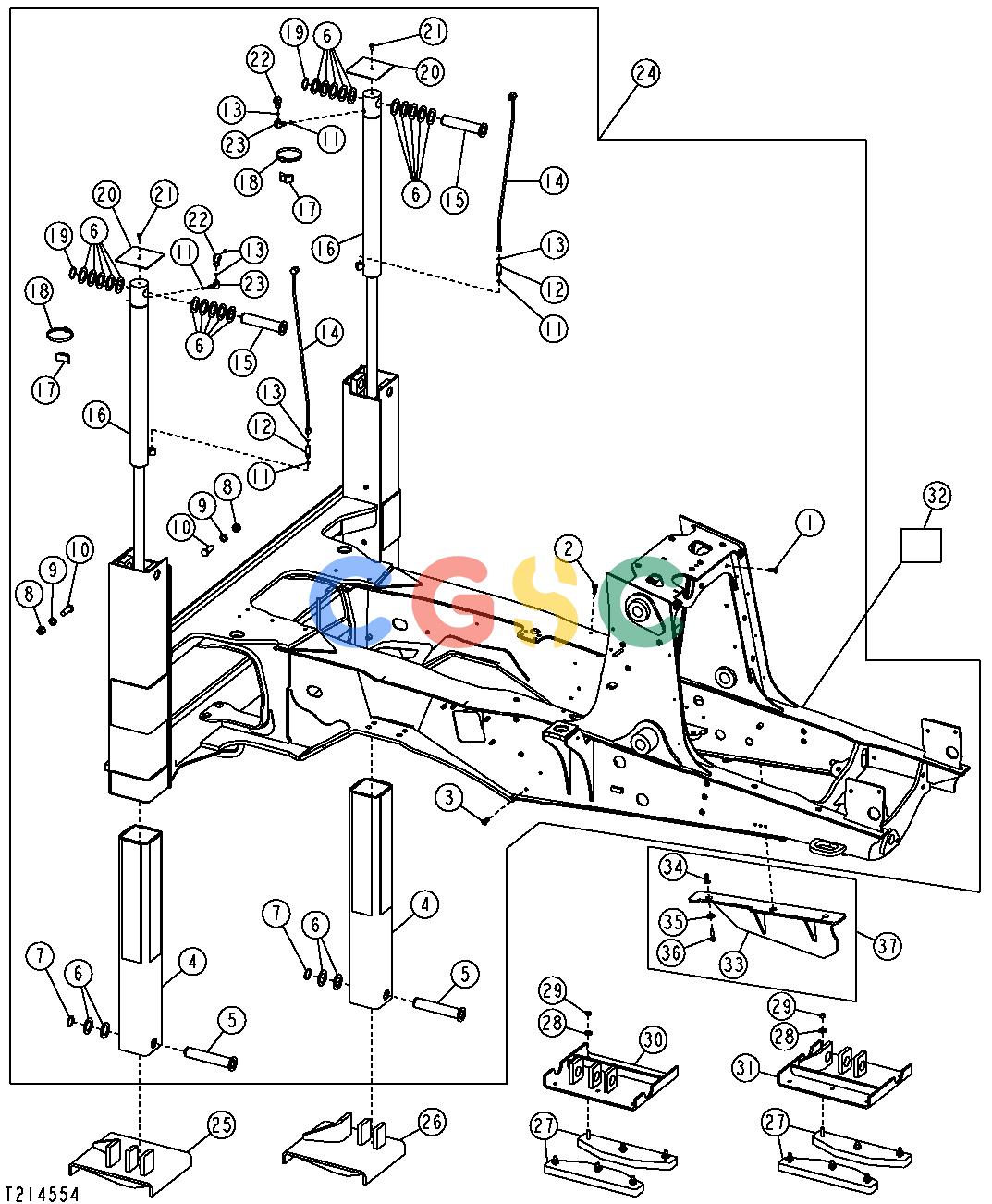

Pos.	Part No	Qty	Parts name	Comments
1.	T148410	[18]	Nut	M10
2.	T148411	[7]	Nut	M10
3.	T148409	[23]	Nut	M10
4.	AT145849	[2]	Arm
5.	AT186254	[2]	Pin
6.	24H1571	[24]	Washer	1-25/32" X 2-7/8" X 0.120"
7.	U12167	[2]	Snap Ring
8.	14M7277	[2]	Nut	M20
9.	14M7335	[2]	Nut	M20
10.	19M8002	[2]	Cap Screw	M20 X 55
11.	R26448	[4]	O-Ring
12.	38H1160	[2]	Adapter Fitting
12.	38H1212	[2]	Adapter Fitting
13.	T77613	[2]	O-Ring
14.	AT178683	[2]	Line
15.	AT135084	[2]	Pin Fastener
16.	AH211348	[2]	Hydraulic Cylinder	(SUB FOR AH154788)
17.	T181801	[2]	Clamp	(SUB FOR T101624 APPL)
18.	AR21842	[2]	Clamp
19.	40M7180	[2]	Snap Ring
20.	T126013	[2]	Strap
21.	19M8324	[2]	Cap Screw	M10 X 16
22.	38H1094	[2]	Elbow Fitting
23.	38H1004	[2]	Elbow Fitting
24.	AT197255	[1]	Main Frame	CONVENIENCE ASSEMBLY (ALSO ORDER T146102 ) (SUB FOR AT186630 AND AT197256)
25.	AT172419	[1]	Stabilizer	DIRT PAD (LH)
26.	AT172420	[1]	Stabilizer	DIRT PAD (RH)
27.	AT195669	[4]	Street Pad
28.	T29342	[12]	Washer
29.	14H809	[12]	Nut	1/2"
30.	AT182588	[1]	Stabilizer	STREET PAD (LH)
31.	AT182587	[1]	Stabilizer	STREET PAD (RH)
32.	T146102	[1]	Label	DANGER - BYPASS START
33.	AT315263	[1]	Guard
34.	T148410	[3]	Nut	M10
35.	24M7226	[3]	Washer	13 X 35 X 5 MM
36.	19M7806	[3]	Screw	M10 X 50
37.	AT323348	[1]	Kit	MFWD GUARD (WHOLE GOODS)
