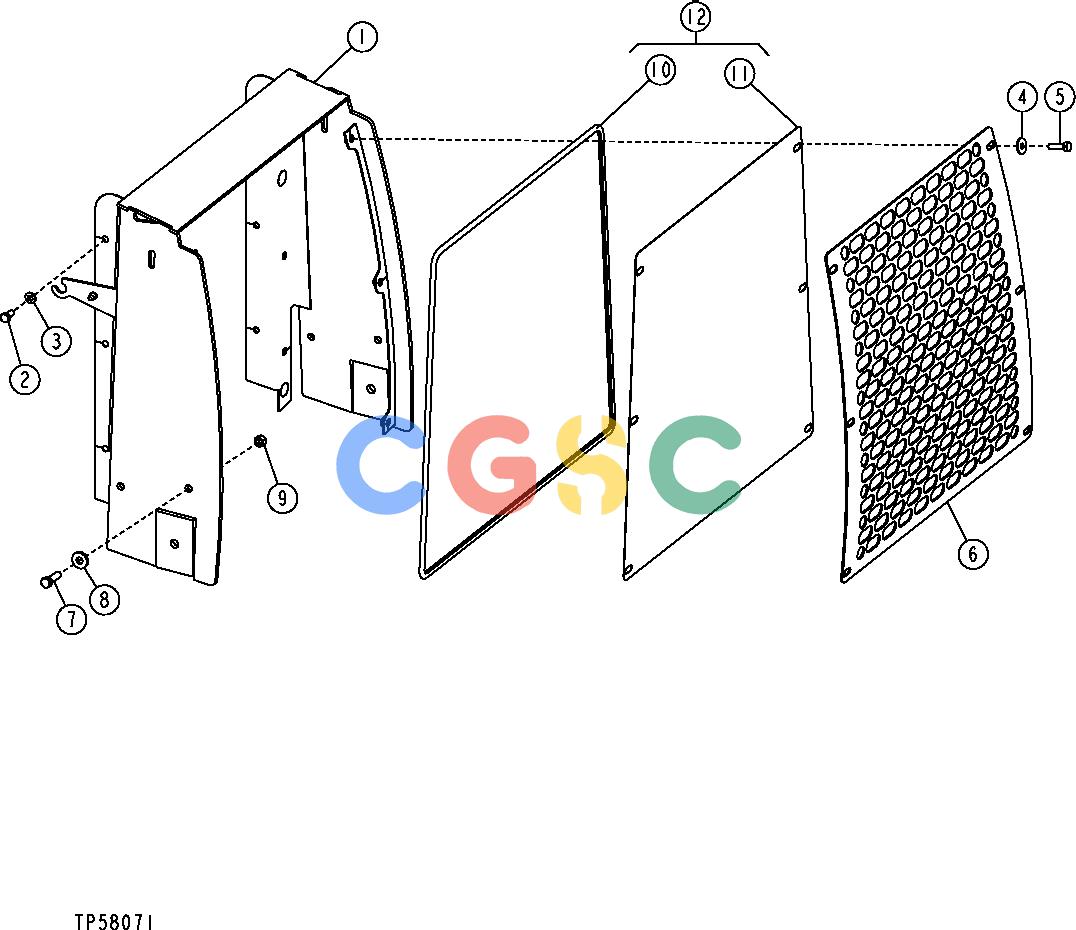

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT197001 | [1] | Grille Kit | (SUB FOR AT185004) |
| 1. | AT195872 | [1] | Frame | |
| 2. | 19M7938 | [6] | Cap Screw | M10 X 20 |
| 3. | 24M7239 | [6] | Washer | 10.700 X 21 X 2.500 MM |
| 4. | 24M7296 | [6] | Washer | 10.500 X 30 X 2.500 MM |
| 5. | 19M7550 | [6] | Cap Screw | M10 X 35 |
| 6. | T217001 | [1] | Grille | (SUB FOR T165896) |
| 7. | 19M7493 | [4] | Cap Screw | M12 X 40 |
| 8. | T29342 | [4] | Washer | |
| 9. | 14M7275 | [4] | Nut | M12 |
| 10. | ........ | [1] | Molding | (CUT TO LENGTH, 8.74 FEET) (MF T58056) |
| 11. | AT189091 | [1] | Screen | TRASH SCREEN |
| 12. | ........ | [1] | Screen | (WHOLE GOODS) (AT189090 NLA) |
