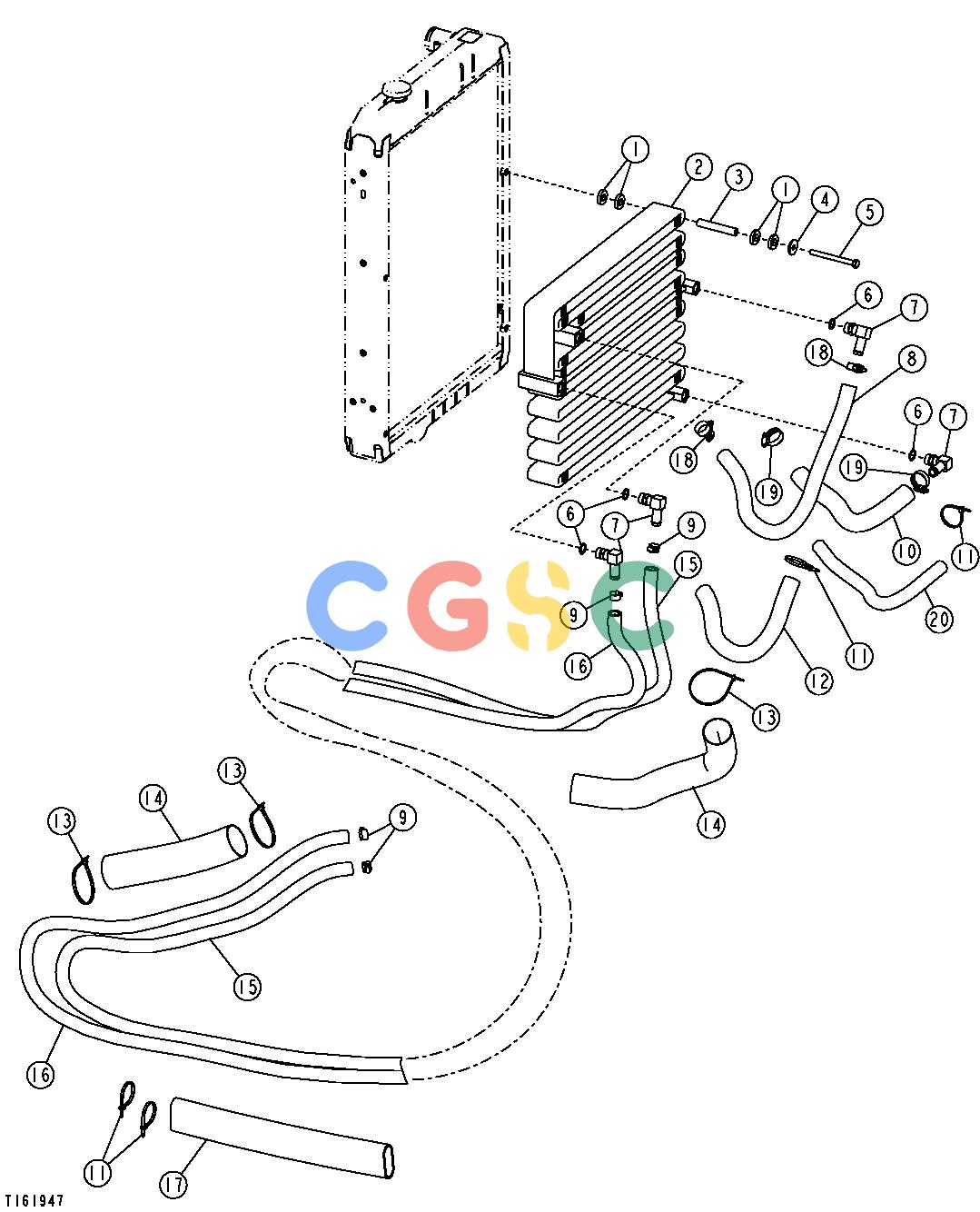

约翰迪尔零件查询310G - BACKHOE, LOADER Hydraulic Oil Cooler and Hoses (W/O Flow Control)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
191 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T158424
|
[16] |
Washer
|
|
| 2. |
AT187869
|
[1] |
Oil Cooler
|
|
| 3. |
B28851
|
[4] |
Spacer
|
|
| 4. |
24M7101
|
[4] |
Washer
|
|
| 5. |
19M8166
|
[4] |
Cap Screw
|
|
| 6. |
R26906
|
[4] |
O-Ring
|
|
| 7. |
AH64349
|
[4] |
Hose Fitting
|
|
| 8. |
........
|
[1] |
Hydraulic Hose
|
|
| 9. |
AT301917
|
[4] |
Hose Clamp
|
|
| 10. |
T191469
|
[1] |
Hose
|
|
| 11. |
R44302
|
[4] |
Tie Band
|
|
| 12. |
T185189
|
[1] |
Hose Guard
|
|
| 13. |
N198516
|
[3] |
Tie Band
|
|
| 14. |
T161463
|
[2] |
Hose Guard
|
|
| 15. |
........
|
[1] |
Hydraulic Hose
|
|
| 16. |
........
|
[1] |
Hydraulic Hose
|
|
| 17. |
........
|
[2] |
Hose Sleeve - Fabricate
|
|
| 18. |
AT301917
|
[4] |
Hose Clamp
|
|
| 19. |
AT300153
|
[2] |
Hose Clamp
|
|
| 20. |
T161463
|
[1] |
Hose Guard
|
|
