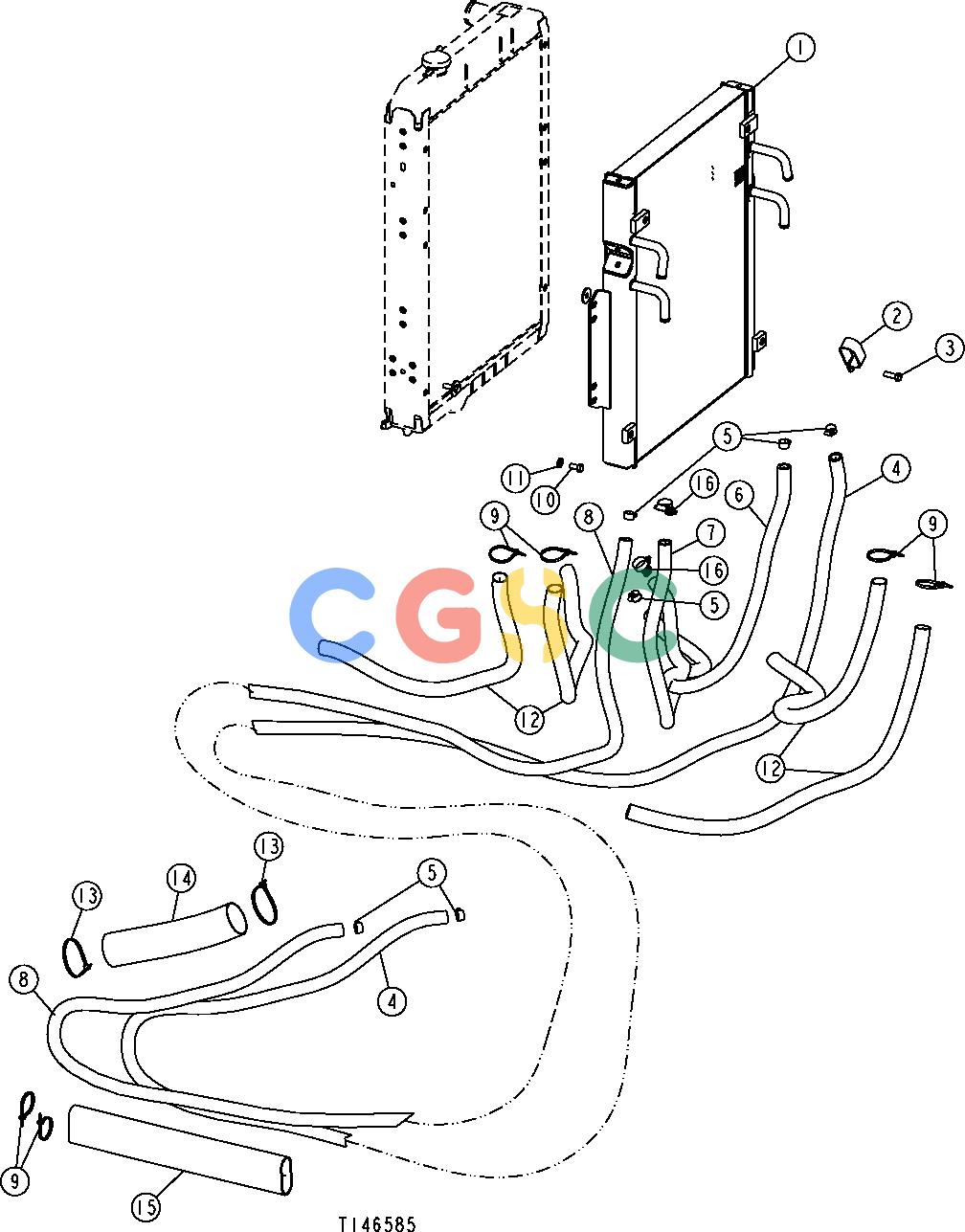

约翰迪尔零件查询310G - BACKHOE, LOADER Hydraulic Oil Cooler and Hoses (Hi-Ambient)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT192656
|
[1] |
Oil Cooler
|
|
| 2. |
T185154
|
[2] |
Clamp
|
|
| 3. |
19M7662
|
[2] |
Cap Screw
|
|
| 4. |
........
|
[1] |
Hydraulic Hose
|
|
| 5. |
AT301917
|
[6] |
Hose Clamp
|
|
| 6. |
........
|
[1] |
Hydraulic Hose
|
|
| 7. |
........
|
[1] |
Hydraulic Hose
|
|
| 8. |
........
|
[1] |
Hydraulic Hose
|
|
| 9. |
R44302
|
[6] |
Tie Band
|
|
| 10. |
19M7402
|
[4] |
Cap Screw
|
|
| 11. |
24M7239
|
[4] |
Washer
|
|
| 12. |
T185089
|
[4] |
Sleeve
|
|
| 13. |
N198516
|
[2] |
Tie Band
|
|
| 14. |
T161463
|
[1] |
Hose Guard
|
|
| 15. |
........
|
[2] |
Hose Sleeve - Fabricate
|
|
| 16. |
AT301917
|
[4] |
Hose Clamp
|
|
