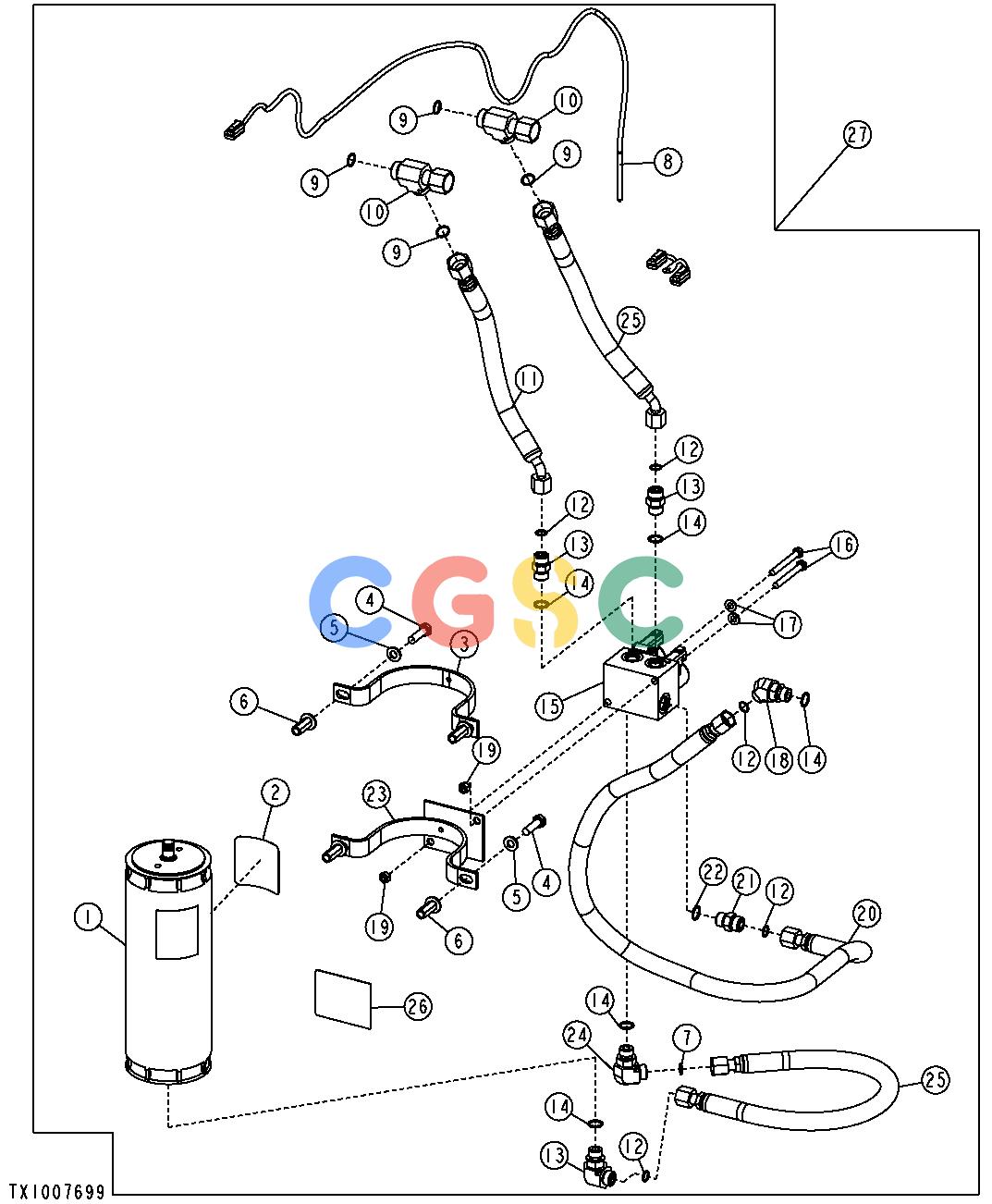

Pos.	Part No	Qty	Parts name	Comments
1.	AT196351	[1]	Hydraulic Accumulator	(SUB FOR AT188819, THIS APPLICATION ) (INCLUDES T225374, T225375 AND T225376)
1.	AT161527	[1]	Seal Kit	NOT ILLUSTRATED
1.	AT161528	[1]	Hyd Actuated Control Valve	NOT ILLUSTRATED
1.	T146481	[1]	Cap	NOT ILLUSTRATED
1.	AT196760	[1]	Valve Kit	NOT ILLUSTRATED SCHRADER VALVE SERVICE
2.	T225374	[1]	Label	WARNING - ACCUMULATOR ENGLISH (SUB FOR T164124 APPL)
2.	........	[1]	Label Kit	FRENCH
2.	........	[1]	Label Kit	SPANISH
3.	T166761	[1]	Clamp
4.	19M7550	[4]	Cap Screw	M10 X 35
5.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
6.	T148409	[4]	Nut	M10
7.	T77932	[1]	O-Ring
8.	AT183590	[1]	Wiring Harness
9.	T77932	[4]	O-Ring
10.	38H1032	[2]	Tee Fitting
11.	AT186898	[1]	Hydraulic Hose - Fabricate
12.	T77857	[5]	O-Ring
13.	38H1161	[3]	Adapter Fitting
14.	R26375	[5]	O-Ring
15.	........	[1]	Solenoid Hydraulic Valve	(SUB AT310818 ) (ALSO ORDER AT199646 AND (2) 19M7663 ) (SUB FOR AT191176, THIS APPLICATION ) (SUB FOR AT198760)
15.	19H3070	[4]	Screw	0.190" X 1-1/4"
15.	AT184161	[1]	Electrical Coil
15.	N203255	[1]	Nut
15.	AT172179	[1]	Seal Kit
16.	19M8402	[2]	Cap Screw	M8 X 65
17.	24M7238	[2]	Washer	8.700 X 17 X 2 MM
18.	38H1046	[1]	Elbow Fitting
19.	14M7273	[2]	Nut	M8
20.	AT188401	[1]	Hydraulic Hose - Fabricate
21.	38H1173	[1]	Adapter Fitting
22.	R26448	[1]	O-Ring
23.	AT189210	[1]	Clamp
24.	38H1405	[1]	Elbow Fitting
25.	AT186899	[2]	Hydraulic Hose - Fabricate
26.	T185145	[2]	Label	RIDE CONTROL
27.	........	[1]	Kit	(WHOLE GOODS) (AT185950 NLA) (INCLUDES AT193881, T162238 AND T70341 ) (SUB FOR AT280742 ) (SUB AT309385 ) (ALSO ORDER (3) 38H1174, 38H1012, (4) R26906 AND (4) T77857)
