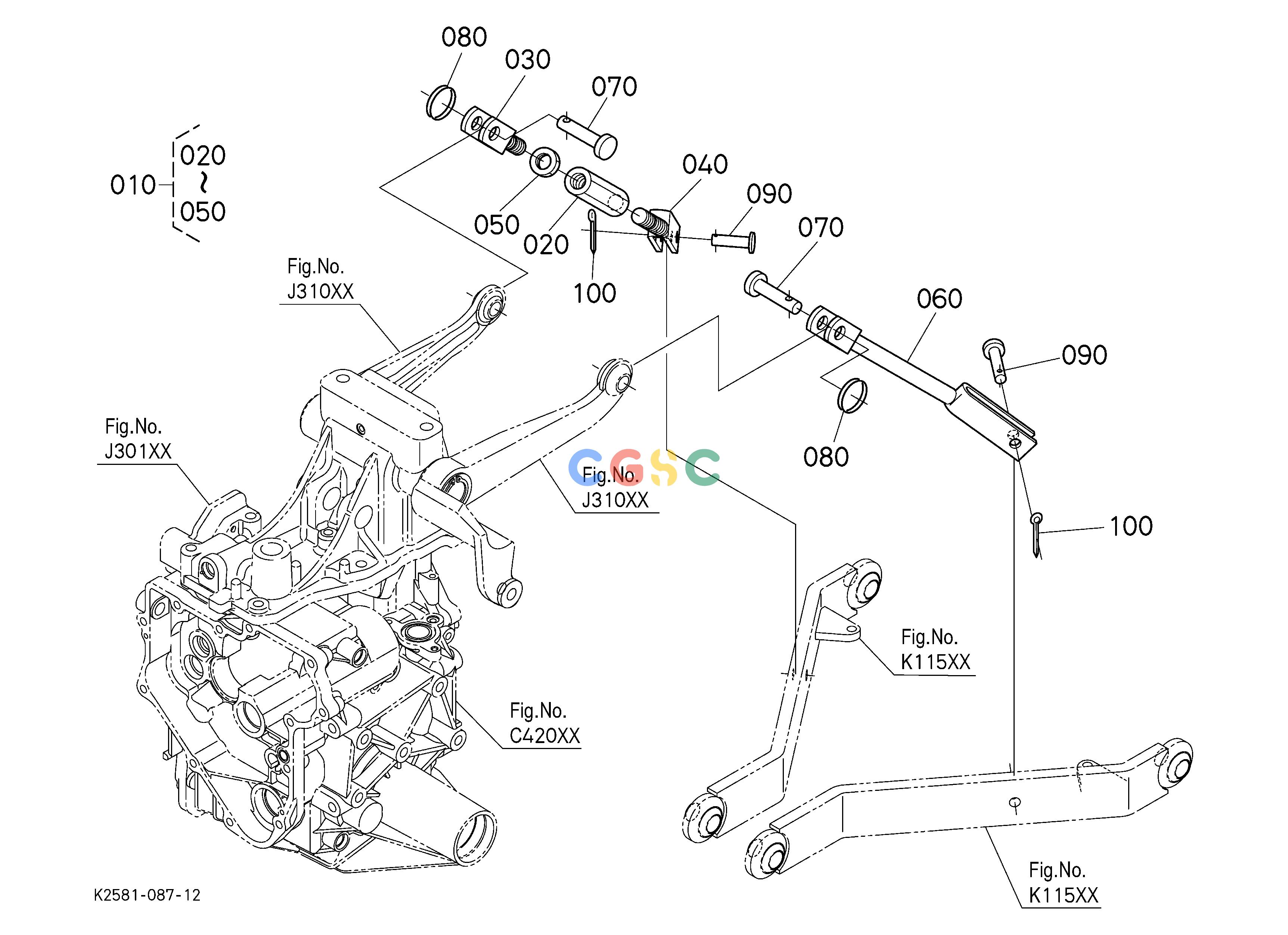

久保田零件查询U87000 3-P LINK KIT 3 (LIFT ROD) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258138220
|
[1] |
ROD,ASSY LIFT RH
|
0.0000(lbs); 0.000
|
| 020. |
K258138250
|
[1] |
TURNBUCKLE
|
0.0000(lbs); 0.000
|
| 030. |
K258138230
|
[1] |
ROD,LIFT RH UPPER
|
0.0000(lbs); 0.000
|
| 040. |
K258138240
|
[1] |
ROD,LIFT RH UNDER
|
0.0000(lbs); 0.000
|
| 050. |
0Y20150120
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 060. |
K258138270
|
[1] |
ROD,LIFT LH
|
0.0000(lbs); 0.000
|
| 070. |
0512251650
|
[2] |
PIN,JOINT
|
0.1980(lbs); 0.090
|
| 070. |
K258138910
|
[2] |
PIN,JOINT
|
0.1870(lbs); 0.085
|
| 080. |
K514272730
|
[2] |
RING,SNAP 2
|
0.0066(lbs); 0.003
|
| 080. |
K514272732
|
[2] |
RING(SNAP,2)
|
0.0066(lbs); 0.003
|
| 090. |
0512261245
|
[2] |
PIN,CLEVIS
|
0.0990(lbs); 0.045
|
| 100. |
0551150435
|
[2] |
PIN,SPLIT
|
0.0088(lbs); 0.004
|
