约翰迪尔零件查询310SK TC - BACKHOE, LOADER Transmission Shift Control SolenoidsEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Transmission Shift Control SolenoidsEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 202 次

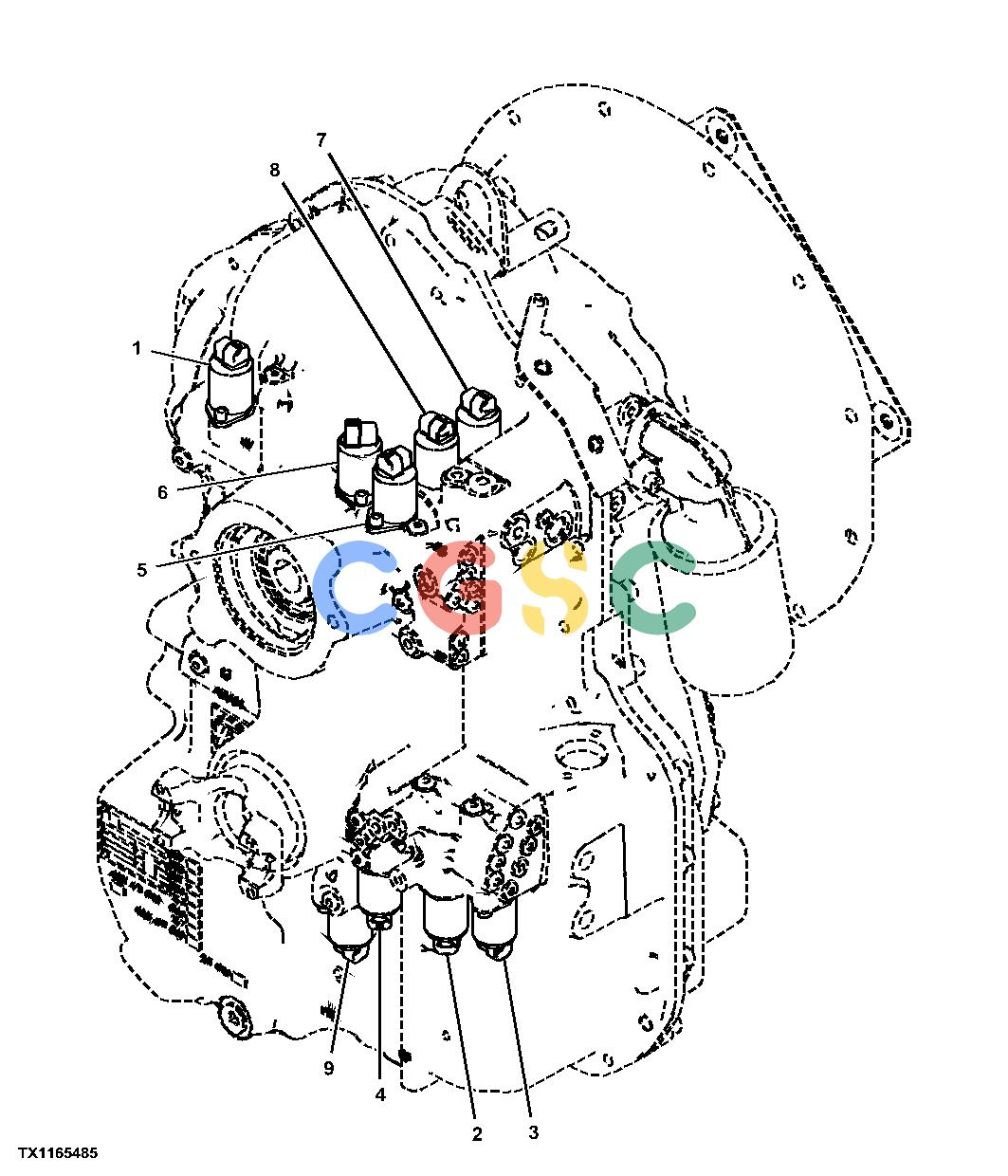

Pos.	Part No	Qty	Parts name	Comments
1.	AT310586	[1]	Solenoid Hydraulic Valve
	AT310586	[1]	Solenoid Hydraulic Valve	1ST SPEED
	T229343	[1]	Plate
	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
	T242623	[1]	O-Ring	19 X 2 MM (0.748" X 0.079")
	R104555	[1]	O-Ring	18 X 2 MM (0.709" X 0.079")
	R104556	[1]	O-Ring	17 X 2 MM (0.669" X 0.079")
	R104557	[1]	O-Ring	16 X 2 MM (0.630" X 0.079")
	R104558	[1]	O-Ring	15 X 2 MM (0.591" X 0.079")
	RE47392	[1]	O-Ring Kit	KIT
	RE47393	[1]	O-Ring	KIT
2.	AT310587	[1]	Solenoid Hydraulic Valve	2ND SPEED
2.	T229343	[1]	Plate
2.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
2.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
2.	R104557	[1]	O-Ring	16 X 2 MM (0.630" X 0.079")
2.	R104558	[1]	O-Ring	15 X 2 MM (0.591" X 0.079")
2.	RE47393	[1]	O-Ring	KIT
3.	AT310587	[1]	Solenoid Hydraulic Valve	3RD SPEED
3.	T229343	[1]	Plate
3.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
3.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
3.	R104557	[1]	O-Ring	16 X 2 MM (0.630" X 0.079")
3.	R104558	[1]	O-Ring	15 X 2 MM (0.591" X 0.079")
3.	RE47393	[1]	O-Ring	KIT
4.	AT310587	[1]	Solenoid Hydraulic Valve	4TH SPEED
4.	T229343	[1]	Plate
4.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
4.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
4.	R104557	[1]	O-Ring	16 X 2 MM (0.630" X 0.079")
4.	R104558	[1]	O-Ring	15 X 2 MM (0.591" X 0.079")
4.	RE47393	[1]	O-Ring	KIT
5.	AT310587	[1]	Solenoid Hydraulic Valve	FORWARD
5.	T229343	[1]	Plate
5.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
5.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
5.	R104557	[1]	O-Ring	16 X 2 MM (0.630" X 0.079")
5.	R104558	[1]	O-Ring	15 X 2 MM (0.591" X 0.079")
5.	RE47393	[1]	O-Ring	KIT
6.	AT310586	[1]	Solenoid Hydraulic Valve	REVERSE
6.	T229343	[1]	Plate
6.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
6.	T242623	[1]	O-Ring	19 X 2 MM (0.748" X 0.079")
6.	R104555	[1]	O-Ring	18 X 2 MM (0.709" X 0.079")
6.	R104556	[1]	O-Ring	17 X 2 MM (0.669" X 0.079")
6.	R104557	[1]	O-Ring	16 X 2 MM (0.630" X 0.079")
6.	R104558	[1]	O-Ring	15 X 2 MM (0.591" X 0.079")
6.	RE47392	[1]	O-Ring Kit	KIT
6.	RE47393	[1]	O-Ring	KIT
7.	AT310584	[1]	Solenoid Hydraulic Valve	PARK BRAKE
7.	T229343	[1]	Plate
7.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
7.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
7.	R104555	[1]	O-Ring	18 X 2 MM (0.709" X 0.079")
7.	R104556	[1]	O-Ring	17 X 2 MM (0.669" X 0.079")
7.	RE47392	[1]	O-Ring Kit	KIT
8.	AT310584	[1]	Solenoid Hydraulic Valve	DIFFERENTIAL LOCK
8.	T229343	[1]	Plate
8.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
8.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
8.	R104555	[1]	O-Ring	18 X 2 MM (0.709" X 0.079")
8.	R104556	[1]	O-Ring	17 X 2 MM (0.669" X 0.079")
8.	RE47392	[1]	O-Ring Kit	KIT
9.	AT310584	[1]	Solenoid Hydraulic Valve	MFWD MECHANICAL FRONT WHEEL DRIVE
9.	T229343	[1]	Plate
9.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
9.	R104554	[1]	O-Ring	20 X 2 MM (0.787" X 0.079")
9.	R104555	[1]	O-Ring	18 X 2 MM (0.709" X 0.079")
9.	R104556	[1]	O-Ring	17 X 2 MM (0.669" X 0.079")
9.	RE47392	[1]	O-Ring Kit	KIT
