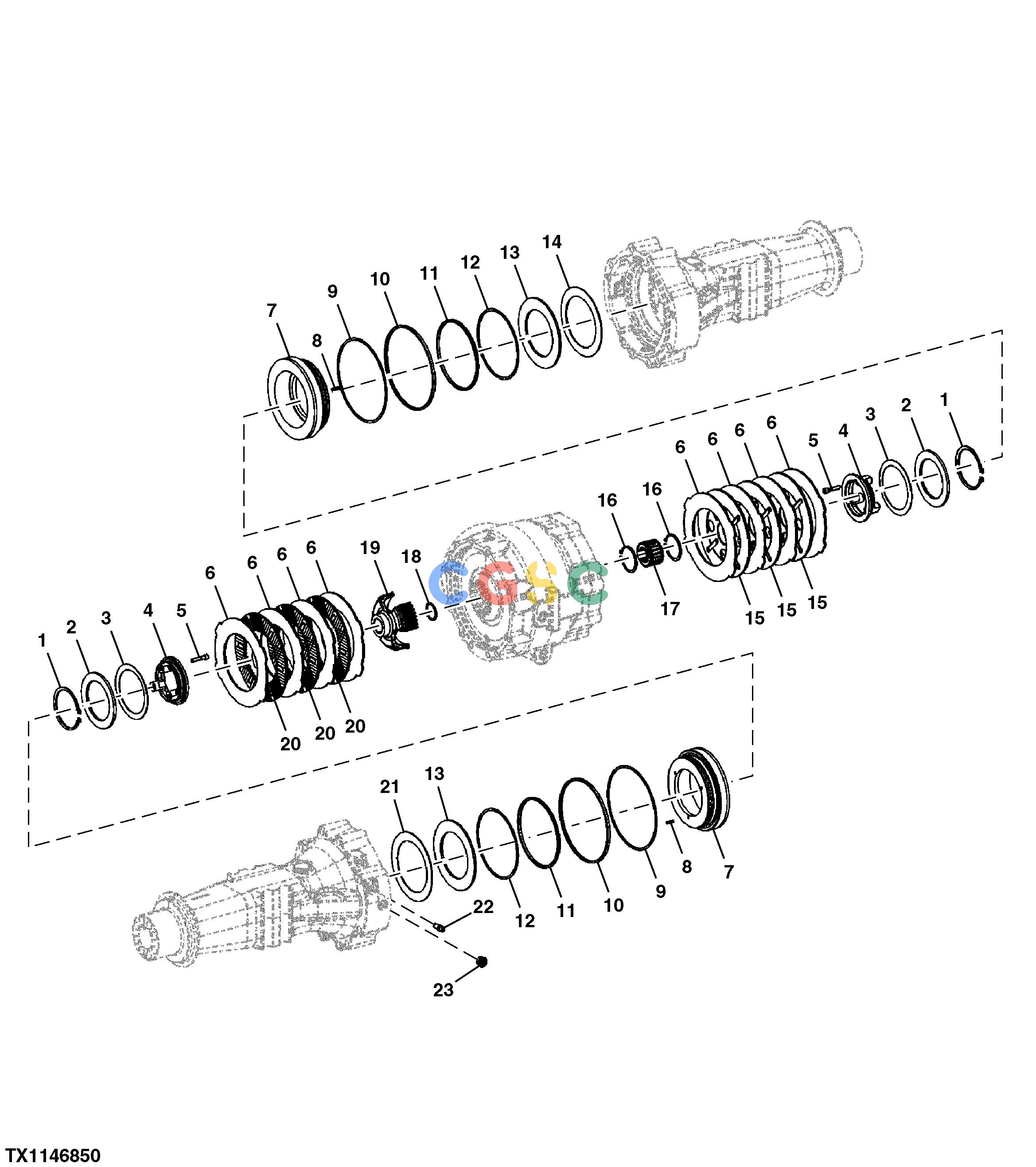

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Service Brake Clutch Disc and Disc Carrier ( - 270515)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T228896
|
[2] |
Snap Ring
|
|
| 2. |
T325080
|
[2] |
Washer
|
|
| 3. |
T228898
|
[2] |
Disk Spring
|
|
| 4. |
T228728
|
[2] |
Snap Ring
|
|
| 4. |
T280889
|
[1] |
Ring
|
|
| 5. |
19M8300
|
[6] |
Screw
|
|
| 6. |
T228727
|
[8] |
Plate
|
|
| 7. |
T228730
|
[2] |
Piston
|
|
| 8. |
T228895
|
[8] |
Spring Pin
|
|
| 9. |
T159403
|
[2] |
Back-Up Ring
|
|
| 10. |
T159402
|
[2] |
Seal
|
|
| 11. |
T218485
|
[2] |
Seal
|
|
| 12. |
T218483
|
[2] |
Back-Up Ring
|
|
| 13. |
T325082
|
[2] |
Washer
|
|
| 14. |
T228912
|
[1] |
Disk Spring
|
|
| 15. |
AT339543
|
[3] |
Brake Disk
|
|
| 16. |
T197832
|
[2] |
Snap Ring
|
|
| 17. |
T228729
|
[1] |
Disk
|
|
| 17. |
T281430
|
[1] |
Disk
|
|
| 18. |
T228911
|
[1] |
Snap Ring
|
|
| 19. |
T228897
|
[1] |
Disk
|
|
| 20. |
AT339059
|
[3] |
Brake Disk
|
|
| 21. |
T228912
|
[1] |
Disk Spring
|
|
| 22. |
T162517
|
[2] |
Bleed Valve
|
|
| 23. |
T159565
|
[2] |
Plug
|
|
| 23. |
H81744
|
[2] |
O-Ring
|
|
