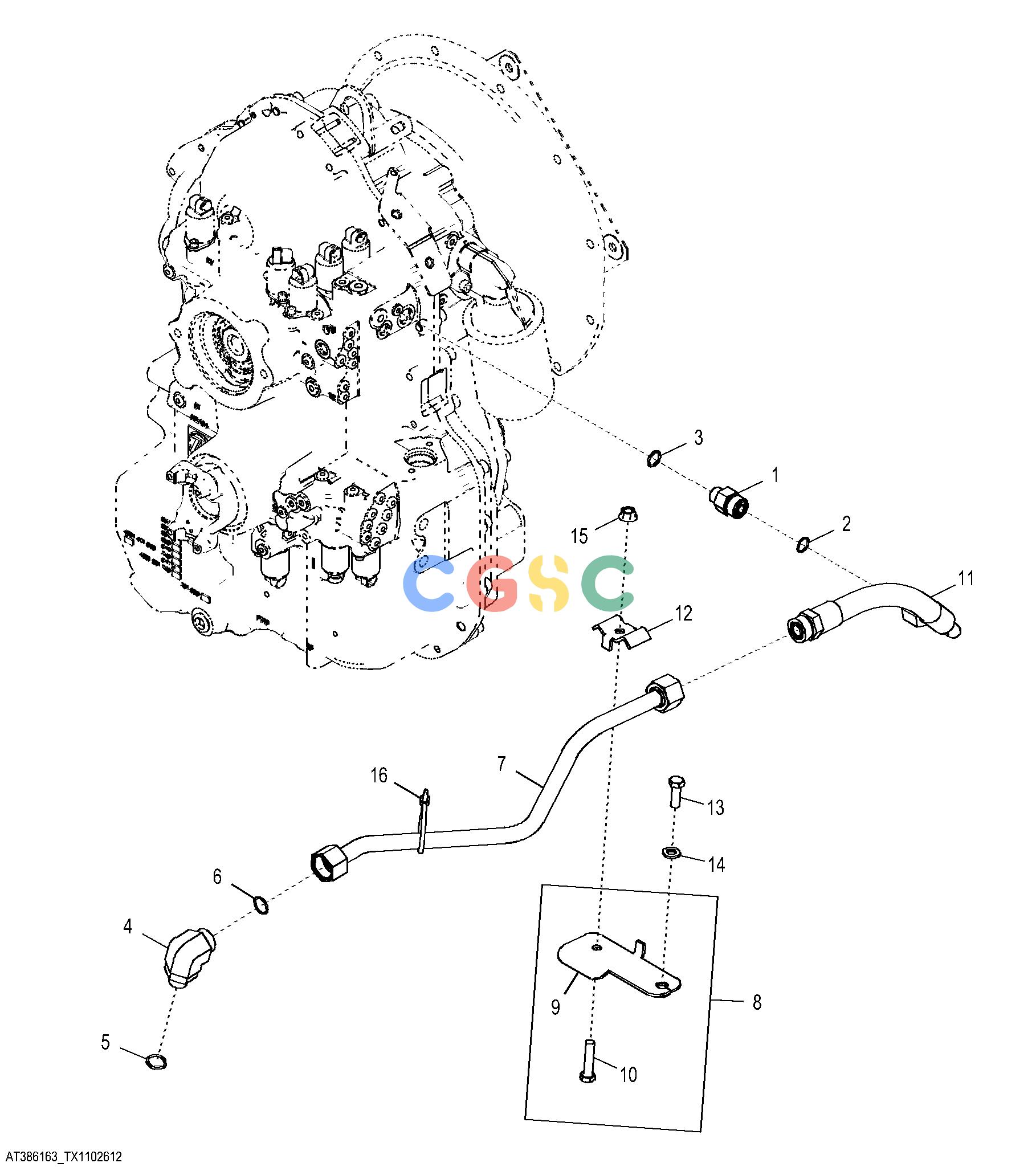

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Parking Brake Hydraulics ( - 258961)EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
593 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
38H1317
|
[1] |
Fitting
|
|
| 2. |
T77932
|
[1] |
O-Ring
|
|
| 3. |
R26375
|
[1] |
O-Ring
|
|
| 4. |
38H1014
|
[1] |
Elbow Fitting
|
|
| 5. |
R26906
|
[1] |
O-Ring
|
|
| 6. |
T77858
|
[1] |
O-Ring
|
|
| 7. |
AT336341
|
[1] |
Tube
|
|
| 8. |
AT324452
|
[1] |
Hose Support
|
|
| 9. |
T217061
|
[1] |
Plate
|
|
| 10. |
19M7572
|
[1] |
Cap Screw
|
|
| 11. |
AT316681
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 12. |
T160554
|
[1] |
Clamp
|
|
| 13. |
19M7662
|
[1] |
Cap Screw
|
|
| 14. |
24M7239
|
[1] |
Washer
|
|
| 15. |
14M7296
|
[1] |
Flange Nut
|
|
| 16. |
R44302
|
[1] |
Tie Band
|
|
