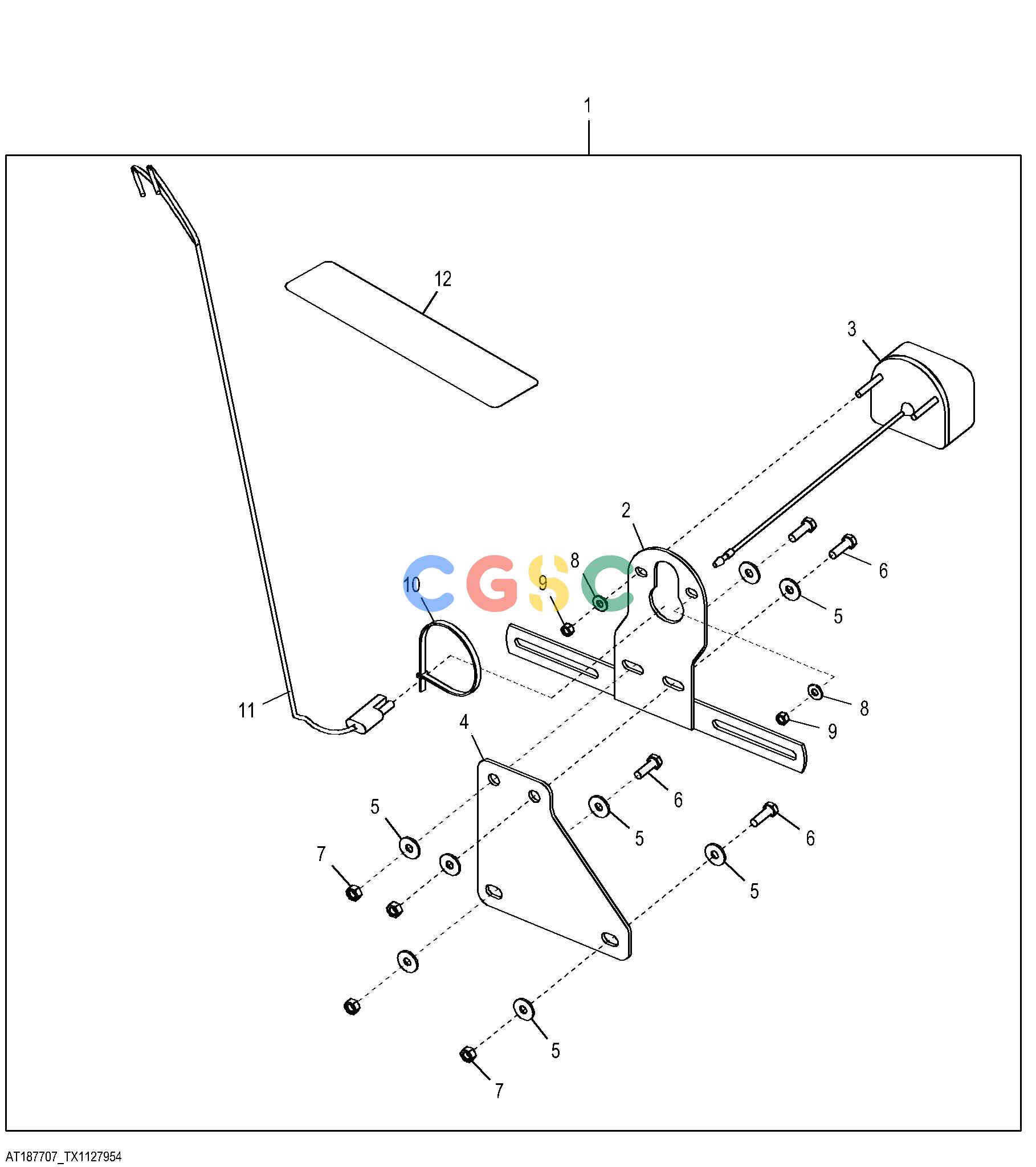

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT187707 | [1] | Bracket Kit | WHOLE GOODS |
| 2. | AT34210 | [1] | Bracket | |
| 3. | AT34211 | [1] | Lamp | |
| 14M7297 | [1] | Nut | M5 | |
| 24H1283 | [1] | Washer | 7/32" X 1/2" X 0.049" | |
| AB2599R | [1] | Bulb | ||
| 4. | T186062 | [1] | Plate | |
| 5. | 24M7139 | [8] | Washer | 6.400 X 18 X 1.600 MM |
| 6. | 19M7077 | [4] | Cap Screw | M6 X 20 |
| 7. | 14M7272 | [4] | Nut | M6 |
| 8. | 24H1283 | [2] | Washer | 7/32" X 1/2" X 0.049" |
| 9. | 14M7297 | [2] | Nut | M5 |
| 10. | H77698 | [1] | Tie Band | |
| 11. | AT187708 | [1] | Wiring Harness | LICENSE PLATE LIGHT |
| 12. | JD5939 | [1] | Reflector |
