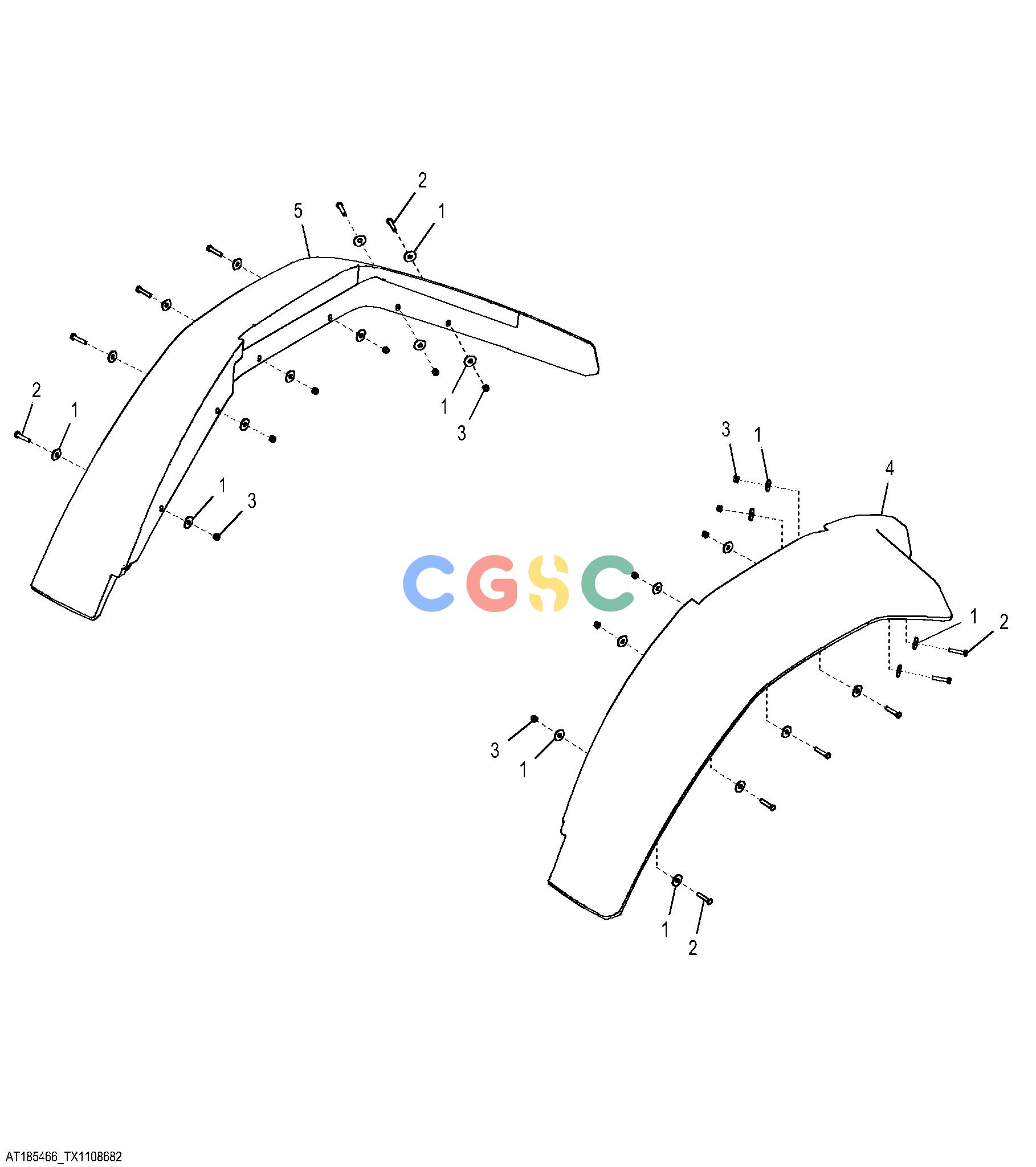

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 24M7296 | [24] | Washer | 10.500 X 30 X 2.500 MM |
| 2. | 19M8008 | [12] | Cap Screw | M8 X 35 SUB FOR 19M7922 AND 19M7513 |
| 3. | 14M7426 | [12] | Lock Nut | M8 |
| 4. | T177187 | [1] | Fender | NLA, ORDER AT430410 LEFT |
| AT430410 | [1] | Fender | SUB FOR T177187 LEFT COMPONENTS ON SEPARATE PAGE | |
| 5. | T165870 | [1] | Fender | NLA, ORDER AT430411 RIGHT |
| AT430411 | [1] | Fender | SUB FOR T165870 RIGHT COMPONENTS ON SEPARATE PAGE |
