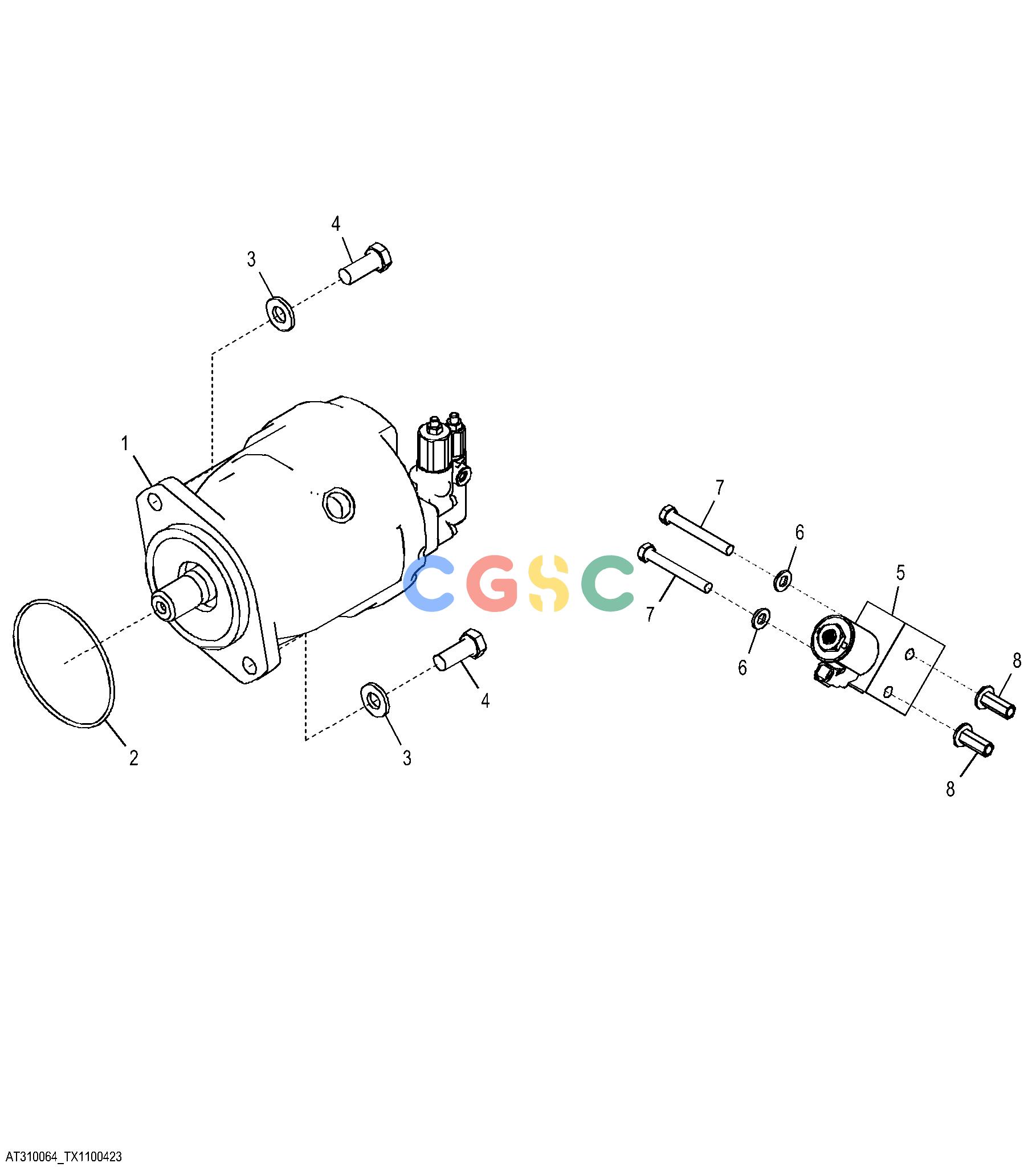

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Main Hydraulic PumpEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
949 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT334876
|
[1] |
Hydraulic Pump
|
|
| |
PG200235
|
[1] |
Hydraulic Pump Reman
|
|
| |
AT341165
|
[1] |
Seal Kit
|
|
| |
AT310889
|
[1] |
Seal Kit
|
|
| |
AT334877
|
[1] |
Pump/Valve Controller
|
|
| |
T201521
|
[1] |
Gasket
|
|
| |
T201525
|
[1] |
Seal
|
|
| 2. |
F37030250
|
[1] |
O-Ring
|
|
| 3. |
24M7241
|
[2] |
Washer
|
|
| 4. |
19M7395
|
[2] |
Cap Screw
|
|
| 5. |
AT330663
|
[1] |
Solenoid Hydraulic Valve
|
|
| |
AT198518
|
[1] |
Pressure Relief Valve
|
|
| |
AT224862
|
[1] |
Seal Kit
|
|
| |
AT333814
|
[1] |
Solenoid Valve Coil
|
|
| |
T225294
|
[1] |
Nut
|
|
| 6. |
24M7239
|
[2] |
Washer
|
|
| 7. |
19M8081
|
[2] |
Cap Screw
|
|
| 8. |
T148409
|
[2] |
Nut
|
|
