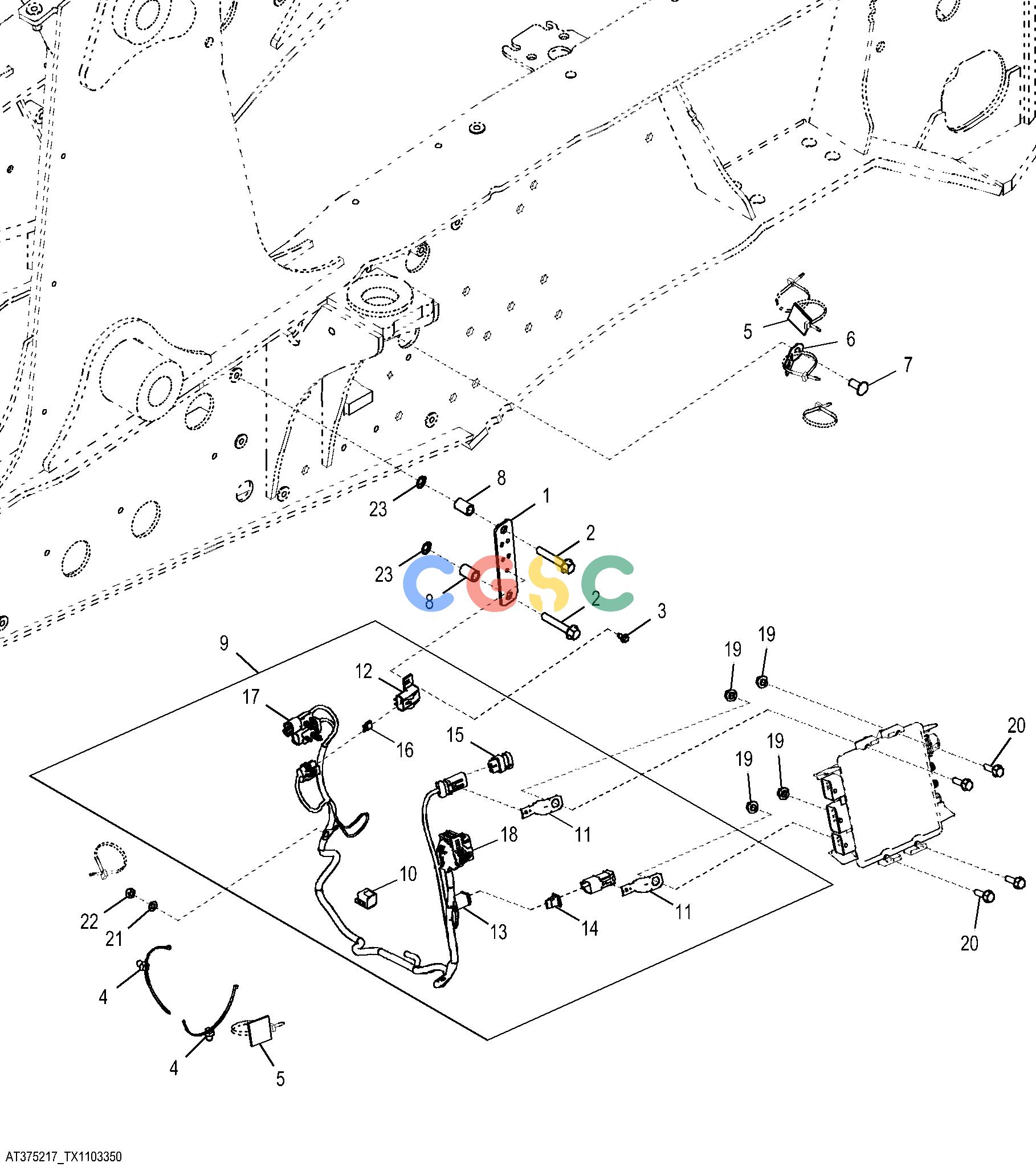

约翰迪尔零件查询310SK TC - BACKHOE, LOADER JDLink™ Modular Telematics Gateway (MTG) AssemblyEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T278526
|
[1] |
Plate
|
|
| 2. |
19M7807
|
[2] |
Screw
|
|
| 3. |
37H116
|
[1] |
Screw
|
|
| 4. |
T209627
|
[2] |
Clamp
|
|
| 5. |
A87105
|
[2] |
Anchor
|
|
| 6. |
T210717
|
[1] |
Bracket
|
|
| 7. |
MT2485
|
[1] |
Plug
|
|
| 8. |
H141836
|
[2] |
Bushing
|
|
| 9. |
AT379365
|
[1] |
Wiring Harness
|
|
| 10. |
57M11287
|
[1] |
Elec. Connector Accessory
|
|
| 11. |
57M8736
|
[2] |
Elec. Connector Accessory
|
|
| 12. |
57M8487
|
[1] |
Electrical Connector Cap
|
|
| 13. |
57M8012
|
[1] |
Electrical Connector Assy
|
|
| 14. |
57M8013
|
[1] |
Elec.Connect Locking Device
|
|
| 15. |
57M9734
|
[1] |
Elec. Connector Housing
|
|
| 16. |
57M8638
|
[1] |
Fuse
|
|
| 17. |
57M8020
|
[1] |
Elec. Connector Housing
|
|
| 18. |
57M10615
|
[1] |
Elec. Connector Housing
|
|
| 19. |
14M7298
|
[4] |
Flange Nut
|
|
| 20. |
19M7868
|
[4] |
Screw
|
|
| 21. |
24M7055
|
[1] |
Washer
|
|
| 22. |
E50101
|
[1] |
Lock Nut
|
|
| 23. |
H141123
|
[2] |
Push Nut
|
|
