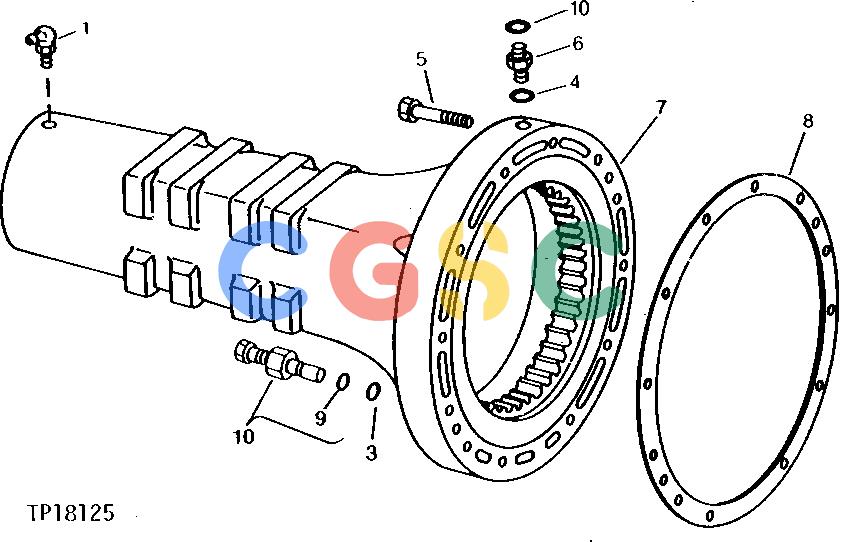

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | JD7781 | [1] | Lubrication Fitting | 90°, 1/8" |
| 2. | T77814 | [1] | O-Ring | |
| 3. | R26287 | [3] | O-Ring | |
| 4. | R26287 | [2] | O-Ring | |
| 5. | 19H1805 | [12] | Cap Screw | 1/2" X 2-1/4" |
| 6. | 38H1166 | [1] | Adapter Fitting | |
| 7. | AT169364 | [1] | Housing | (MARKED T105800) WITH GEAR SUB FOR AT106669 MARKED T105800 WITH GEAR MARKED R57200 OR T125844) (MARKED R57200 OR T125844) |
| 7. | T151158 | [1] | Ring Gear | (MARKED R57200) (SUB FOR T125844) (NOT ILLUSTRATED) |
| 7. | T21428 | [3] | Dowel Pin | (NOT ILLUSTRATED) (FINAL DRIVE GEAR TO REAR AXLE HOUSING) |
| 8. | R98915 | [1] | Gasket | (SUB FOR T21419) |
| 9. | ........ | [3] | Washer | (SUB AT129199) |
| 10. | AT129199 | [3] | Screw | |
| 10. | T84345 | [AR] | Tool | (BRAKE ADJUSTMENT) (NOT ILLUSTRATED) |
