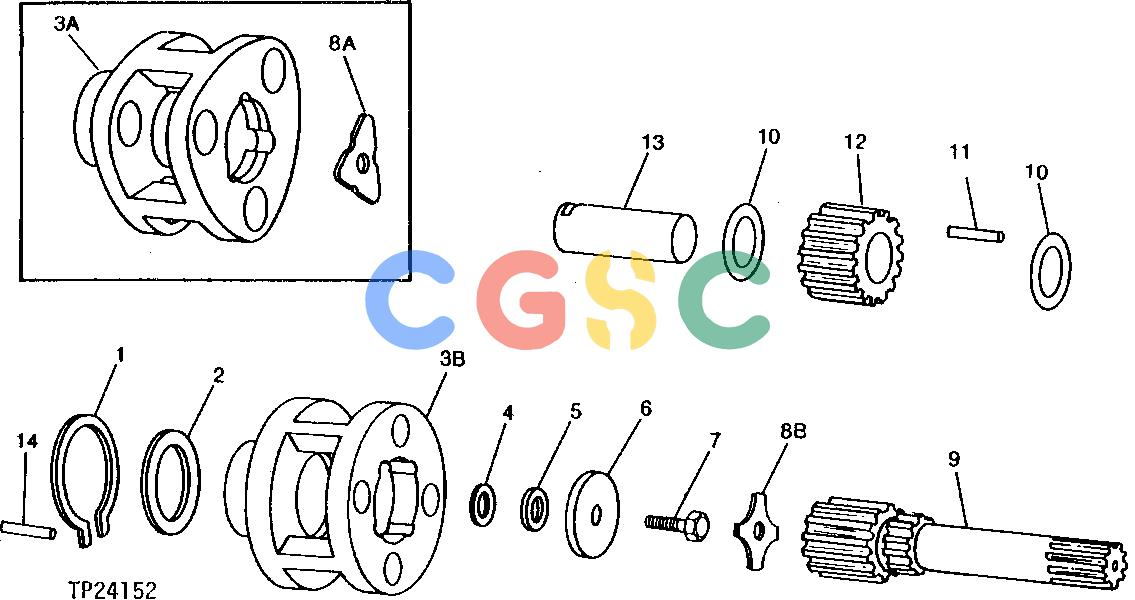

Pos.	Part No	Qty	Parts name	Comments
1.	T35791	[1]	Snap Ring
1.	40M7125	[1]	Snap Ring
2.	T38475	[1]	Shim
3A.	........	[1]	Planet Pinion Carrier	( T38506 NO LONGER AVAILABLE)
3A.	........	[1]	Planet Pinion Carrier	( T133114 NO LONGER AVAILABLE) (SUB FOR T38506)
3A.	T149082	[1]	Planet Pinion Carrier	(SUB FOR T133114)
3B.	L39256	[1]	Planet Pinion Carrier
4.	........	[AR]	Shim	( M2054T NO LONGER AVAILABLE) (SUB AT146274) 0.13 MM (.005")
4.	........	[AR]	Shim	( M2055T NO LONGER AVAILABLE) (SUB AT146274) 0.25 MM (.010")
5.	T55420	[AR]	Washer
6.	T38555	[1]	Washer
7.	T35306	[1]	Screw
8A.	T55419	[1]	Lock Plate
8B.	L32631	[1]	Wear Plate
9.	T71926	[1]	Drive Shaft	FINAL DRIVE, L.H.
9.	T71925	[1]	Drive Shaft	FINAL DRIVE, R.H.
10.	T141566	[6]	Thrust Washer	(SUB FOR T21424)
10.	T141566	[8]	Thrust Washer	(SUB FOR T21424)
11.	T21418	[69]	Pin
11.	T21418	[92]	Pin
12.	T21547	[3]	Gear	(18 TEETH)
12.	T21547	[4]	Gear
13.	........	[3]	Pinion Shaft	( T38049 NO LONGER AVAILABLE)
13.	T149083	[3]	Shaft	(SUB FOR T38049)
13.	L39575	[4]	Pinion Shaft
14.	34M7111	[1]	Spring Pin	10 X 30 MM
