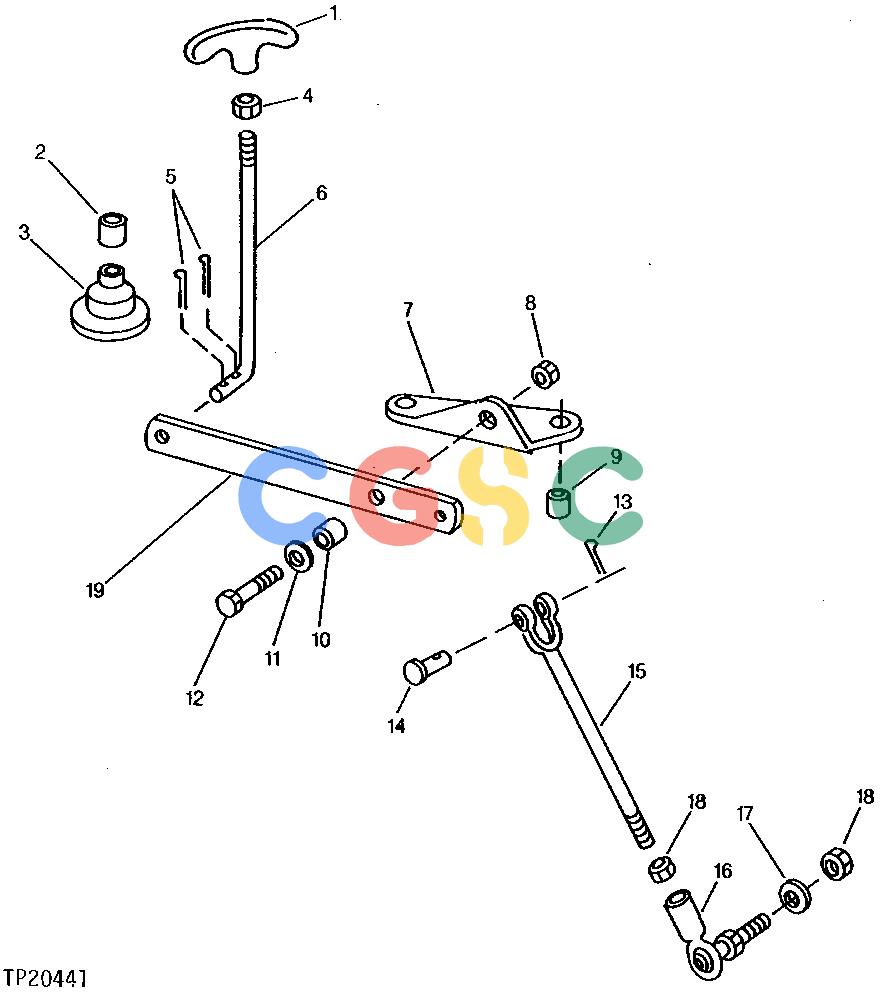

约翰迪尔零件查询315CH - BACKHOE, LOADER MECHANICAL FRONT WHEEL DRIVE LINKAGE [01C13]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L39536
|
[1] |
Grip
|
|
| 2. |
R45537
|
[1] |
Grommet
|
|
| 3. |
T68102
|
[1] |
Boot
|
|
| 4. |
14M7275
|
[1] |
Nut
|
|
| 5. |
11M7021
|
[2] |
Cotter Pin
|
|
| 6. |
T118756
|
[1] |
Hook Bolt
|
|
| 7. |
T118755
|
[1] |
Bracket
|
|
| 8. |
14H1076
|
[1] |
Nut
|
|
| 9. |
28H935
|
[1] |
Spacer
|
|
| 10. |
U10974
|
[1] |
Bushing
|
|
| 11. |
24M7296
|
[1] |
Washer
|
|
| 12. |
19H3239
|
[1] |
Cap Screw
|
|
| 13. |
11M7081
|
[1] |
Cotter Pin
|
|
| 14. |
C1067R
|
[1] |
Pin Fastener
|
|
| 15. |
AR101740
|
[1] |
Yoke
|
|
| 16. |
AT65619
|
[1] |
Ball Joint
|
|
| 17. |
24H1304
|
[1] |
Washer
|
|
| 18. |
14H846
|
[2] |
Nut
|
|
| 19. |
T118752
|
[1] |
Strap
|
|
