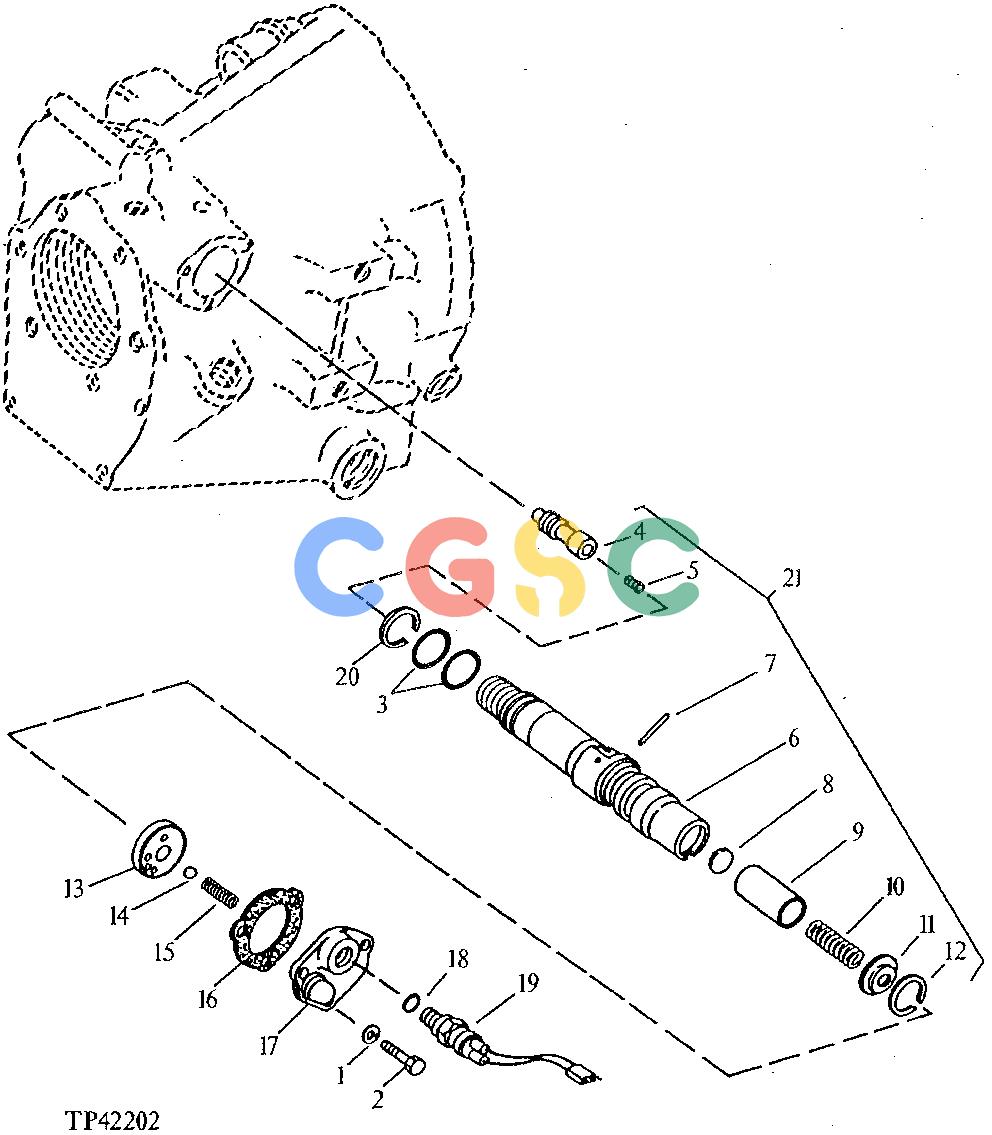

约翰迪尔零件查询315CH - BACKHOE, LOADER REVERSER FORWARD-REVERSE VALVE [01D15]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
12H302
|
[3] |
Lock Washer
|
|
| 2. |
19H2036
|
[3] |
Cap Screw
|
|
| 3. |
B15646
|
[2] |
O-Ring
|
|
| 4. |
T101022
|
[1] |
Pressure Relief Valve
|
|
| 5. |
T101023
|
[1] |
Spring
|
|
| 6. |
........
|
[1] |
Valve
|
|
| 7. |
25H1188
|
[1] |
Groove Pin
|
|
| 8. |
30H9
|
[1] |
Plug
|
|
| 9. |
T101025
|
[1] |
Hydraulic Pressure Valve
|
|
| 10. |
T101026
|
[1] |
Spring
|
|
| 11. |
T101027
|
[1] |
Retainer
|
|
| 12. |
T105952
|
[1] |
Snap Ring
|
|
| 13. |
T101028
|
[1] |
Cam
|
|
| 14. |
R26552
|
[1] |
Ball
|
|
| 15. |
T101029
|
[1] |
Spring
|
|
| 16. |
T100683
|
[1] |
Gasket
|
|
| 17. |
T101030
|
[1] |
Valve Cover
|
|
| 18. |
R26448
|
[1] |
O-Ring
|
|
| 19. |
AT101906
|
[1] |
Switch
|
|
| 20. |
T101050
|
[1] |
Snap Ring
|
|
| 21. |
AT101453
|
[1] |
Hyd Actuated Control Valve
|
|
