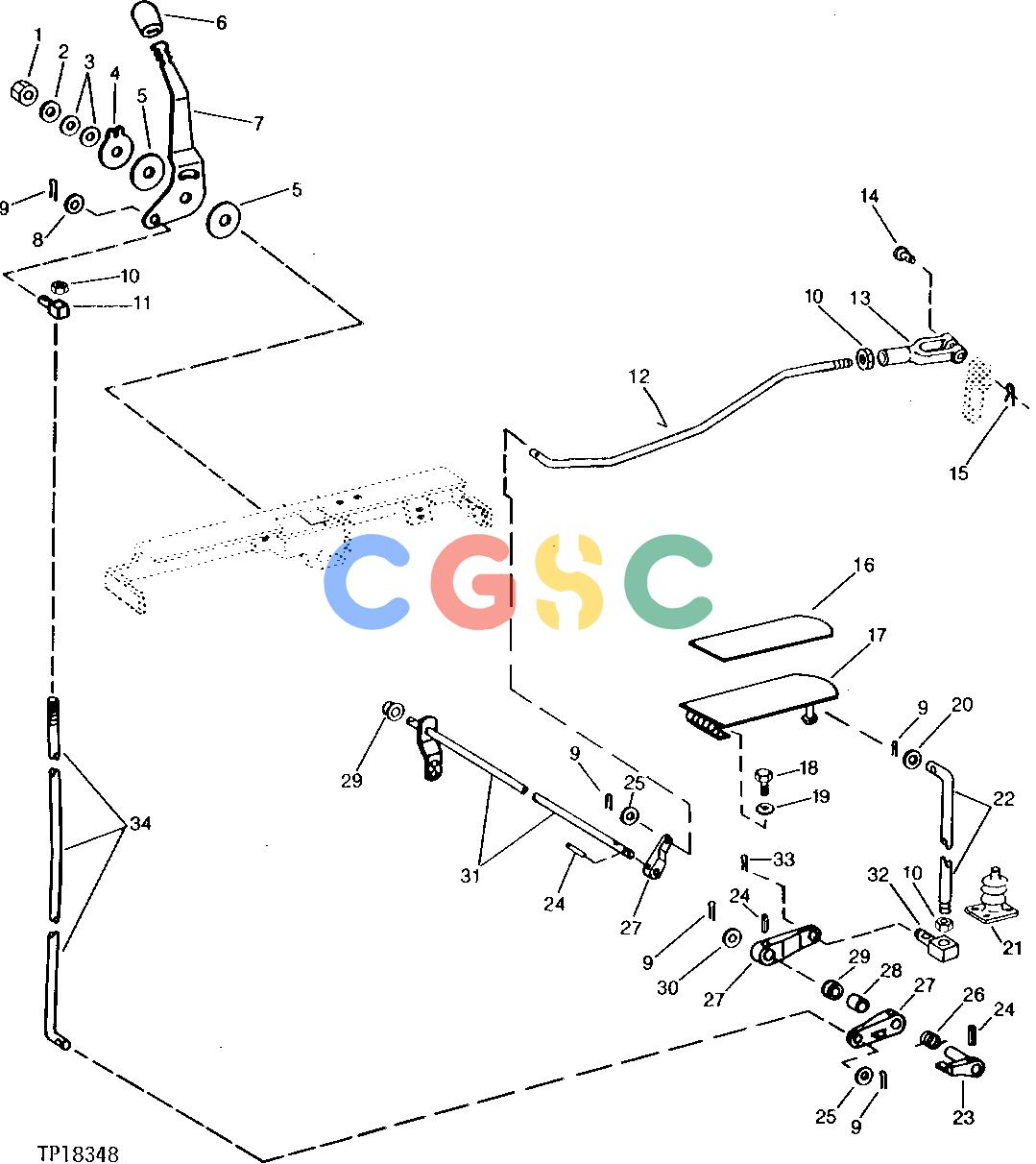

Pos.	Part No	Qty	Parts name	Comments
1.	T11234	[1]	Lock Nut
2.	24H1304	[1]	Washer	13/32" X 23/32" X 0.120"
3.	12M7059	[2]	Disk Spring	10.200 X 20 X 0.800 MM
4.	R33976	[1]	Plate
5.	R39985	[2]	Washer	(SUB FOR T113234)
6.	T68101	[1]	Knob
7.	T68442	[1]	Lever
8.	24H1286	[1]	Washer	9/32" X 1/2" X 1/16"
9.	11M7077	[5]	Cotter Pin	1.600 X 25 MM
10.	14H649	[3]	Nut	1/4"
11.	T35887	[1]	Swivel
12.	T113403	[1]	Rod
13.	M3742T	[1]	Yoke
14.	R662R	[1]	Pin Fastener
15.	11M7082	[1]	Cotter Pin	2.500 X 25 MM
16.	T68445	[1]	Mat
17.	AT75316	[1]	Pedal
18.	19M7774	[2]	Screw	M6 X 12
19.	24M7088	[AR]	Washer	6.600 X 12 X 1.600 MM, (NO LONGER REQUIRED)
20.	24H1286	[1]	Washer	9/32" X 1/2" X 1/16"
21.	AT75317	[1]	Boot
21.	19M7774	[3]	Screw	M6 X 12
22.	T79459	[1]	Hook Bolt
23.	T22150	[1]	Arm
24.	34H264	[3]	Spring Pin	5/32" X 7/8"
25.	24H1286	[2]	Washer	9/32" X 1/2" X 1/16"
26.	T77165	[1]	Spring
27.	T22240	[3]	Arm
28.	28H1521	[1]	Spacer	0.493" X 0.675" X 9/16"
29.	T22241	[2]	Grommet
30.	24H1305	[1]	Washer	13/32" X 13/16" X 0.065"
31.	AT114061	[1]	Shaft
32.	T35887	[1]	Swivel
33.	11M7079	[1]	Cotter Pin	2.500 X 12 MM
34.	T75521	[1]	Rod
