约翰迪尔零件查询315CH - BACKHOE, LOADER STEERING PRIORITY VALVE AND BRAKE VALVE HYDRAULICS [01E15]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1016 次

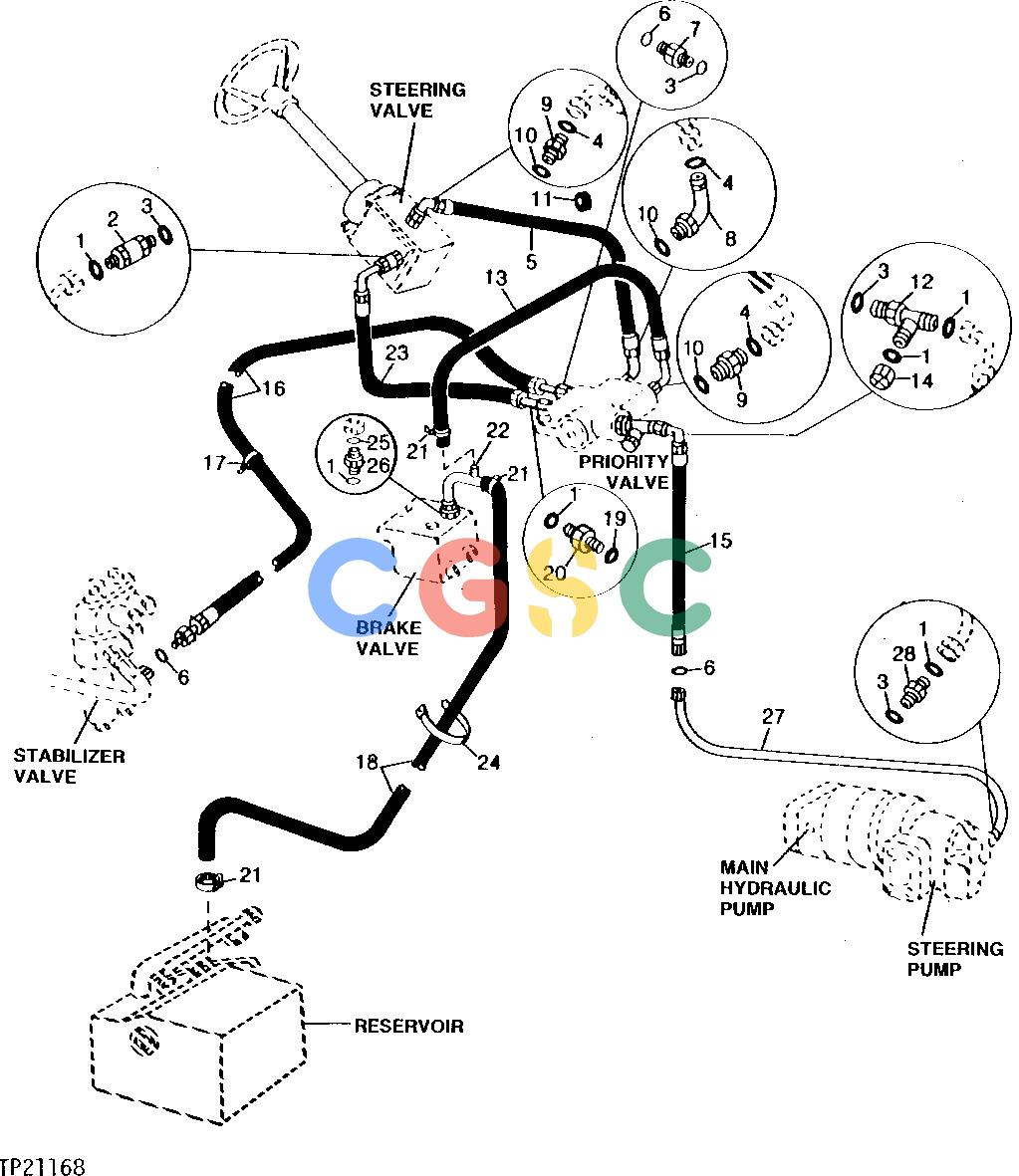

Pos.	Part No	Qty	Parts name	Comments
1.	T77857	[5]	O-Ring
2.	AT132903	[1]	Check Valve	(SUB FOR AT83307 AND AT107698)
3.	R26375	[4]	O-Ring
4.	T77814	[3]	O-Ring
5.	AT101577	[1]	Hydraulic Hose - Fabricate	9/16" X 490 MM (19-1/4") X 9/16"
6.	T77613	[3]	O-Ring
7.	38H1171	[1]	Adapter Fitting
8.	38H1003	[1]	Elbow Fitting
9.	38H1159	[2]	Adapter Fitting
10.	R28782	[3]	O-Ring
11.	T58739	[1]	Grommet
12.	38H1024	[1]	Tee Fitting
13.	AT101576	[1]	Hydraulic Hose - Fabricate
14.	38H1416	[1]	Fitting
15.	AT150239	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT101770)
16.	AT150240	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT101771)
17.	H77698	[AR]	Tie Band	(SUB FOR T44946)
18.	........	[AR]	Hydraulic Hose	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
19.	38H1173	[1]	Adapter Fitting
20.	R26448	[1]	O-Ring
21.	TY22462	[3]	Clamp	(SUB FOR AR48236)
22.	AT106629	[1]	Oil Line
23.	AT101592	[1]	Hydraulic Hose - Fabricate	13/16" X 500 MM (19-3/4") X 13/16"
24.	R44302	[AR]	Tie Band
25.	R29936	[1]	O-Ring
26.	38H1176	[1]	Adapter Fitting
27.	AT113881	[1]	Oil Line
28.	38H1161	[1]	Adapter Fitting
