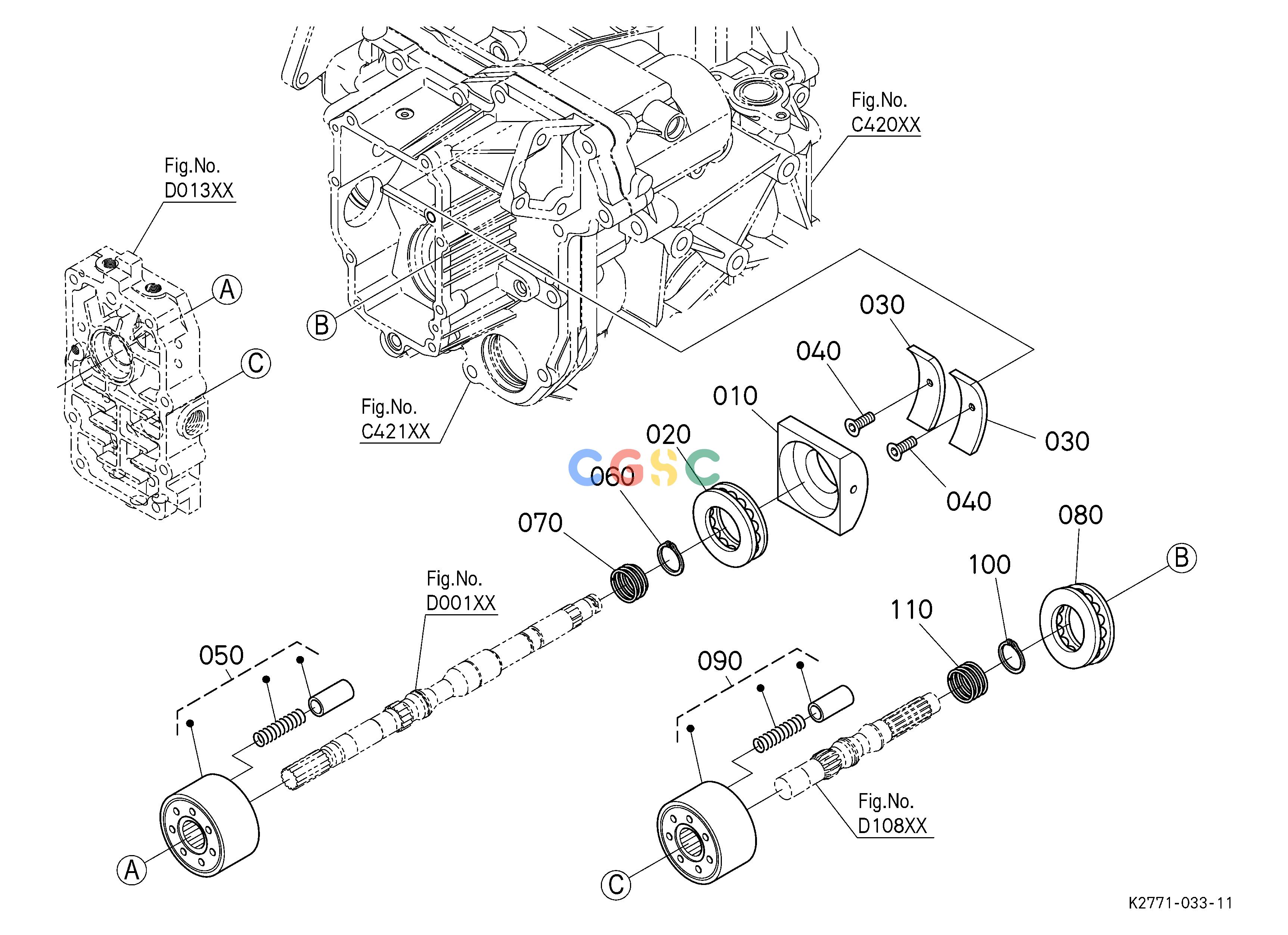

久保田零件查询D01100 HST (CYLINDER BLOCK) TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
5H55019110
|
[1] |
PLATE,SWASH CRADLE
|
1.4080(lbs); 0.640
|
| 010. |
K344116210
|
[1] |
PLATE,SWASH
|
1.3860(lbs); 0.630
|
| 020. |
K316111310
|
[1] |
BEARING,THRUST BALL
|
0.4620(lbs); 0.210
|
| 030. |
6C30011740
|
[2] |
BEARING,CRADLE
|
0.0726(lbs); 0.033
|
| 040. |
K258114240
|
[2] |
SCREW
|
0.0022(lbs); 0.001
|
| 050. |
K316111402
|
[1] |
ASSY CYLINDER
|
2.1340(lbs); 0.970
|
| 060. |
5H55019280
|
[1] |
CIR CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 070. |
5H55019250
|
[1] |
SPRING
|
0.0308(lbs); 0.014
|
| 080. |
K316111310
|
[1] |
BEARING,THRUST BALL
|
0.4620(lbs); 0.210
|
| 090. |
K316111402
|
[1] |
ASSY CYLINDER
|
2.1340(lbs); 0.970
|
| 100. |
5H55019280
|
[1] |
CIR CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 110. |
5H55019250
|
[1] |
SPRING
|
0.0308(lbs); 0.014
|
