约翰迪尔零件查询315CH - BACKHOE, LOADER WEATHERPACK TERMINALS AND CONNECTORS [01H03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 259 次

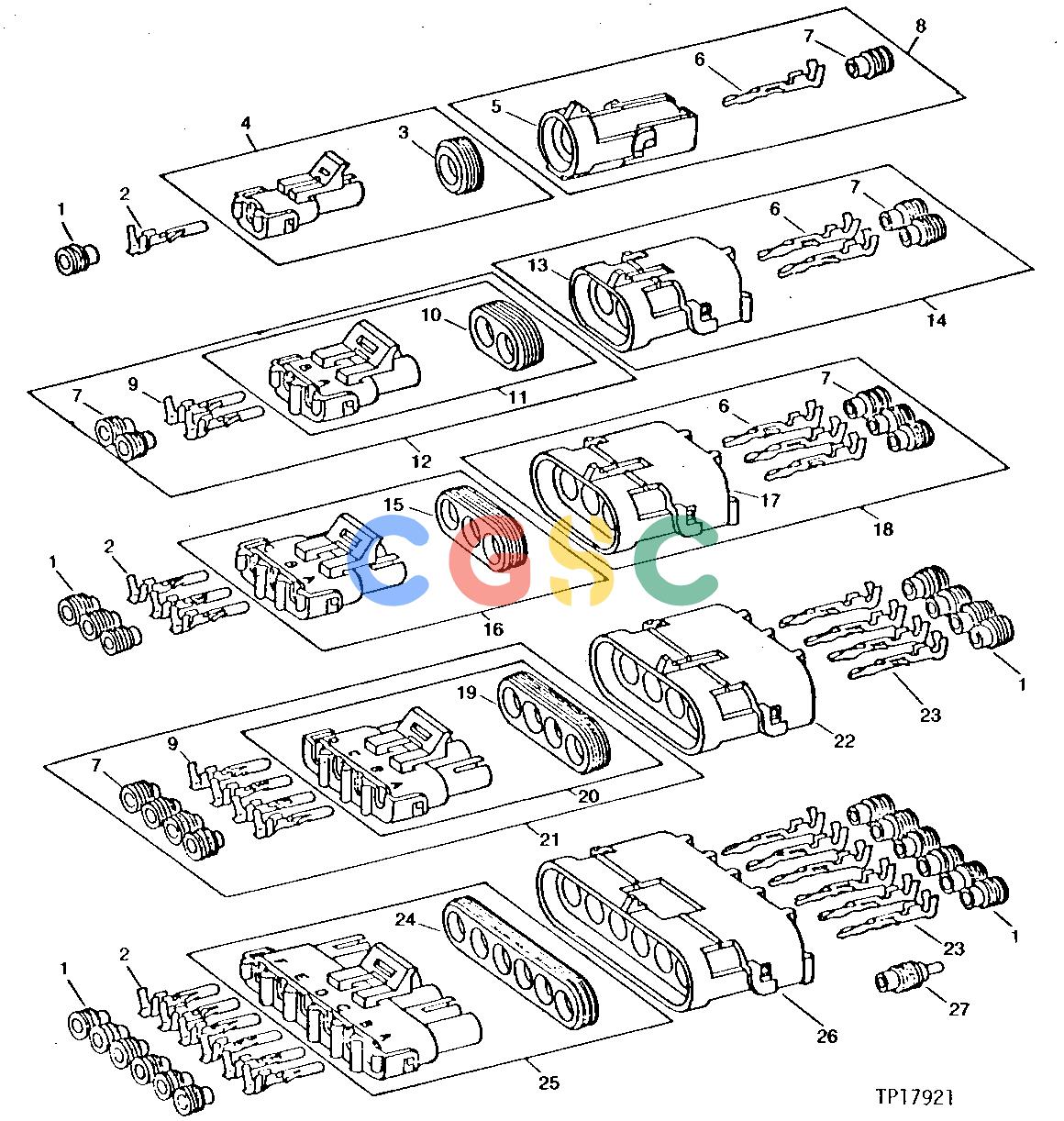

Pos.	Part No	Qty	Parts name	Comments
1.	R78063	[1]	Elec. Connector Seal	(PKG. OF 40) (16 GA. WIRE) (GRAY)
1.	R78059	[1]	Elec. Connector Seal	(PKG. OF 40) (18 OR 20 GA. WIRE) (GREEN)
1.	R78062	[1]	Elec. Connector Accessory	(PKG. OF 40) (14 GA. WIRE) (BLUE)
2.	R78057	[1]	Elec. Connector Terminal	(PKG. OF 40) (18 OR 20 GA. WIRE) (NO. 19)
2.	R78060	[1]	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
3.	R78047	[1]	Seal	(PKG. OF 5)
4.	RE12362	[1]	Electrical Connector Assy	(PKG. OF 3)
5.	R78052	[1]	Electrical Connector Assy	(PKG. OF 3)
6.	R78061	[1]	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
7.	R78063	[1]	Elec. Connector Seal	(PKG. OF 40) (16 GA. WIRE) (GRAY)
8.	RE12334	[1]	Electrical Connector Assy
9.	R78060	[1]	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
10.	R78048	[1]	Elec. Connector Accessory	(PKG. OF 5)
11.	RE12363	[1]	Electrical Connector Assy	(PKG. OF 3)
12.	RE12331	[1]	Electrical Connector Assy
13.	R78053	[1]	Electrical Connector Assy	(PKG. OF 3)
14.	RE12330	[1]	Electrical Connector Assy
15.	R78049	[1]	Seal	(PKG. OF 5)
16.	RE12364	[1]	Electrical Connector Assy	(PKG. OF 3)
17.	R78054	[1]	Electrical Connector Assy	(PKG. OF 3)
18.	RE12332	[1]	Electrical Connector Assy
19.	R78050	[1]	Seal	(PKG. OF 5)
20.	RE12365	[1]	Electrical Connector Assy	(PKG. OF 2)
21.	RE12333	[1]	Electrical Connector Assy
22.	R78055	[1]	Electrical Connector Assy	(PKG. OF 2)
23.	R78061	[1]	Elec. Connector Terminal	(PKG. OF 40) (14 OR 16 GA. WIRE) (NO. 15)
23.	R78058	[1]	Elec. Connector Terminal	(PKG. OF 40) (18 OR 20 GA. WIRE) (NO. 19)
24.	R78051	[1]	Seal	(PKG. OF 5)
25.	RE12366	[1]	Electrical Connector Assy	(PKG. OF 2)
26.	R78056	[1]	Electrical Connector Assy	(PKG. OF 2)
27.	R78064	[1]	Elec. Connector Cavity Plug	(PKG. OF 40)
