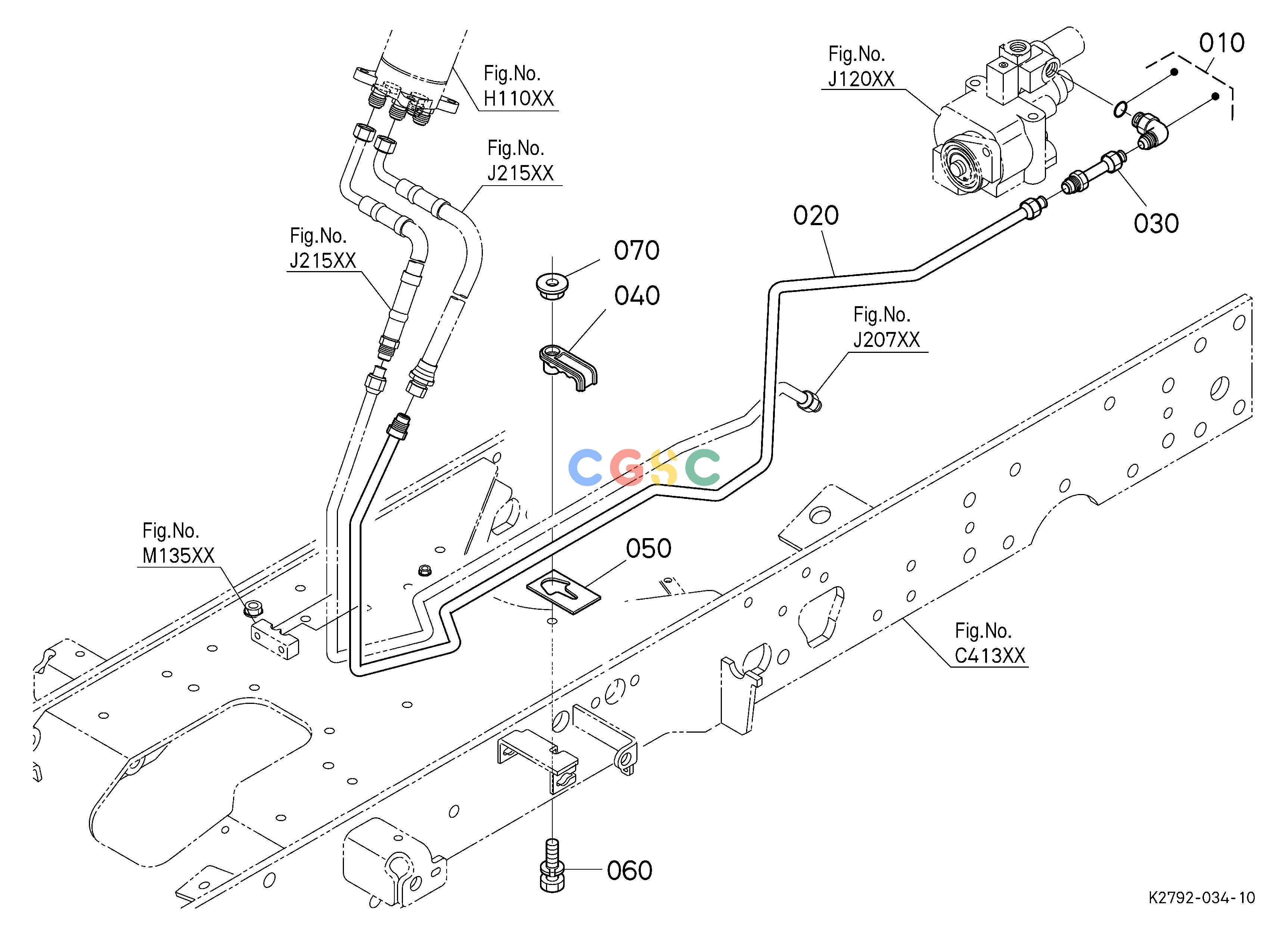

久保田零件查询J20500 HYDRAULIC OIL LINE (INLET) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258136630
|
[1] |
CONNECTOR,90-9/16-18
|
0.0990(lbs); 0.045
|
| 020. |
K258141533
|
[1] |
TUBE,PS IN
|
0.0000(lbs); 0.000
|
| 030. |
K258141522
|
[1] |
TUBE,PS EXT.
|
0.0000(lbs); 0.000
|
| 040. |
K258141650
|
[1] |
CLAMP,TUBE
|
0.0440(lbs); 0.020
|
| 050. |
K258141680
|
[1] |
PLATE,RUBBER
|
0.0110(lbs); 0.005
|
| 060. |
0112350830
|
[1] |
BOLT,SEMS
|
0.0330(lbs); 0.015
|
| 070. |
0275170080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
