约翰迪尔零件查询315CH - BACKHOE, LOADER MAIN HYDRAULIC SYSTEM [01K10]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 472 次

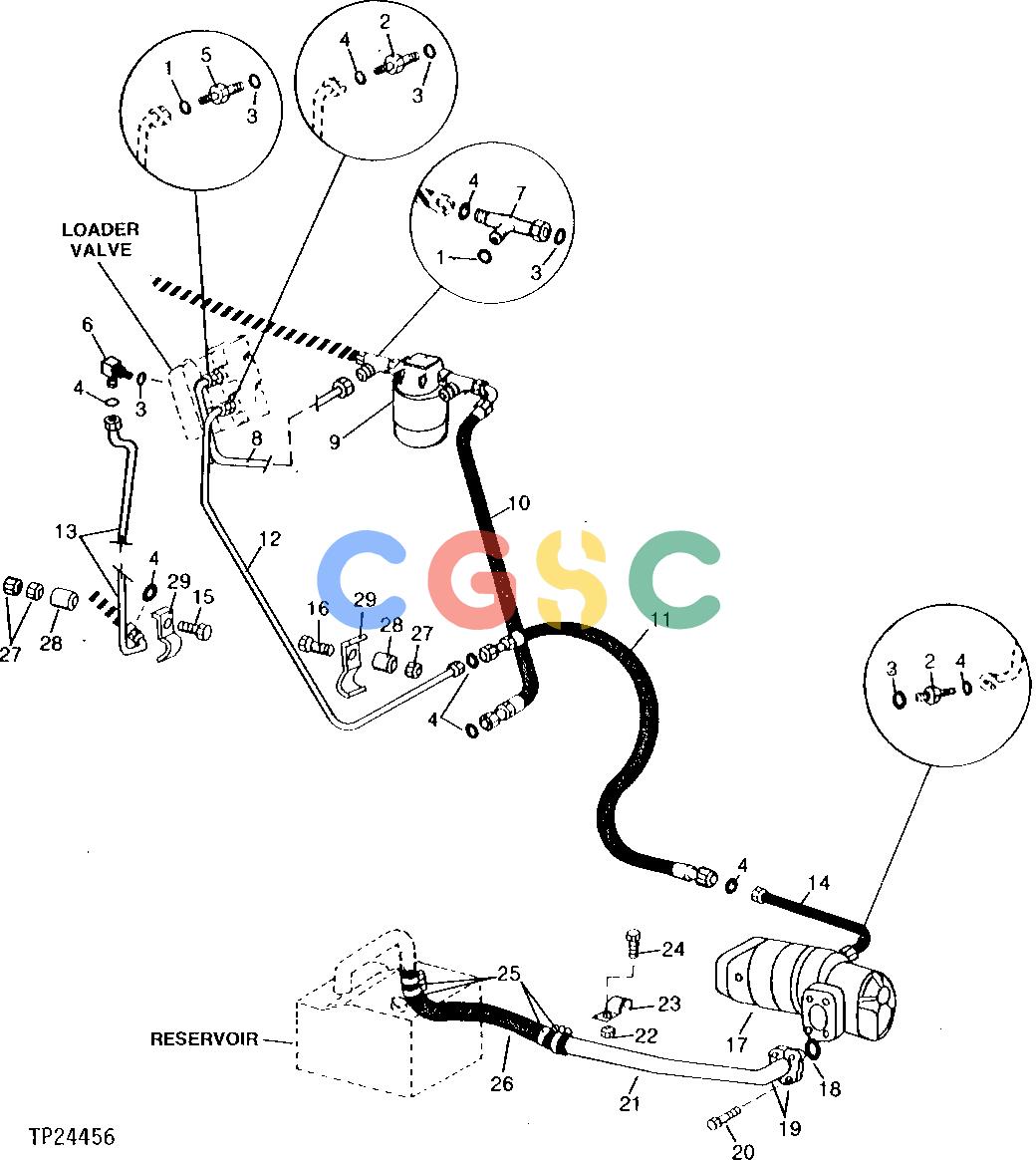

Pos.	Part No	Qty	Parts name	Comments
1.	T77858	[2]	O-Ring
2.	38H1164	[2]	Adapter Fitting
3.	R29936	[6]	O-Ring
4.	T76938	[8]	O-Ring
5.	38H1194	[1]	Adapter Fitting
6.	38H1037	[1]	Elbow Fitting	90°
7.	38H1410	[2]	Tee Fitting
8.	AT113897	[1]	Oil Line
9.	AT106520	[1]	Oil Filter	(SUB AT129523)
9.	AT129523	[1]	Filter
10.	AT101610	[1]	Hydraulic Hose - Fabricate	1-7/16" X 474 MM (18-3/4") X 1-7/16"
11.	AT101210	[1]	Hydraulic Hose - Fabricate	1-7/16" X 890 MM (35") X 1-7/16"
12.	AT113896	[1]	Oil Line
13.	AT113995	[1]	Oil Line
14.	AT124377	[1]	Hydraulic Hose - Fabricate
15.	19M7572	[1]	Cap Screw	M10 X 45
16.	19M7550	[1]	Cap Screw	M10 X 35
17.	AT114078	[1]	Hydraulic Pump	(SUB AT114134 AND (2) 19M7788)
17.	AT114134	[1]	Hydraulic Pump
18.	N131838	[1]	O-Ring
19.	R29867	[2]	Flange Fitting
20.	19H1970	[4]	Cap Screw	7/16" X 1-1/4"
21.	AT113879	[1]	Oil Line
22.	14M7296	[1]	Flange Nut	M10
23.	T35829	[1]	Clamp
24.	19M7784	[1]	Screw	M10 X 20
25.	AR40418	[4]	Hose Clamp	(SUB FOR AR65294, THIS APPLICATION)
26.	T100556	[1]	Hydraulic Hose
27.	14M7296	[3]	Flange Nut	M10
28.	28H2481	[2]	Spacer	0.423" X 0.675" X 1/2"
29.	U43641	[2]	Clamp
