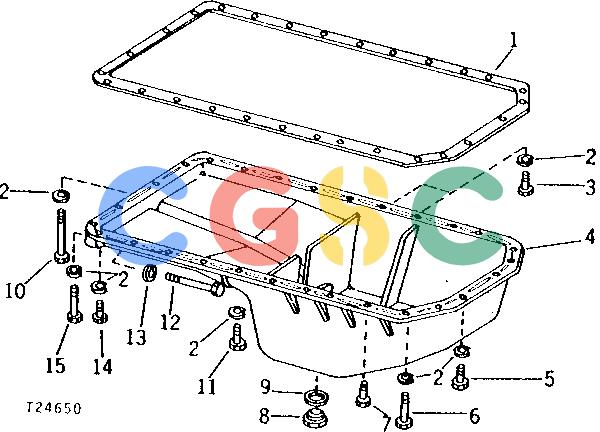

约翰迪尔零件查询401C - BACKHOE, LOADER OIL PAN (HEAVY-DUTY CAST) [01B02]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T22720
|
[1] |
Gasket
|
|
| 2. |
12H304
|
[26] |
Lock Washer
|
|
| 3. |
19H3267
|
[1] |
Cap Screw
|
|
| 4. |
T20163
|
[1] |
Oil Pan
|
|
| 5. |
19H2633
|
[5] |
Cap Screw
|
|
| 6. |
19H3065
|
[1] |
Cap Screw
|
|
| 7. |
T20309
|
[2] |
Wheel Bolt
|
|
| 8. |
M1746T
|
[1] |
Drain Plug
|
|
| 9. |
T13213
|
[1] |
Washer
|
|
| 10. |
19H3404
|
[2] |
Cap Screw
|
|
| 11. |
19H3239
|
[15] |
Cap Screw
|
|
| 11. |
19H1732
|
[13] |
Cap Screw
|
|
| 12. |
19H1439
|
[2] |
Cap Screw
|
|
| 13. |
12H294
|
[2] |
Lock Washer
|
|
| 14. |
19H3385
|
[1] |
Cap Screw
|
|
| 15. |
19H3031
|
[2] |
Cap Screw
|
|
