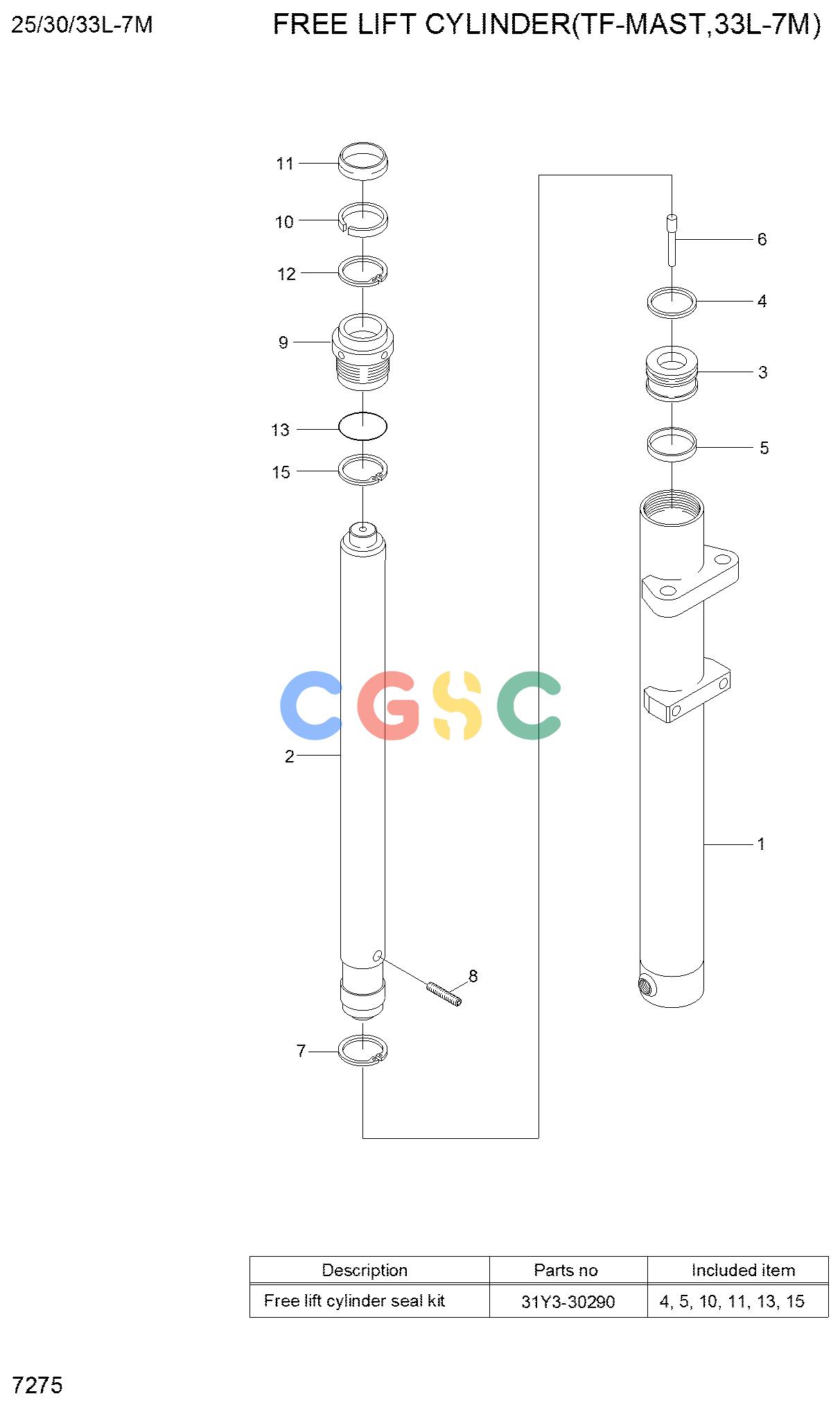

现代零件查询25/30/33L-7M FREE LIFT CYLINDER (TF-MAST, 33L-7M)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
33HA-07601
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07611
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07621
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07631
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07641
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07651
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07661
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07671
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07681
|
[1] |
FREE LIFT CYLINDER
|
|
| . |
33HA-07691
|
[1] |
FREE LIFT CYLINDER
|
|
| 1. |
XKCD-00049
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00054
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00056
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00058
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00060
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00062
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00064
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00066
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00068
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-00070
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-00050
|
[1] |
ROD
|
|
| 2. |
XKCD-00055
|
[1] |
ROD
|
|
| 2. |
XKCD-00057
|
[1] |
ROD
|
|
| 2. |
XKCD-00059
|
[1] |
ROD
|
|
| 2. |
XKCD-00061
|
[1] |
ROD
|
|
| 2. |
XKCD-00063
|
[1] |
ROD
|
|
| 2. |
XKCD-00065
|
[1] |
ROD
|
|
| 2. |
XKCD-00067
|
[1] |
ROD
|
|
| 2. |
XKCD-00069
|
[1] |
ROD
|
|
| 2. |
XKCD-00170
|
[1] |
ROD
|
|
| 3. |
XKCD-00051
|
[1] |
PISTON
|
|
| K4. |
Y430-085022
|
[1] |
SEAL-PISTON
|
|
| K5. |
Y300-085100
|
[1] |
RING-WEAR
|
|
| 6. |
31YC-99F80
|
[1] |
VALVE-CHECK
|
|
| 6. |
XKCD-01646
|
[1] |
VALVE-CHECK
|
|
| 7. |
31YC-99F90
|
[1] |
RING-RETAINING
|
|
| 8. |
S113-080084
|
[1] |
SCREW-SET,HEX
|
|
| 9. |
XKCD-00053
|
[1] |
GLAND
|
|
| K10. |
XKCD-00171
|
[1] |
SEAL-ROD
|
|
| K11. |
Y110-060011
|
[1] |
WIPER-DUST
|
|
| 12. |
Y190-074000
|
[1] |
RING-SNAP
|
|
| K13. |
S632-080004
|
[1] |
O-RING
|
|
| K15. |
XKCD-00193
|
[1] |
RING-BACK UP
|
|
| K. |
31Y3-30290
|
[1] |
SEAL KIT
|
|
