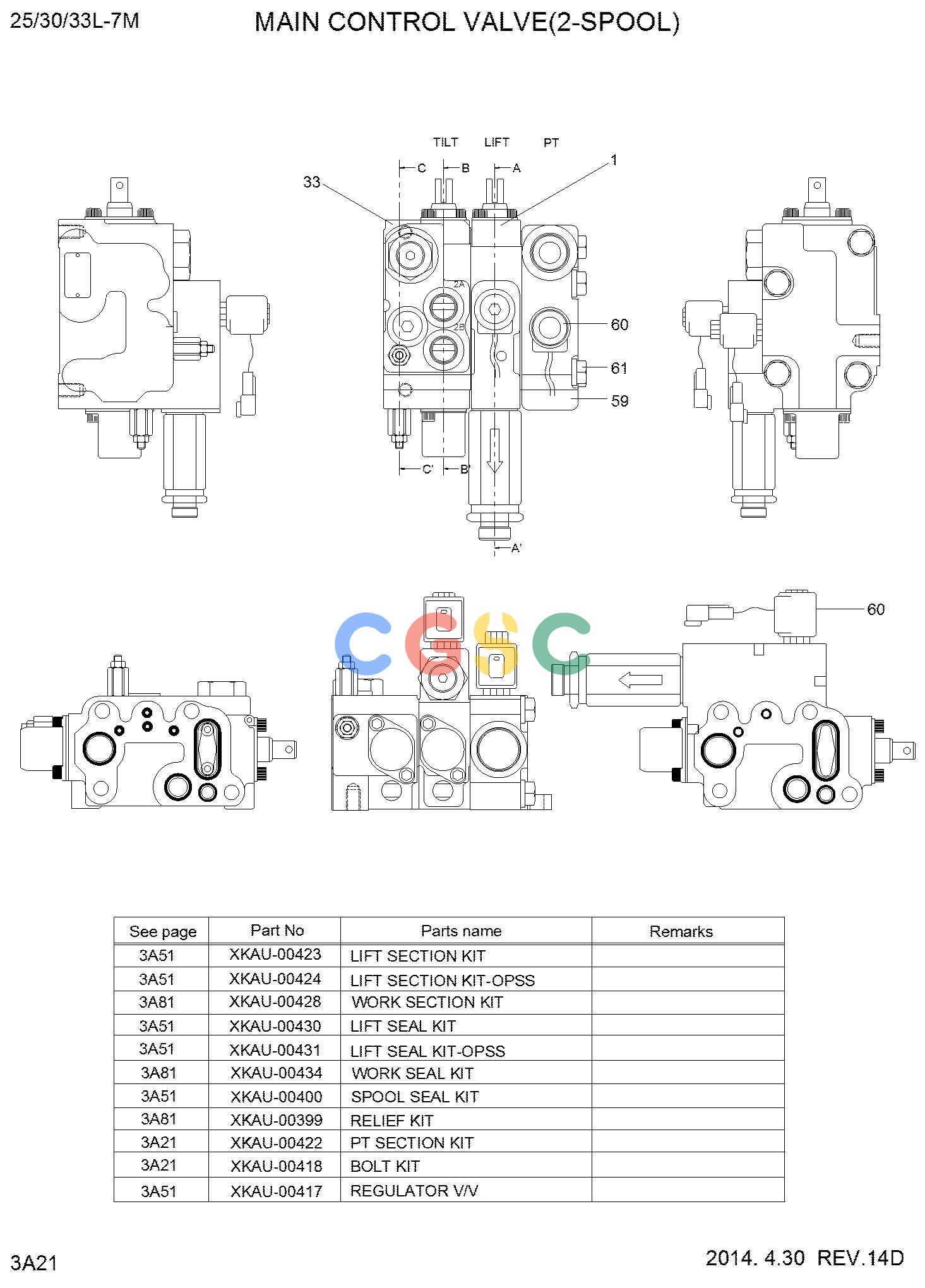

现代零件查询25/30/33L-7M MAIN CONTROL VALVE(2-SPOOL,33L-7M)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
310 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31HN-02051
|
[1] |
MCV-2SPL(NON-OPSS)
|
|
| . |
31HN-02551
|
[1] |
MCV-2SPL(OPSS)
|
|
| N1. |
@
|
[1] |
BLOCK-LIFT
|
|
| N33. |
402001001
|
[1] |
BLOCK-WORK
|
|
| 59. |
XKAU-00271
|
[1] |
BLOCK-PT,SOL
|
|
| 60. |
XKAU-00272
|
[1] |
SOLENOID VALVE
|
|
| 61. |
XKAU-00271
|
[1] |
BLOCK-PT,SOL
|
|
| K. |
XKAU-00423
|
[1] |
LIFT SECTION KIT(NON-OPSS)
|
|
| K. |
XKAU-00424
|
[1] |
LIFT SECTION KIT(OPSS)
|
|
| K. |
XKAU-00428
|
[1] |
WORK(TILT) SECTION KIT
|
|
| K. |
XKAU-00430
|
[1] |
LIFT SEAL KIT(NON-OPSS)
|
|
| K. |
XKAU-00431
|
[1] |
LIFT SEAL KIT(OPSS)
|
|
| K. |
XKAU-00434
|
[1] |
WORK(TILT) SEAL KIT
|
|
| K. |
XKAU-00400
|
[1] |
SPOOL SEAL KIT
|
|
| K. |
XKAU-00399
|
[1] |
RELIEF VALVE KIT
|
|
| K. |
XKAU-00422
|
[1] |
PT SECTION KIT(NON-POSS)
|
|
| K. |
XKAU-00418
|
[1] |
TIE BOLT KIT(2-SPL)
|
|
| K. |
XKAU-00417
|
[1] |
FLOW REGULATOR
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
