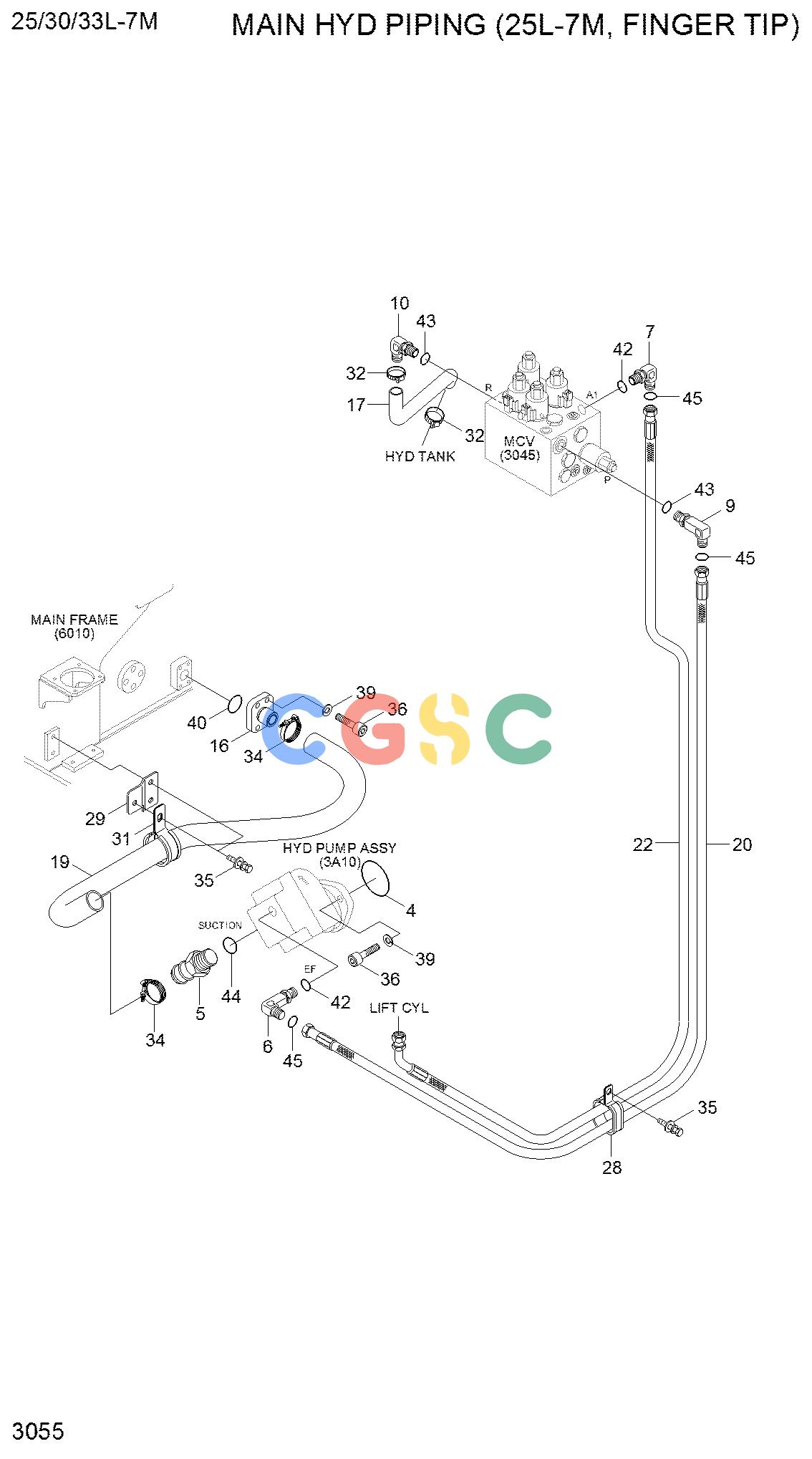

现代零件查询25/30/33L-7M MAIN HYD PIPING(25L-7M, FINGER TIP)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
431 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
Y172-014001
|
[1] |
O-RING
|
|
| 5. |
35HF-20141
|
[1] |
CONNECTOR
|
|
| 6. |
31HA-20150
|
[1] |
ELBOW-90D,ORFS
|
|
| 7. |
31FG-20070
|
[1] |
ELBOW-90
|
|
| 9. |
35HF-20220
|
[1] |
ELBOW-90,SWIVEL.ORFS
|
|
| 10. |
35HF-20250
|
[1] |
ELBOW-90D
|
|
| 16. |
31HM-20010
|
[1] |
CONNECTOR
|
|
| 17. |
35HF-20210
|
[1] |
RUBBER HOSES-DISCHARGE
|
|
| 19. |
31HN-20130
|
[1] |
RUBBER HOSES-OIL SUCTION
|
|
| 20. |
35HF-20240
|
[1] |
HOSE ASSY-ORFS,THD(0X0)
|
|
| 22. |
P923-104021
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 28. |
35HH-20090
|
[1] |
CLAMP-HOSE
|
|
| 29. |
31HN-20030
|
[1] |
BRACKET
|
|
| 31. |
37HG-20102
|
[1] |
CLAMP-HOSE
|
|
| 32. |
S572-380006
|
[2] |
CLAMP-HOSE WIRE TYPE
|
|
| 34. |
35HG-20100
|
[2] |
CLAMP-BAND,T-BOLT
|
|
| 35. |
S035-082036
|
[4] |
BOLT-W/WASHER
|
|
| 36. |
S109-100306
|
[6] |
BOLT-SOCKET
|
|
| 39. |
S411-100006
|
[6] |
WASHER-SPRING
|
|
| 40. |
S631-035004
|
[1] |
O-RING
|
|
| 42. |
S611-019001
|
[2] |
O-RING
|
|
| 43. |
S611-023001
|
[2] |
O-RING
|
|
| 44. |
S611-030001
|
[1] |
O-RING
|
|
| 45. |
S621-016001
|
[3] |
O-RING
|
|
