约翰迪尔零件查询401C - BACKHOE, LOADER FRONT PLATE, HOOD AND GRILLE ASSEMBLY [01J14]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 476 次

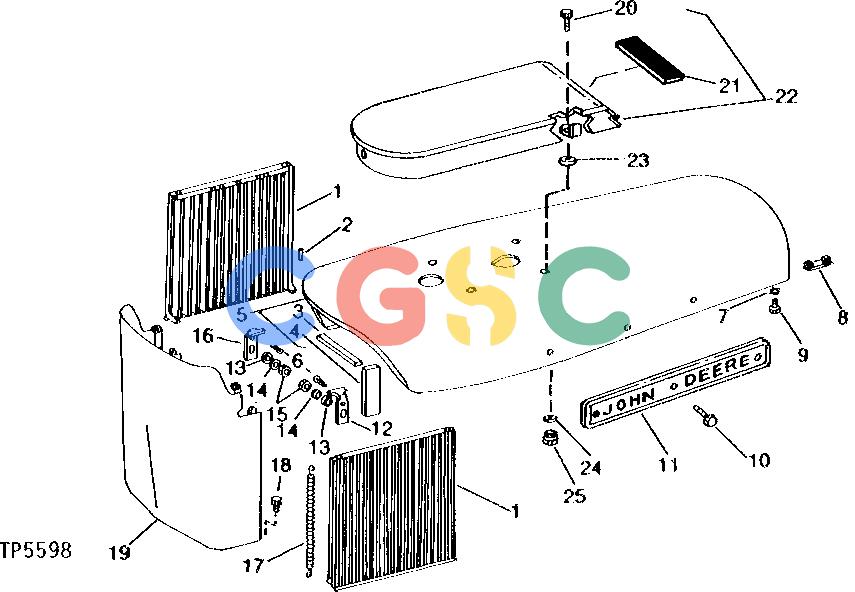

Pos.	Part No	Qty	Parts name	Comments
1.	AR72950	[2]	Grille	(SUB FOR AT35236)
2.	34H340	[4]	Spring Pin	5/16" X 13/16"
3.	T21491	[2]	Isolator	RADIATOR TOP
4.	T21490	[2]	Pad	RADIATOR SIDE
5.	AT34902	[1]	Hood
5.	AT57448	[1]	Hood	(SUB AR64003 AND (2) R55211)
5.	AR64003	[1]	Hood
6.	11M7012	[2]	Cotter Pin	3.200 X 16 MM
7.	12H331	[4]	Lock Washer	3/8"
8.	T25291	[2]	Reinforcement
8.	R55211	[2]	Plate
9.	19H1648	[4]	Cap Screw	3/8" X 3/4"
10.	T10671	[6]	Cap Screw
11.	JD5645	[2]	Label	(SUB FOR T33460 AND T42511)
12.	R59519	[1]	Latch	(SUB FOR R49524)
13.	24H1302	[2]	Washer	13/32" X 11/16" X 0.035"
14.	12H304	[2]	Lock Washer	3/8"
15.	14H812	[2]	Nut	3/8"
16.	R59519	[1]	Latch	(SUB FOR R49524)
17.	R26858	[2]	Spring
18.	19H3385	[8]	Cap Screw	1/2" X 1-1/8"
19.	AT36272	[1]	Plate
20.	19H3467	[4]	Screw	5/16" X 1"
21.	T27098	[1]	Isolator
22.	AT69038	[1]	Shield	(SUB AT73571)
23.	24H1136	[4]	Washer	11/32" X 11/16" X 0.065", (SUB FOR T69893)
24.	24H1136	[4]	Washer	11/32" X 11/16" X 0.065"
25.	T16464	[4]	Lock Nut
