约翰迪尔零件查询401C - BACKHOE, LOADER BATTERY CABLES AND STARTING MOTOR [02B05]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 369 次

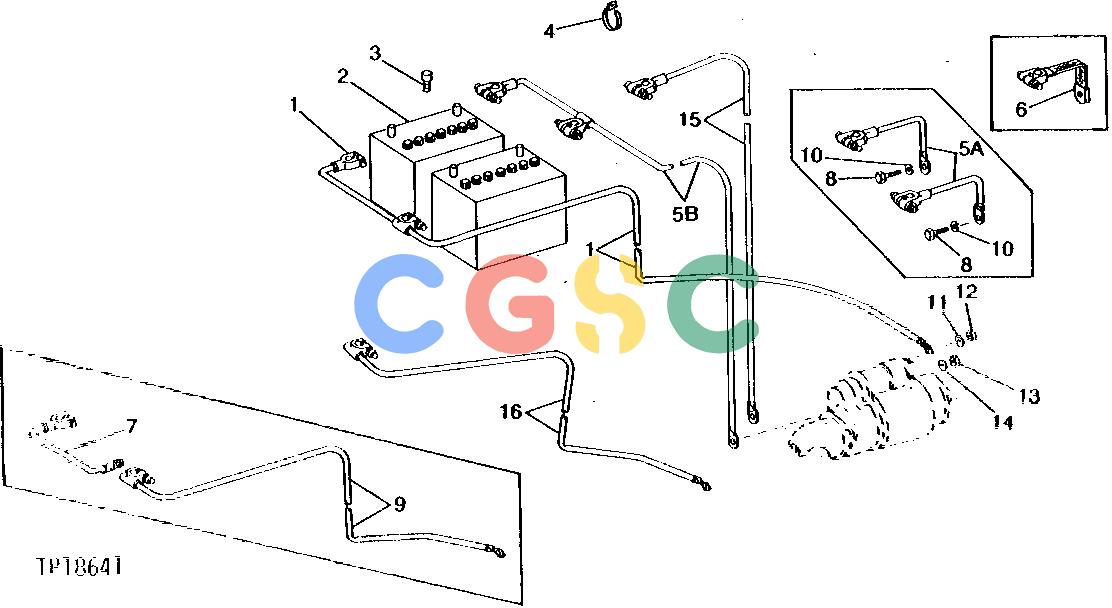

Pos.	Part No	Qty	Parts name	Comments
1.	RE14512	[1]	Battery Cable
2.	AT29158	[1]	Dry Charged Battery	12-VOLT, 385 COLD CRANKING AMPERES AT -18°C (0°F), 110-MINUTE RESERVE CAPACITY AT 25 AMPERES
2.	TY21764	[2]	Dry Charged Battery	12-VOLT 370 COLD CRANKING AMAPERS AT -18°C (0°F),106-MINUTE RESERVE CAPACITY AT 25 AMAPERES AT 27°C (80°F) (SUB FOR AR67338, TY6092 AND TY21730)
3.	AR61868	[12]	Cap
4.	R44302	[1]	Tie Band
5A.	AR67453	[1]	Battery Cable	(SUB RE14513)
5A.	AR67453	[2]	Battery Cable	(SUB RE14513)
5B.	RE14513	[1]	Battery Cable
6.	AT18702	[1]	Ground Cable
7.	T21889	[1]	Battery Cable
8.	19H2021	[2]	Cap Screw	3/8" X 5/8"
9.	AR103525	[1]	Battery Cable	(SUB FOR T21888, THIS APPLICATION)
9.	AR103525	[2]	Battery Cable	(SUB FOR T21888, THIS APPLICATION)
10.	12H304	[2]	Lock Washer	3/8"
11.	12H304	[1]	Lock Washer	3/8"
12.	14H732	[1]	Nut	3/8"
13.	14H605	[1]	Nut	0.164"
14.	12H315	[1]	Lock Washer	0.164"
15.	AT14764	[1]	Battery Cable
16.	AR103525	[1]	Battery Cable
