约翰迪尔零件查询401C - BACKHOE, LOADER 3/4-YARD LOADER BUCKET [02C19]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 833 次

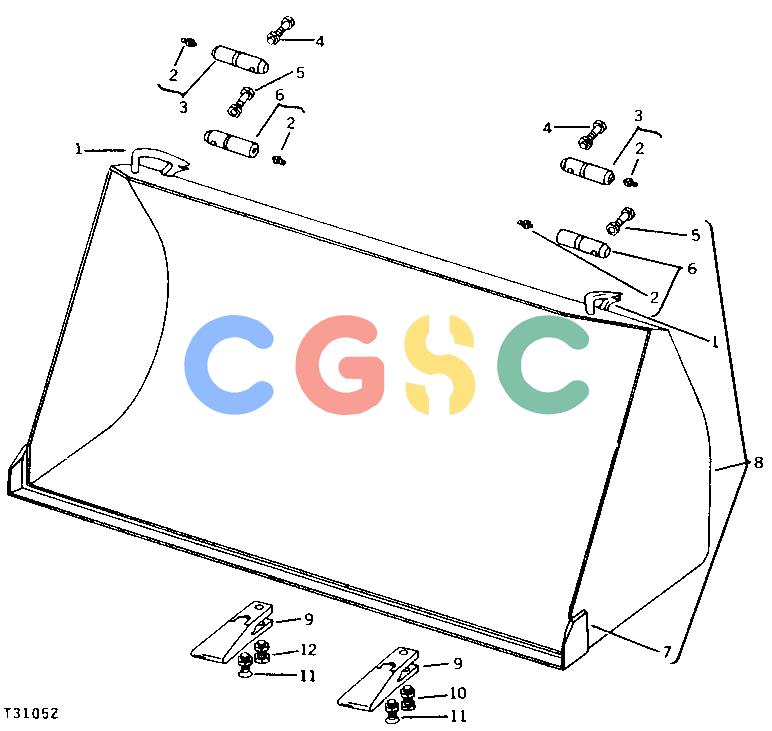

Pos.	Part No	Qty	Parts name	Comments
1.	U11773	[2]	Hook
2.	JD7759	[4]	Lubrication Fitting	1/8", STRAIGHT
3.	AU11099	[2]	Pin Fastener	LINK TO BUCKET
4.	19H2855	[2]	Cap Screw	3/8" X 3-1/4"
4.	T11234	[2]	Lock Nut	3/8"
5.	19H3520	[2]	Cap Screw	1/2" X 3-1/4"
5.	BP12214	[2]	Lock Nut	1/2", (SUB FOR U12622)
6.	AU11942	[2]	Pin Fastener
7.	T105892	[1]	Cutting Edge	(SUB FOR U40675)
7.	PBU40675	[1]	Cutting Edge	WITH HOLES - ALTERNATE FOR T105892
7.	T103141	[2]	Cutting Edge	AUXILIARY - FOR USE WITH PBU40675 - ALSO REQUIRES T103142, (USE WITH (4) 09H1764, (4) 24M7241 AND (4) 14H1039)
7.	T103142	[1]	Cutting Edge	AUXILIARY - FOR USE WITH PBU40675 - ALSO REQUIRES (2) T103141, (USE WITH (4) 09H1764, (4) 24M7241 AND (4) 14H1039)
8.	........	[1]	Loader Bucket	(INCLUDES (2) AU11942 AND NECESSARY HARDWARE) ( BU40111 NO LONGER AVAILABLE)
9.	U12910	[8]	Tooth	(USE IF AVAILABLE) (SUB U41344 AND TF13 OR U13449 AND 34M7070) (3/4-YARD BUCKET)
10.	19H1805	[2]	Cap Screw	1/2" X 2-1/4"
10.	H32811	[2]	Lock Nut	1/2", (SUB FOR U14502)
11.	10H1238	[8]	Bolt	1/2" X 2-3/4" NO. 3, 1/2" X 2-3/4"
11.	H32811	[8]	Lock Nut	1/2", (SUB FOR U14502)
12.	19H2993	[6]	Cap Screw	1/2" X 1-1/2"
12.	H32811	[6]	Lock Nut	1/2", (SUB FOR U14502)
