约翰迪尔零件查询410 - BACKHOE, LOADER ENGINE OIL PUMP [01C07]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 518 次

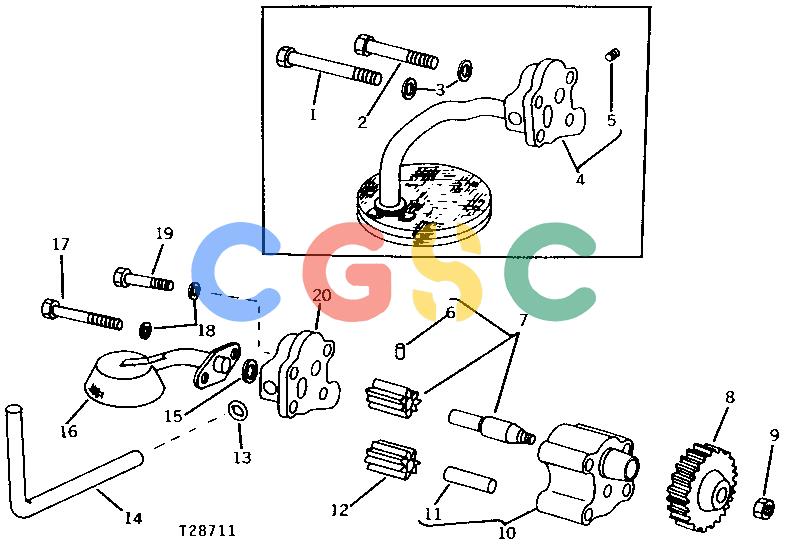

Pos.	Part No	Qty	Parts name	Comments
1.	19H3445	[1]	Cap Screw	3/8" X 3-3/4"
2.	R57059	[3]	Cap Screw
3.	12H304	[4]	Lock Washer	3/8"
4.	AT24254	[1]	Cover	(SUB RE55345 AND R113752)
5.	15H560	[1]	Pipe Plug	1/16"
6.	34H280	[1]	Spring Pin	3/16" X 7/8", (SUB FOR M3853T, THIS APPLICATION)
7.	AT18126	[1]	Drive Shaft	WITH GEAR AND PIN
7.	AR62978	[1]	Pinion	(B)
8.	T20298	[1]	Gear	(33 TEETH)
9.	14H826	[1]	Nut	1/2"
10.	AT32606	[1]	Housing	WITH IDLER SHAFT, (MARKED T20078) (SUB RE55343 AND R113752) (FOR UNITS BELOW ENGINE SERIAL NO. 214507, ALSO ORDER R83169 RELIEF VALVE, T27658 SPRING AND T27657 PLUG)
10.	AR62979	[1]	Housing	(B) (MARKED R54615) (SUB RE55343 AND R113752)
11.	T20091	[1]	Dowel Pin
12.	T20097	[1]	Gear	(7 TEETH)
12.	R54614	[1]	Gear	(B) (7 TEETH)
13.	R74354	[1]	O-Ring	(A) (B) (SUB FOR R27166, THIS APPLICATION)
14.	T20050	[1]	Oil Tube
15.	R61871	[1]	O-Ring	(A) (B) (SUB FOR A4730R, THIS APPLICATION)
16.	RE36425	[1]	Oil Pump Intake	(A) (B) (SUB FOR AR60701)
17.	R59409	[2]	Cap Screw	(A) (B) (SUB FOR 19H3404, THIS APPLICATION)
18.	12H304	[4]	Lock Washer	(B) 3/8"
19.	R57059	[2]	Cap Screw	(B)
20.	R53382	[1]	Cover	(A) (B)
...	AR67670	[1]	Kit	(SUB RE55345 AND R113752) OIL PUMP PICKUP
...	AR67074	[1]	Oil Pump	(SUB RE55343 AND R113752)
