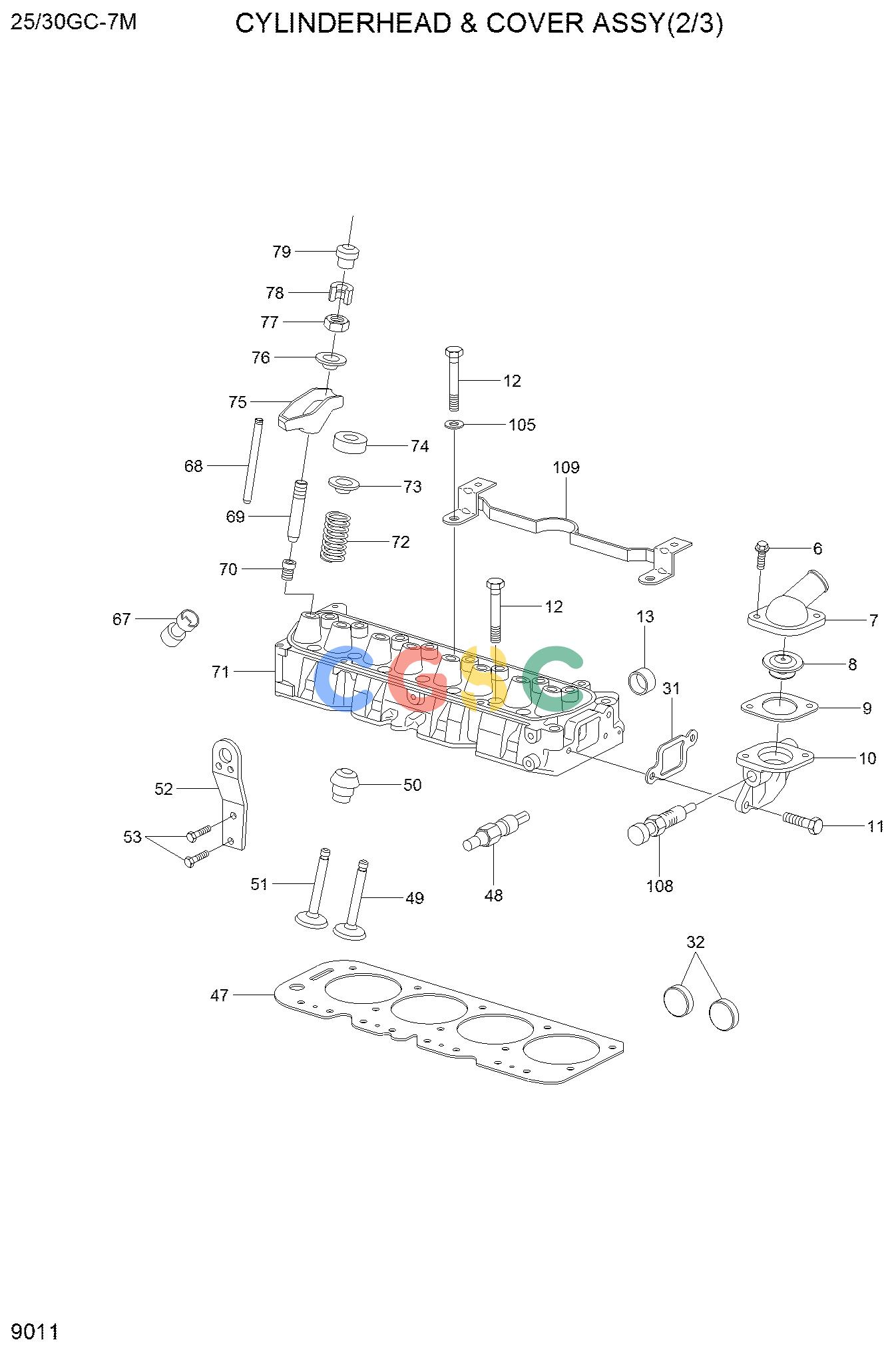

现代零件查询25/30LC-7M CYLINDERHEAD & COVER ASSY(2/3)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
1031 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 6. |
YUCW-00212
|
[3] |
BOLT-DISTRIBUTOR CLAMP
|
|
| 7. |
YUCW-00213
|
[1] |
WATER OUTLET
|
|
| 8. |
YUCW-00214
|
[1] |
THERMOSTAT
|
|
| 9. |
YUCW-00159
|
[1] |
GASKET
|
|
| 10. |
YUCW-00215
|
[1] |
HOUSING-THERMOSTAT
|
|
| 10. |
YUCW-00216
|
[1] |
SENSOR-ENG COOL TEMP
|
|
| 11. |
YUCW-00212
|
[1] |
BOLT-DISTRIBUTOR CLAMP
|
|
| 12. |
YUCW-00217
|
[10] |
BOLT-CYLINDER HEAD
|
|
| 13. |
YUCW-00218
|
[2] |
PLUG-CYLINDER
|
|
| 31. |
YUCW-00219
|
[1] |
GASKET-THERMOSTAT HSG
|
|
| 32. |
YUCW-00220
|
[AR] |
PLUG-ENGINE
|
|
| 47. |
YUCW-00223
|
[1] |
GASKET-CYLINDER HEAD
|
|
| 48. |
YUCW-00015
|
[4] |
PLUG-SPARK
|
|
| 49. |
YUCW-00224
|
[4] |
VALVE-EXHAUST
|
|
| N50. |
@
|
[AR] |
INSERT-VLV PUSH ROD
|
|
| 51. |
YUCW-00225
|
[4] |
INTAKE VALVE
|
|
| 52. |
YUCW-00226
|
[1] |
ENGINE LIFT FRONT BRACKET
|
|
| 53. |
09439905
|
[8] |
ENG LIFT FRT BRACKET BOLT
|
|
| 67. |
YUCW-00238
|
[8] |
VALVE LIFTER
|
|
| 68. |
YUCW-00239
|
[8] |
VALVE P/ROD
|
|
| 69. |
YUCW-00240
|
[8] |
VALVE RKR ARM BALL
|
|
| 69. |
YUCW-00241
|
[8] |
VALVE RKR ARM BALL
|
|
| N70. |
@
|
[8] |
SEAT-VALVE
|
|
| 71. |
YUCW-00242
|
[1] |
CYLINDER HEAD
|
|
| 72. |
YUCW-00243
|
[8] |
VALVE SPRING
|
|
| 73. |
YUCW-00025
|
[8] |
VALVE SPRING CAP
|
|
| N74. |
@
|
[8] |
LOCK-VALVE
|
|
| 75. |
YUCW-00244
|
[8] |
VLV RKR ARM KIT
|
|
| 76. |
YUCW-00245
|
[8] |
VLV RKR ARM BALL
|
|
| 77. |
YUCW-00246
|
[8] |
VLV RKR ARM NUT
|
|
| N78. |
@
|
[8] |
SHIM
|
|
| N79. |
@
|
[1] |
SCREW-ADJUST
|
|
| 105. |
YUCW-00253
|
[1] |
WASHER
|
|
| 108. |
YUCW-00216
|
[1] |
SENSOR-ENG COOL TEMP
|
|
| 109. |
YUCW-00254
|
[1] |
BRACKET
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
