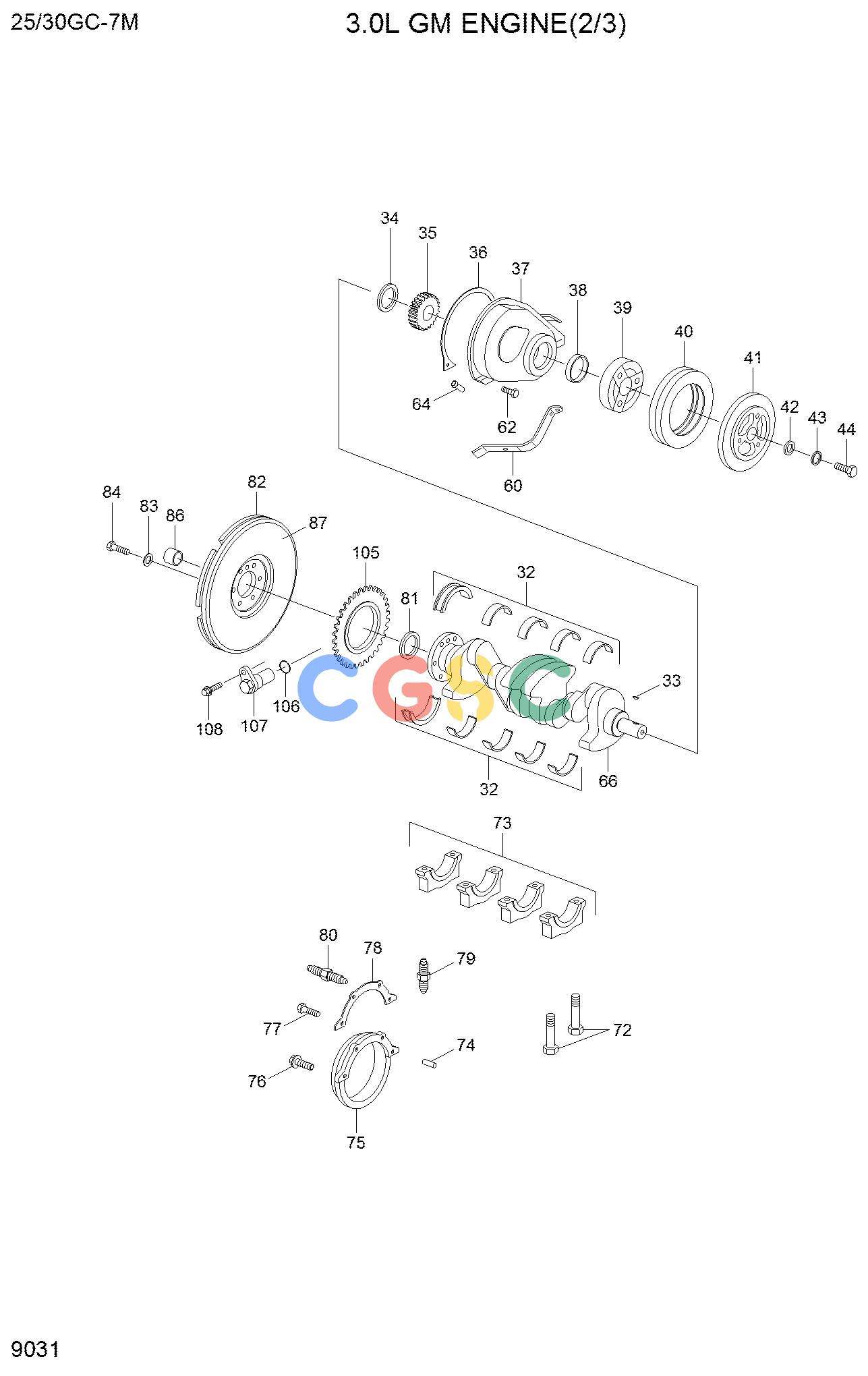

现代零件查询25/30LC-7M 3.0L GM ENGINE(2/3)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
591 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 32. |
YUCW-00296
|
[1] |
CR/SHF BEARING KIT
|
|
| 33. |
YUCW-00286
|
[1] |
CM/SHF GR KEY
|
|
| 34. |
YUCW-00195
|
[1] |
CR/SHF FRONT OIL SEAL
|
|
| 35. |
YUCW-00297
|
[1] |
CR/SHF GEAR
|
|
| 36. |
YUCW-00298
|
[1] |
FRONT COVER GASKET
|
|
| 37. |
YUCW-00299
|
[1] |
F/COVER
|
|
| N38. |
@
|
[AR] |
ABSORBER
|
|
| N39. |
@
|
[AR] |
HUB
|
|
| N40. |
@
|
[AR] |
PULLEY
|
|
| 41. |
YUCW-00300
|
[1] |
CR/SHF BALANCER
|
|
| N42. |
@
|
[AR] |
ABSORBER
|
|
| 43. |
YUCW-00301
|
[6] |
WASHER
|
|
| 44. |
YUCW-00302
|
[1] |
BOLT
|
|
| N60. |
@
|
[AR] |
REINFORCEMENT-FRT CVR
|
|
| 62. |
YUCW-00284
|
[12] |
BOLT-CM/SHF THR BRG
|
|
| 64. |
YUCW-00316
|
[1] |
CM/SHF CR LUB NOZZLE
|
|
| 66. |
YUCW-00318
|
[1] |
CRANKSHAFT
|
|
| 72. |
YUCW-00323
|
[10] |
CR/SHF BRG CAP BOLT
|
|
| 72. |
YUCW-00323
|
[10] |
CR/SHF BRG CAP BOLT
|
|
| N73. |
@
|
[AR] |
CAP-BEARING, CR/SHF
|
|
| 74. |
YUCW-00038
|
[1] |
PIN
|
|
| 75. |
YUCW-00324
|
[1] |
OIL SEAL HOUSING
|
|
| 76. |
YUCW-00325
|
[2] |
BOLT
|
|
| 77. |
YUCW-00326
|
[2] |
BOLT
|
|
| 78. |
YUCW-00078
|
[1] |
OIL SEAL HSG GASKET
|
|
| 79. |
YUCW-00327
|
[1] |
STUD
|
|
| 80. |
YUCW-00193
|
[2] |
OIL PAN STUD
|
|
| 81. |
YUCW-00328
|
[1] |
REAR OIL SEAL
|
|
| 82. |
YUCW-00064
|
[1] |
RING GEAR
|
|
| 83. |
YUCW-00301
|
[1] |
WASHER
|
|
| 84. |
YUCW-00329
|
[6] |
FLYWHEEL BOLT
|
|
| 86. |
YUCW-00331
|
[1] |
CLU PILOT BEARING
|
|
| 87. |
YUCW-00332
|
[1] |
FLYWHEEL
|
|
| N105. |
@
|
[AR] |
RING-RELUCTOR
|
|
| N106. |
@
|
[AR] |
SEAL
|
|
| 107. |
YUCW-00340
|
[1] |
CR/SHF POSN SENSOR
|
|
| 108. |
YUCW-00341
|
[1] |
CR/SHF POSN SENSOR BOLT
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
