约翰迪尔零件查询410 - BACKHOE, LOADER GRILLE HOUSING AND HOOD [02B03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 357 次

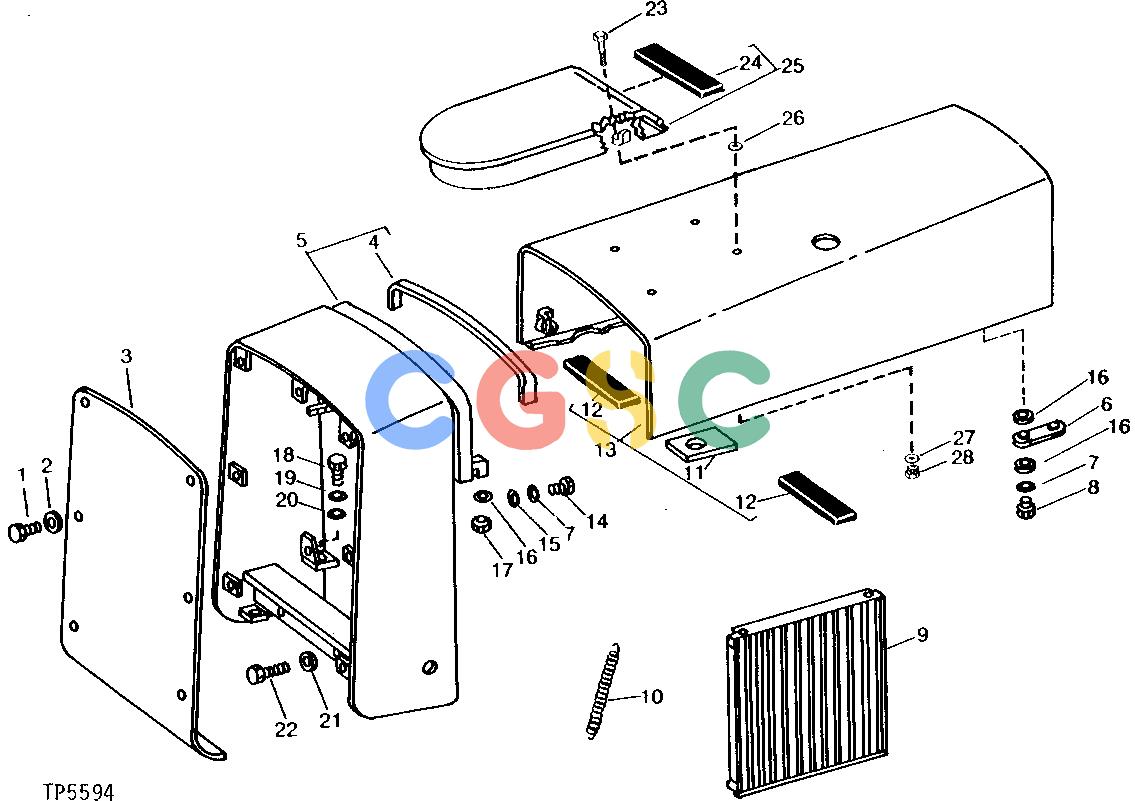

Pos.	Part No	Qty	Parts name	Comments
1.	19H1895	[8]	Cap Screw	1/2" X 3/4"
2.	24H1625	[8]	Washer	17/32" X 1" X 0.120"
3.	T33610	[1]	Plate
4.	T31647	[1]	Pad
5.	AT30726	[1]	Housing
6.	T25291	[2]	Reinforcement
7.	12H304	[4]	Lock Washer	3/8"
8.	19H1648	[2]	Cap Screw	3/8" X 3/4"
9.	AR72950	[2]	Grille	(SUB FOR AT35236)
10.	R26858	[2]	Spring
11.	T31651	[1]	Pad
12.	T31650	[2]	Pad
13.	AT30728	[1]	Hood	WITH PACKINGS (WHEN EQUIPPED WITH CANOPY, SUB AT37779 HOOD, T38965 MUFFLER EXTENSION, AR45917 CLAMP WITH SCREW AND AR56783 MUFFLER EXHAUST COVER) (WHEN NOT EQUIPPED WITH CANOPY, SUB AT37779 HOOD, AR45917 CLAMP WITH SCREW, AR56783 MUFFLER EXHAUST COVE
13.	AT37779	[1]	Hood	(SUB FOR AT65888)
14.	19H2284	[2]	Cap Screw	3/8" X 7/8"
15.	24M7101	[2]	Washer	11 X 34 X 3 MM
16.	24H1305	[6]	Washer	13/32" X 13/16" X 0.065"
17.	T16464	[2]	Lock Nut	(SUB FOR BP12232)
18.	19H2473	[2]	Cap Screw	1/2" X 1-3/4"
19.	24H1111	[2]	Washer	17/32" X 1-1/16" X 0.090"
20.	24H1341	[2]	Washer	17/32" X 15/16" X 0.060"
21.	12H236	[2]	Lock Washer	3/4"
22.	19H2431	[2]	Cap Screw	3/4" X 2-1/4", (SUB FOR 19H1782)
23.	19H3467	[4]	Screw	5/16" X 1"
24.	T27098	[1]	Isolator
25.	AT69038	[1]	Shield	(SUB AT73571)
26.	24H1136	[4]	Washer	11/32" X 11/16" X 0.065", (SUB FOR T69893)
27.	24H1136	[4]	Washer	11/32" X 11/16" X 0.065"
28.	T16464	[4]	Lock Nut
