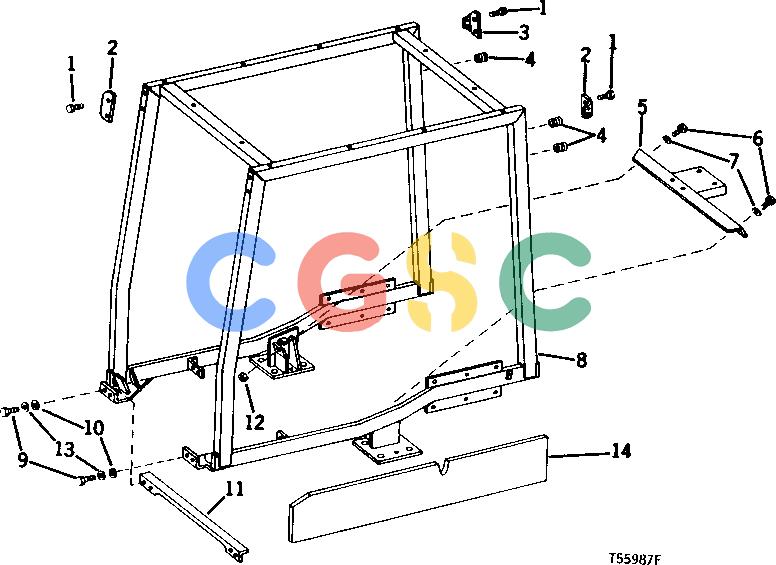

约翰迪尔零件查询410 - BACKHOE, LOADER CANOPY [02B11]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 262 次

Pos.	Part No	Qty	Parts name	Comments
1.	37H29	[8]	Screw	(B) 5/16" X 5/8", (WITHOUT CAB)
2.	T33918	[2]	Bracket	(B) (WITHOUT CAB)
3.	T33917	[2]	Bracket	(B) (WITHOUT CAB)
4.	L1863N	[4]	Grommet	(A)
5.	AT32988	[1]	Bar	(A) (E)
6.	19H3158	[2]	Cap Screw	(A) (E) 3/4" X 2"
7.	12H236	[2]	Lock Washer	(A) (E) 3/4"
8.	AT39013	[1]	Roll-Gard	(SUB FOR AT32984 AND AT37197) (SUB AT54038) (ALSO ORDER AT54040 ROOF MOUNTING PARTS)
8.	AT54038	[1]	Roll-Gard	(A) (E) (WITH T146097 CAUTION LABEL AND T40322 OSHA LABEL)
9.	19H1356	[4]	Cap Screw	(A) (E) 5/8" X 1-3/4"
10.	12H294	[4]	Lock Washer	(A) (E) 5/8"
11.	AT32985	[1]	Support	(A) (E)
12.	14H794	[2]	Nut	(A) (E) 3/4"
13.	24H1370	[4]	Washer	(A) (E) 21/32" X 1-3/8" X 0.134"
14.	AT49552	[1]	Isolator	RIGHT
14.	AT49553	[1]	Isolator	LEFT
...	........	[1]	Frame	( AT35687 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
...	........	[1]	Roof	(SUB FOR AT35686) ( AT54039 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
...	........	[1]	ROPS	( AT54036 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
