约翰迪尔零件查询410 - BACKHOE, LOADER CAB ROOF (SERIAL NO. -388073) [02B20]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410 - BACKHOE, LOADER CAB ROOF (SERIAL NO. -388073) [02B20]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 655 次

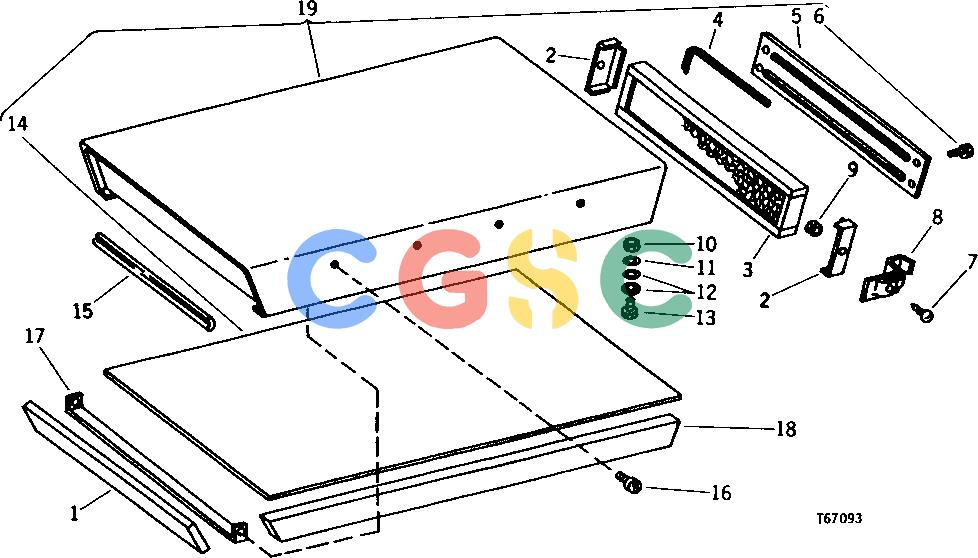

Pos.	Part No	Qty	Parts name	Comments
1.	T51229	[2]	Barrier
2.	T37113	[2]	Bracket	(B) (WITH PRESSURIZER)
3.	AN112705	[1]	Filter	(B) (WITH PRESSURIZER)
4.	AT36367	[1]	Weatherstrip	(A) (CUT TO LENGTH) (WITHOUT PRESSURIZER)
5.	T36818	[1]	Plate	(A) (WITHOUT PRESSURIZER)
6.	21H1317	[4]	Screw	(A) 0.190" X 5/8", (WITHOUT PRESSURIZER)
7.	21H1290	[2]	Screw	(B) 0.138" X 1/2", (WITH PRESSURIZER)
8.	AT35921	[2]	Clip	(B) (WITH PRESSURIZER)
9.	14H1026	[2]	Nut	(B) 0.138", (WITH PRESSURIZER)
10.	14H785	[14]	Nut	(A) 5/16"
11.	12H303	[14]	Lock Washer	(A) 5/16"
12.	24H1136	[28]	Washer	(A) 11/32" X 11/16" X 0.065"
13.	19H2127	[14]	Cap Screw	(A) 5/16" X 7/8"
14.	T37615	[1]	Headliner	(A)
15.	AT35920	[1]	Isolator	(A) (CUT TO LENGTH)
16.	21H1304	[8]	Screw	5/16" X 3/4"
17.	T51230	[4]	Channel
18.	T51228	[2]	Barrier
19.	AT37443	[1]	Roof	(SUB FOR AT36365)
...	AT42733	[1]	Cab	(INCLUDES ALL PARTS IDENTIFIED BY (A) ON THIS PAGE AND ALL PARTS ON PAGES 60-9, 60-10, 60-11, 65-5, 65-5A AND AT49552 RIGHT SEALING STRIP AND AT49553 LEFT SEALING STIPR) (SUB FOR AT35586)
...	AT35587	[1]	Blower	(INCLUDES ALL PARTS IDENTIFIED BY (B) ON THIS PAGE AND ALL PARTS ON PAGES 60-13 AND 60-14) (ALSO ORDER AR40420 ALTERNATOR)
