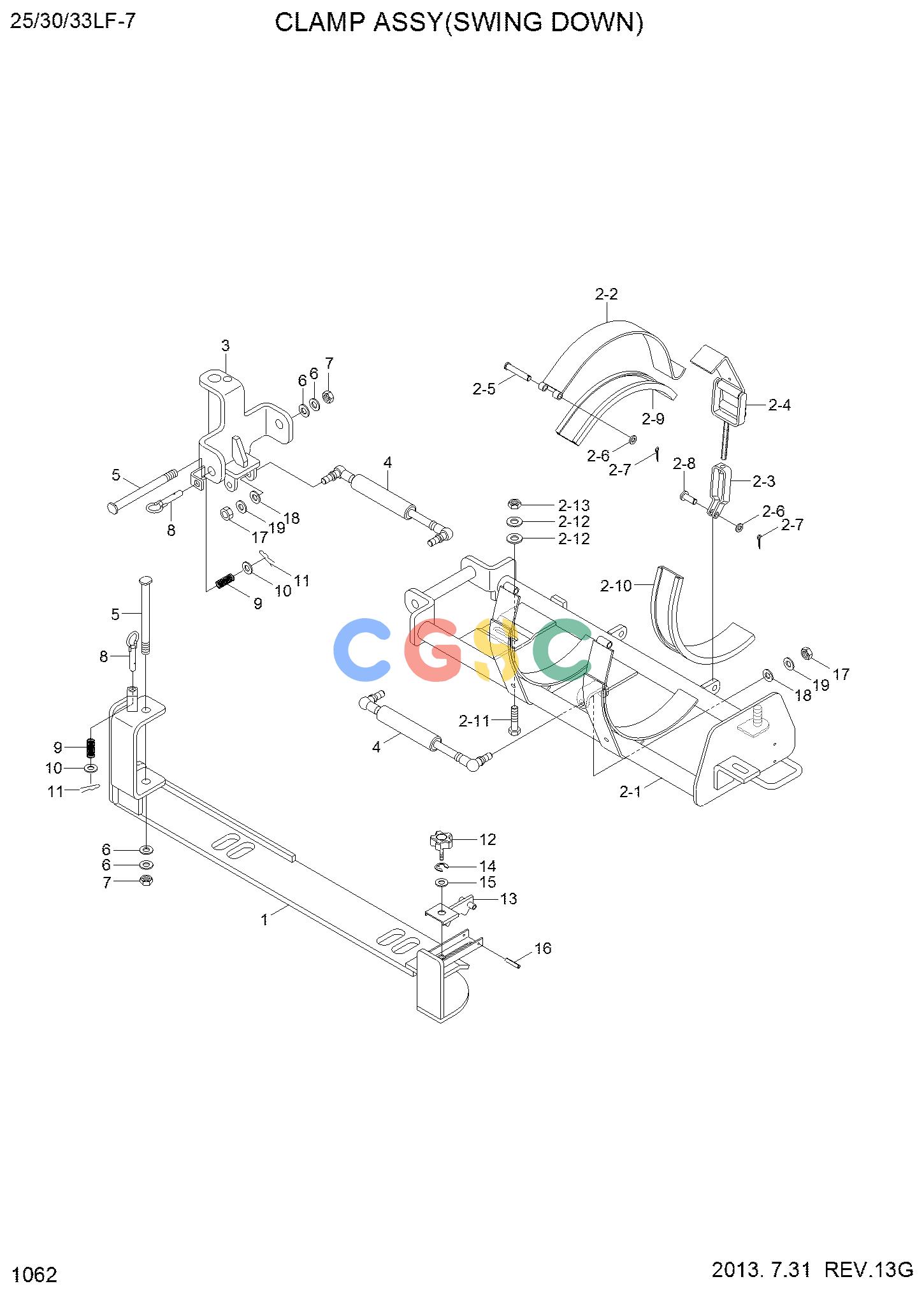

现代零件查询25/30LC-7S FUEL TANK CLAMP ASSY (SWING DOWN)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
498 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
11HF-50302
|
[1] |
CLAMP ASSY(SWING DOWN)
|
|
| 1. |
11HF-50311
|
[1] |
BASE PLATE WA
|
|
| 2. |
11HF-50402
|
[1] |
CLAMP SUB ASSY
|
|
| 2-1. |
11HF-50412
|
[1] |
BRACKET WA
|
|
| 2-2. |
F22130250
|
[1] |
CLAMP BAND-UPPER
|
|
| 2-3. |
F22130150
|
[1] |
YOKE
|
|
| 2-4. |
F22130140
|
[1] |
CLAMP ASSY
|
|
| 2-5. |
F22130160
|
[1] |
PIN
|
|
| 2-6. |
S403-08200B
|
[2] |
WASHER-PLAIN
|
|
| 2-7. |
S461-250182
|
[2] |
PIN-SPLIT
|
|
| 2-8. |
F22130170
|
[1] |
PIN
|
|
| 2-9. |
F22130280
|
[1] |
RUBBER-UPPER
|
|
| 2-10. |
F22130290
|
[1] |
RUBBER-BOTTOM
|
|
| 2-11. |
S017-100556
|
[1] |
BOLT-HEX
|
|
| 2-12. |
S441-10000B
|
[2] |
WASHER-HARDENED
|
|
| 2-13. |
S205-10100B
|
[1] |
NUT-HEX
|
|
| 3. |
11HF-50322
|
[1] |
BRACKET WA
|
|
| 4. |
11HF-50330
|
[2] |
GAS SPRING
|
|
| 5. |
FBC0900390-DA
|
[2] |
BOLT-LP TANK SUPPORT
|
|
| 6. |
S403-161006
|
[4] |
WASHER-PLAIN
|
|
| 7. |
S206-16100B
|
[2] |
NUT-HEX
|
|
| 8. |
FBC0900600
|
[2] |
LOCK PIN
|
|
| 9. |
FBC0900610-01
|
[2] |
SPRING
|
|
| 10. |
S403-12100B
|
[2] |
WASHER-PLAIN
|
|
| 11. |
S501-120002
|
[2] |
PIN-SELF LOCKING
|
|
| 12. |
11FU-50600
|
[1] |
KNOB
|
|
| 13. |
FBC0900120-02
|
[1] |
BRACKET-LP TANK LOCK
|
|
| 14. |
P560-070006
|
[1] |
RETAINING RING-E TYPE
|
|
| 15. |
S403-08200B
|
[1] |
WASHER-PLAIN
|
|
| 16. |
S471-400454
|
[1] |
PIN-SPRING
|
|
| 17. |
S205-10100B
|
[4] |
NUT-HEX
|
|
| 18. |
S411-100006
|
[4] |
WASHER-SPRING
|
|
| 19. |
S403-10200B
|
[4] |
WASHER-PLAIN
|
|
